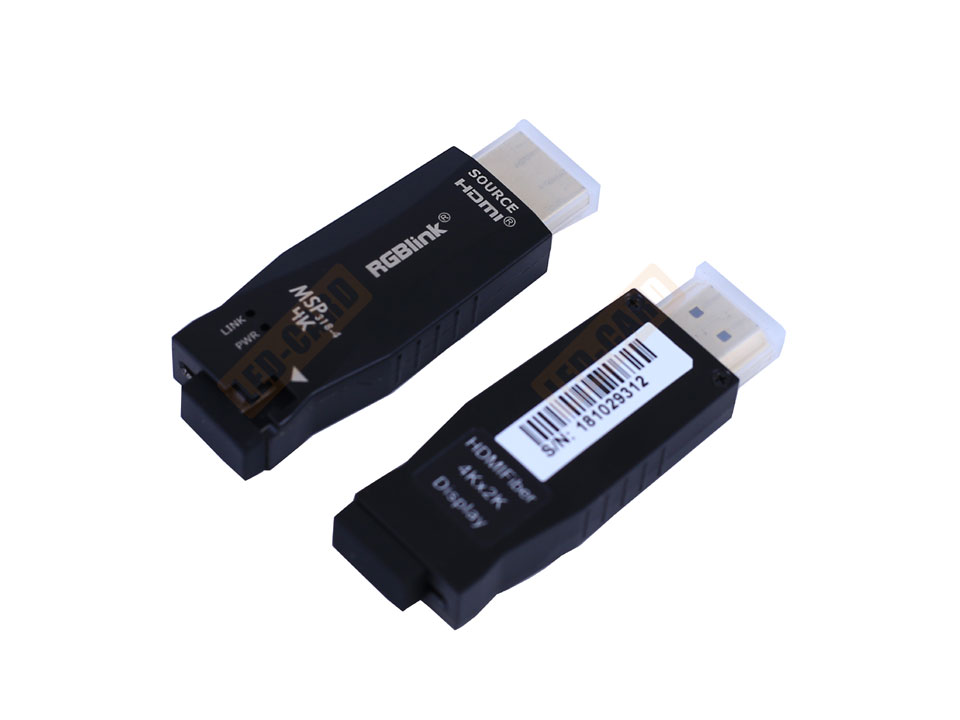

RGBlink MSP 318-4 Transmiter

RGBlink
Vergleich

Optical: The Dynamic Range of Optical Power(Min. 8.5dB)
Structure: Dimension (mm)(660W×20L×10.5H )
Connector: Fiber Connector(1×LC )
HDMI Connector(HDMI Type A)

$547.00

180 vorrätig

Artikelnummer: MSP 318-4 Kategorie:

Beschreibung

RGBlink MSP 318-4 Transmiter

Resolution: PC(3840×[email protected])
HDTV(4K×[email protected])
Components: Laser Diodes in Transmitter(1310nm laser)
Photo Diodes in Receiver(GaAs PIN-PD)
Electricity: Input and Output Signal(TMDS Level)
Data Transfer Rate(Max. 3.4 Gbps)
Maximum Pixel Clock(Frequency 340Mb/s)
Optical Signal Rate(10.2Gb/s)
Maximum Output Jitter in Receiver(Max. 309 ps)
Optical: The Dynamic Range of Optical Power(Min. 8.5dB)
Structure: Dimension (mm)(660W×20L×10.5H )
Connector: Fiber Connector(1×LC )
HDMI Connector(HDMI Type A)
Recommended Fiber(OM3 Multi Mode Fiber or Single Mode Fiber)
Extend Distance: OM3 Multi Mode Fiber(300m)
Single Mode Fiber(2km)
Single Mode Fiber(20km)
Supply Voltage:- 0.3~+ 6.0V
Operation Temperature:0~70°C
Operation Relative Humidity:5~80*%RH
Storage Temperature:- 40~+ 85°C
Storage Relative Humidity:5~95*%RH

Zusätzliche Information

Gewicht 0.3 kg
