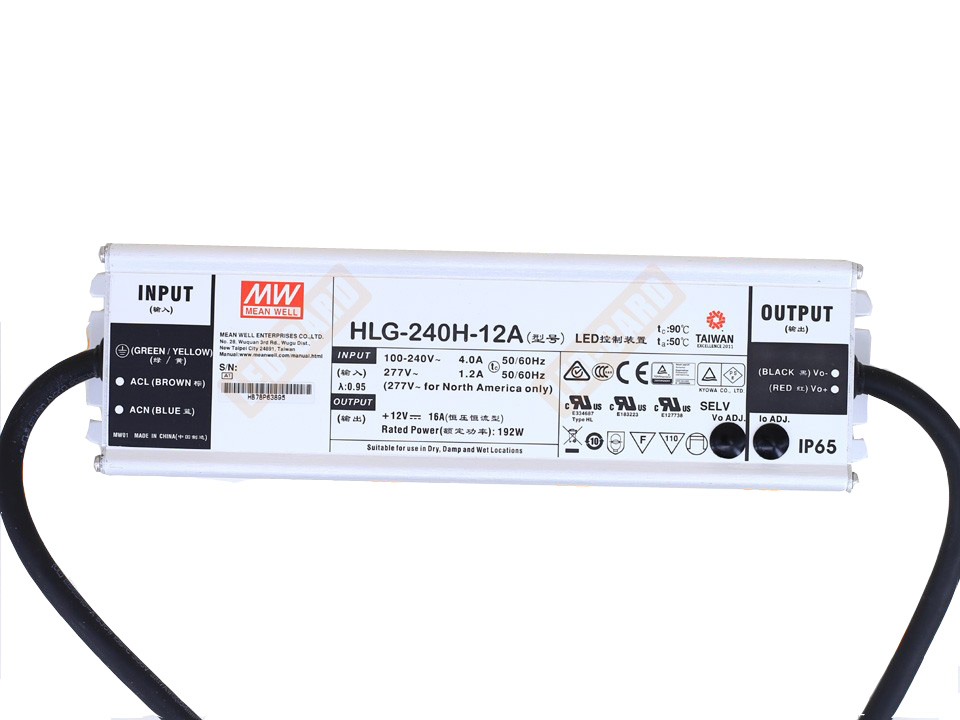

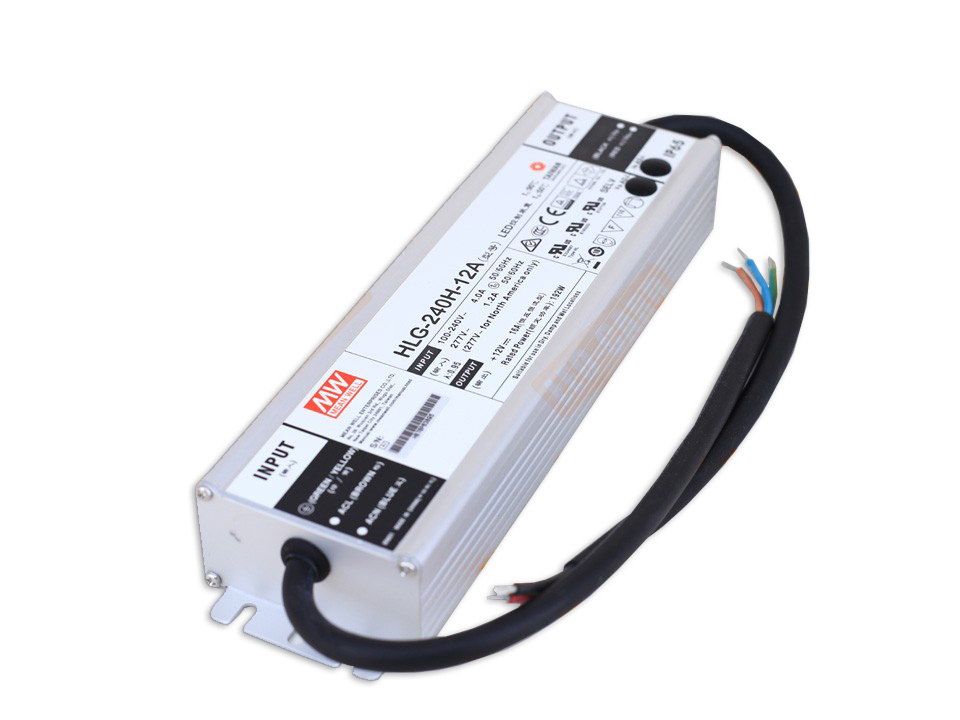

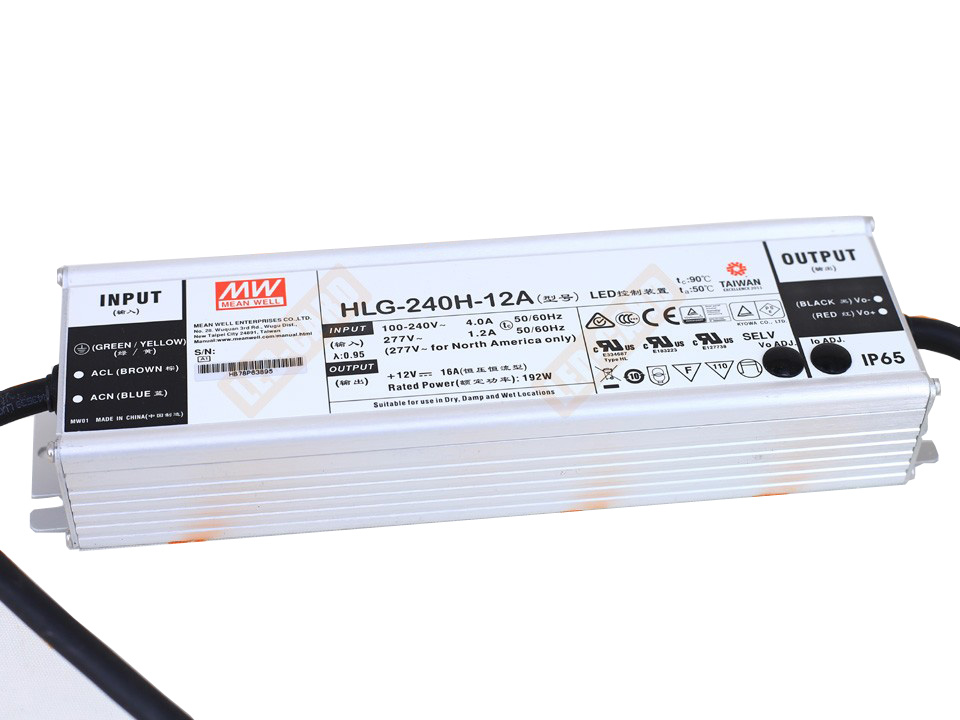

Meanwell HLG-240H-12A LED Driver

MEANWELL
Comparar

IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer 3 in 1 dimming
Typical lifetime> 62000 hours

$57.00

258 disponibles

SKU: HLG-240H-12A Categoría:

Descripción

Meanwell HLG-240H-12A LED Driver

Features:
Constant Voltage + Constant Current mode output
Metal housing with class design
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer 3 in 1 dimming
Typical lifetime> 62000 hours
2 years warranty

Output:
Power: 12V 16A 192W
Voltage Tolerance: 2.5%
Setup, Rise Time: 500ms, 80ms/230VAC 1000MS,80ms/115VAC at Full load

Input:
Voltage Range: 90-305VAC / 127-431VDC
Frequency: 47-63HZ
Efficiency: 90%

Over load: 95-108% rated output power
Over Voltage: 13.5-18V
Working Temp: -40 to +90 degree
Working Humidity: 20-95% RH non-condensing

Authentication: UL TUV PSE CCC CB CE EMC IP67
Size: 244.2*68*38mm
Weight: 1.3KG

Información adicional

Peso 0.7 kg
