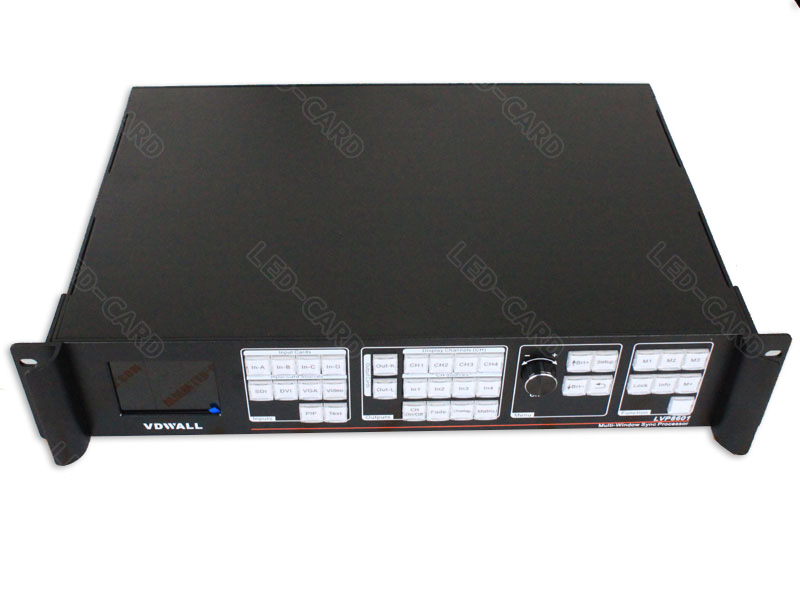

VDWALL LVP8601 multi-window sync processor
< Free of express shipping >
1. An all-in-one processor integrating mix matrix switching, pixel-to-pixel sync mosaic and multi-display

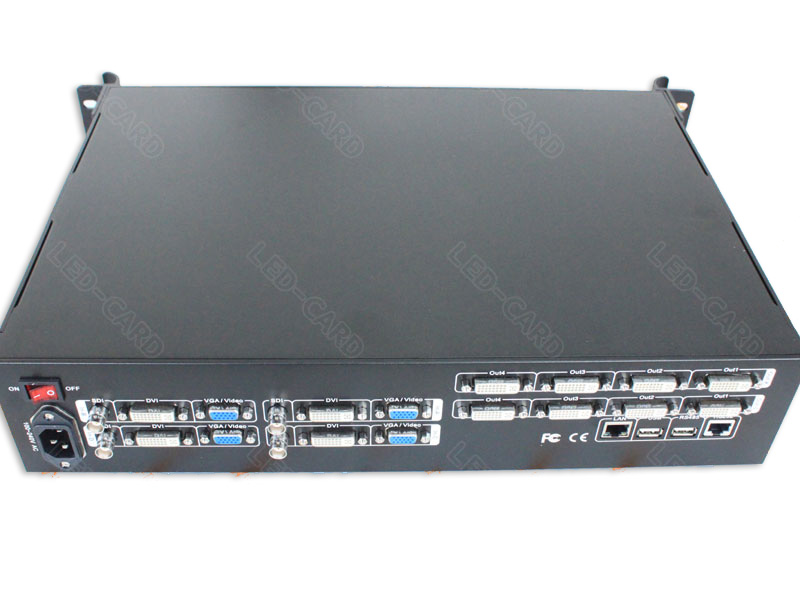

2. Inputs: HD+SD, analog+digital, totally 16 inputs including: CVBS x 4, VGA x 4, DVI x 4, SDI / HD-SDI x 4
3. Outputs: 8 DVI FULL HD digital outputs, each with maximal resolution up to 1920 x [email protected]
4. Synchronous mosaic technology: to realize mosaic processing of ultra HD video displayed by multi-display
graphics card or networking player
5. Supports zoom mosaic or pixel-to-pixel mosaic, single unit can maximumly support horizontal 15360 pixels
or vertical 8640 lines
6. 4-picture preview output
7. 4K2K ultra high-definition dynamic background picture
8. Adopting crosspoint high bandwith and high daterate transmission technology
9. State-of-the-art motion adaptive de-interlacing technology: to eliminate trailing or jaggies of motion pictures
10. Seamless switching or fade-in / fade-out switching between any two input signals
11. Image and text overlap supported, AIAO ( Any In Any Out ) allows for displaying any captured picture in
any specific area on screen
12. Multiple pre-saved modes supported, Seamless switching or fade-in / fade-out switching between different

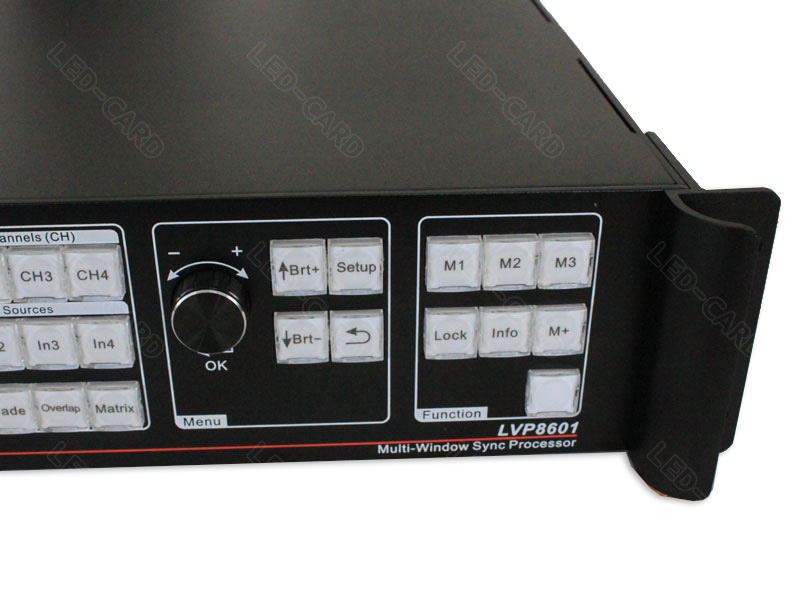

13. Convenient panel / RS232 / USB / LAN control and setup
We also Provide the LVP86XX (Means you can order the Video processor’s Input and Output amount.)
No included the sending card.
But it's Perfect compatibility with Linsn sending card , Novastar Sending card , Dbstar , C&light sending card.
