Novastar DH426 LED Receiver Card

Nova star
Browse Wishlist
Compare

DH426 receiver card with 16 HUB75E interfaces, max 512*384 pixels control.

Browse Wishlist

$19.00

SKU: DH426 Category:

Description

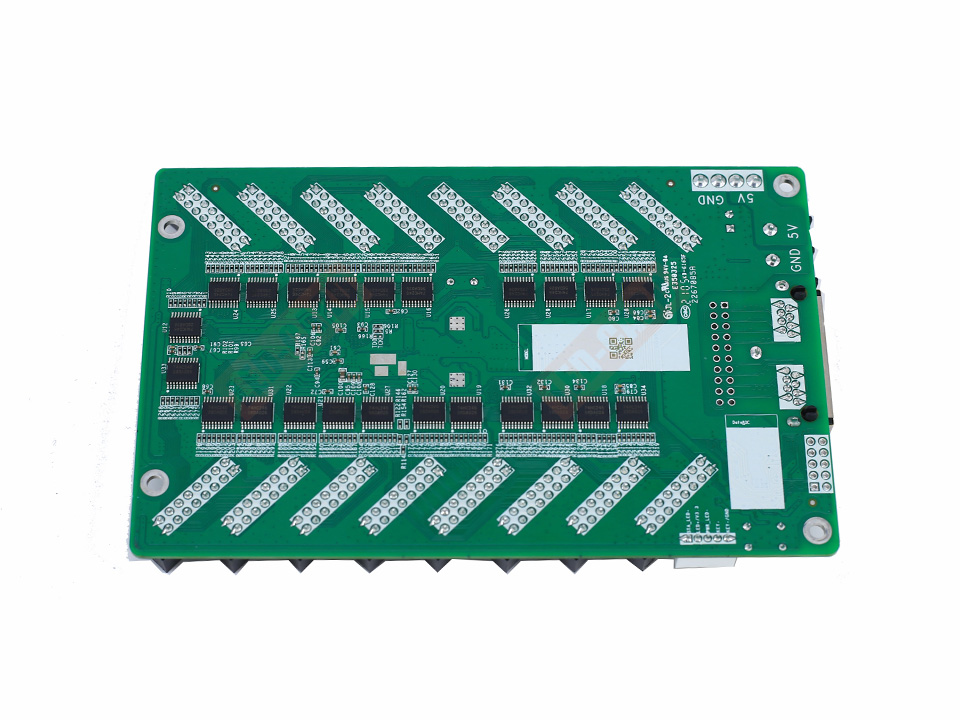

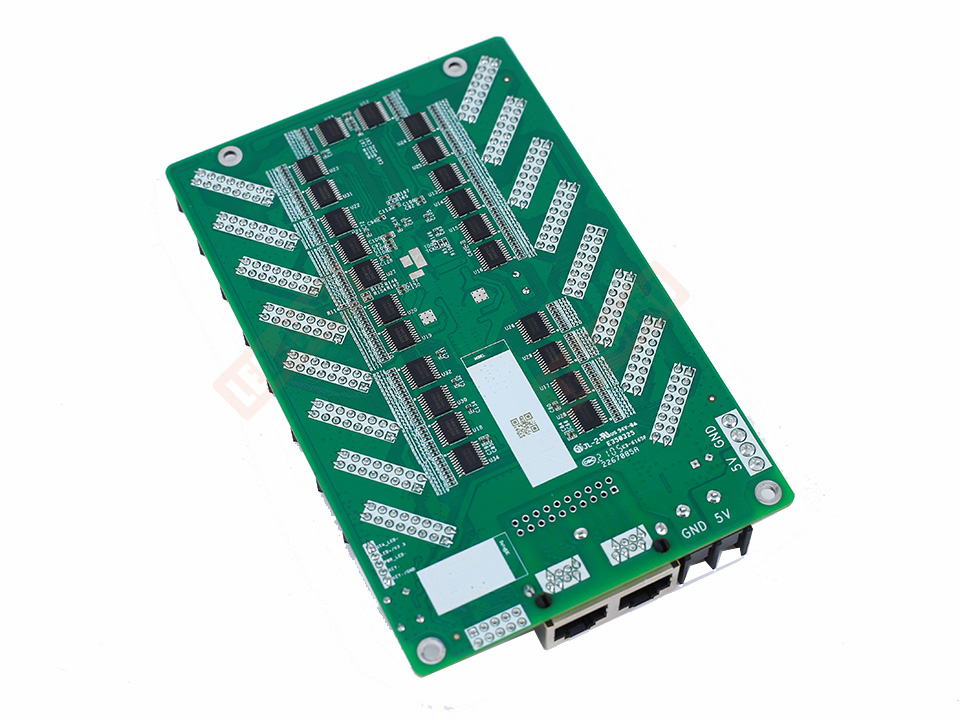

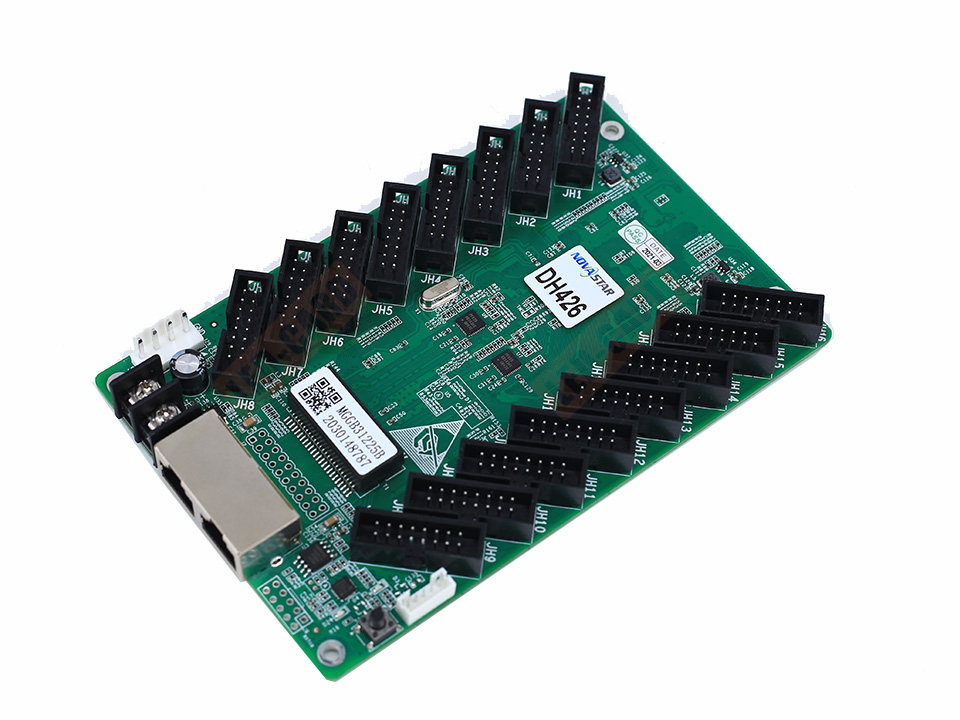

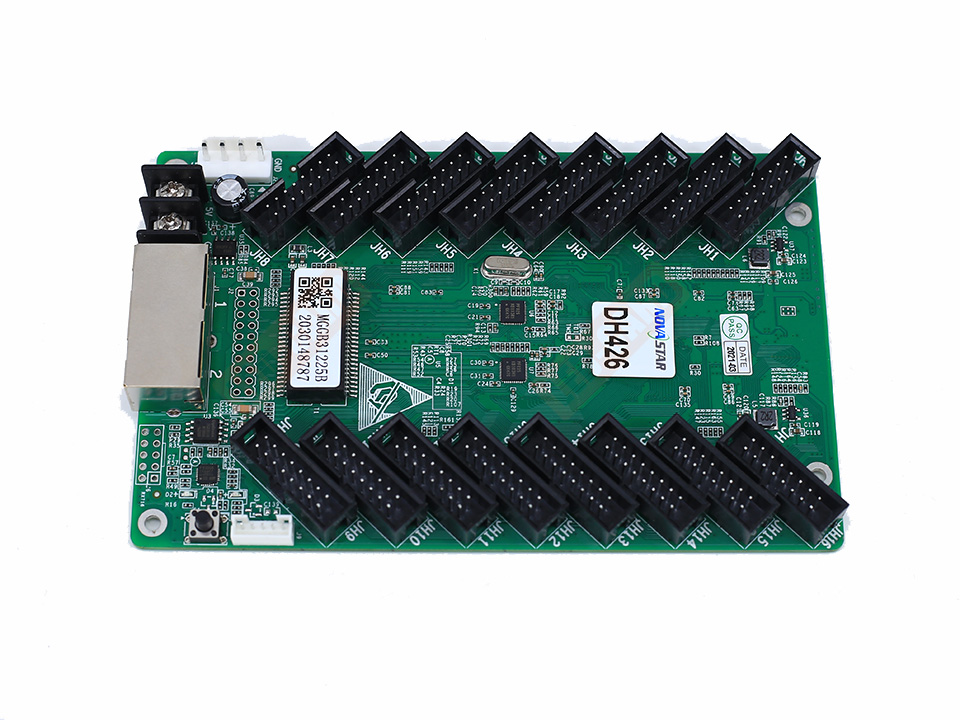

DH426 is a universal receiving card launched by Novarstar. The maximum load of single card is 512×384 pixels . supports brightness correction, fast line adjustment, 3D and RGB independent gamma adjustment, so as to improve the display effect of the screen, and improve the user experience of dh426 to communicate with 16 standard hub75e interfaces, which has high stability and supports up to 32 sets of RGB well data, Use of words in a variety of field environments.

Input voltage: DC 3.3v-5.5v,
Constant current: 0.5A
Rated power: 2.5W
Consumption temperature: – 20℃- + 70℃
Humidity: 10%RH-90%RH, non condensing
Temperature: – 25 ℃ – + 125 ℃
Size: 145.6mm x 91.5mm x 18.4mm
Weight: 100g
Passed: rohs, EMC class A

Additional information

Dimensions 15 × 9 × 2 cm
