Huidu HD-VP1220S LED Controller

Beschreibung

Huidu HD-VP1220S LED Controller  designed for professional LED and LCD displays. By seamlessly integrating a traditional video processor with a 12-channel Gigabit Ethernet output, this device eliminates the need for external sending cards, simplifying system architecture while significantly enhancing reliability.
Engineered for high-performance environments, the HD-VP1220S supports up to 5-channel synchronous signal input, making it the perfect solution for venues requiring precise synchronization, such as hotels, shopping malls, conference rooms, exhibitions, and broadcast studios. It also supports point-to-point input/output, ensuring the LED display reproduces images with maximum clarity and fidelity.
1. Unmatched Connectivity & Versatility
The HD-VP1220S offers a comprehensive suite of input options to handle virtually any source signal.
Multi-Interface Input: It features 2x HDMI, 1x DP 1.2, 1x DVI, and 1x VGA ports, allowing users to switch freely between multiple video signals.
High-Resolution Support: The processor handles massive resolutions, supporting a maximum input of 4096×2160@60Hz (4K). It supports various color spaces (RGB4:4:4/YCbCr4:4:4) and depths (8bit/10bit).
Audio Integration: It supports TRS 3.5mm dual-channel audio input (accompanying HDMI/DP signals) and provides a TRS 3.5mm dual-channel audio output to connect to external amplifiers or speakers.
2. High-Density Output & Control
This controller is built to manage large-scale displays with ease.
Massive Pixel Control: It can control a maximum of 7.8 million pixels. The horizontal resolution can reach up to 16,000 pixels, and the vertical resolution up to 4,000 pixels.
Direct Cascade: The unit comes standard with 12-channel Gigabit network ports, enabling direct cascading to receiving cards without intermediate hardware.
Flexible Layouts: It supports two-screen layout modes and can manage a maximum window size of 2×4K. The network ports support arbitrary overlapping and non-rectangular bandwidth configurations.
3. Advanced Processing & Control Features
The HD-VP1220S provides professional-grade control and customization options.
Signal Management: Users can perform arbitrary switching, cropping, and scaling of video signals. It supports 16 scene presets for quick recall of complex configurations.
Visual Customization: It includes functions for brightness adjustment, color temperature adjustment, and a key lock function to prevent accidental changes.
Remote & Wireless Control: The device supports RS232 serial port protocol for integration with central control systems. For modern convenience, it supports Wi-Fi (Station, AP, or Station+AP modes) and mobile APP wireless control. Optional infrared remote control and Wi-Fi remote call functions are also available.

Specification
Chassis: 1U Standard (482mm × 44mm × 240mm)
Power: AC 100~240V 50/60Hz (50W consumption)
Operating Temp: -20℃ ~ 55℃
Net Weight: 3kg

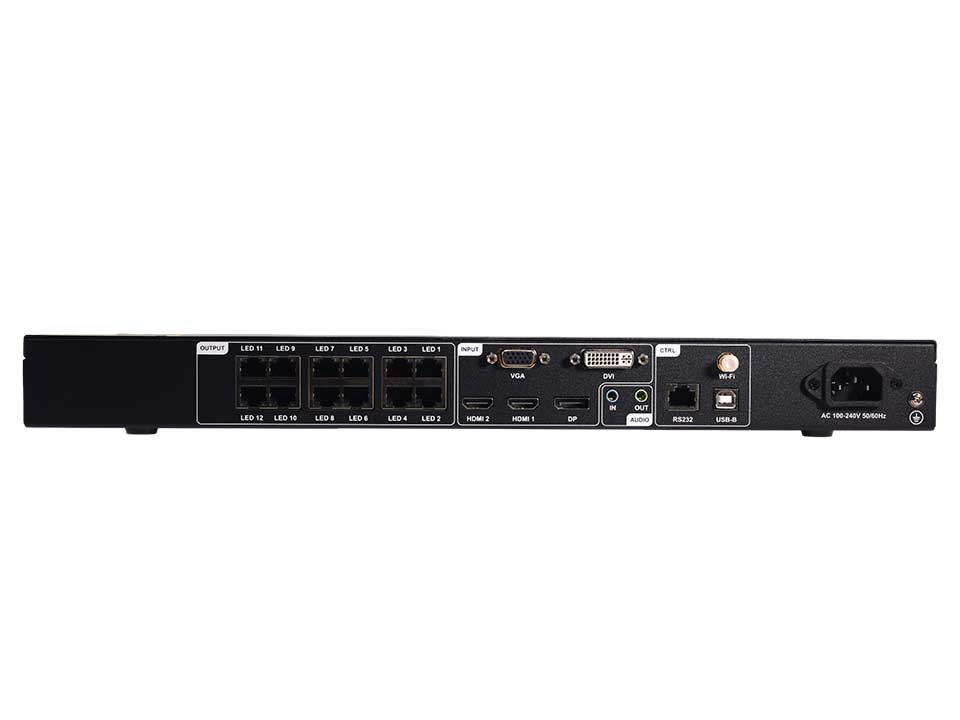

Interfaces: HDMI, DP, DVI, VGA, 12x Gigabit LAN, Audio I/O
