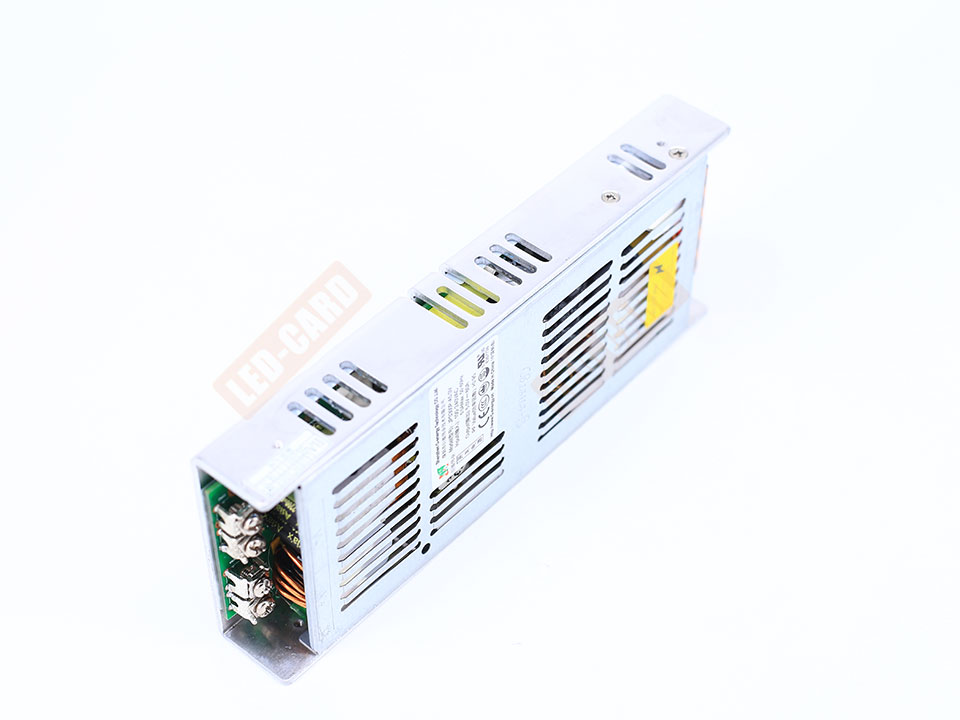

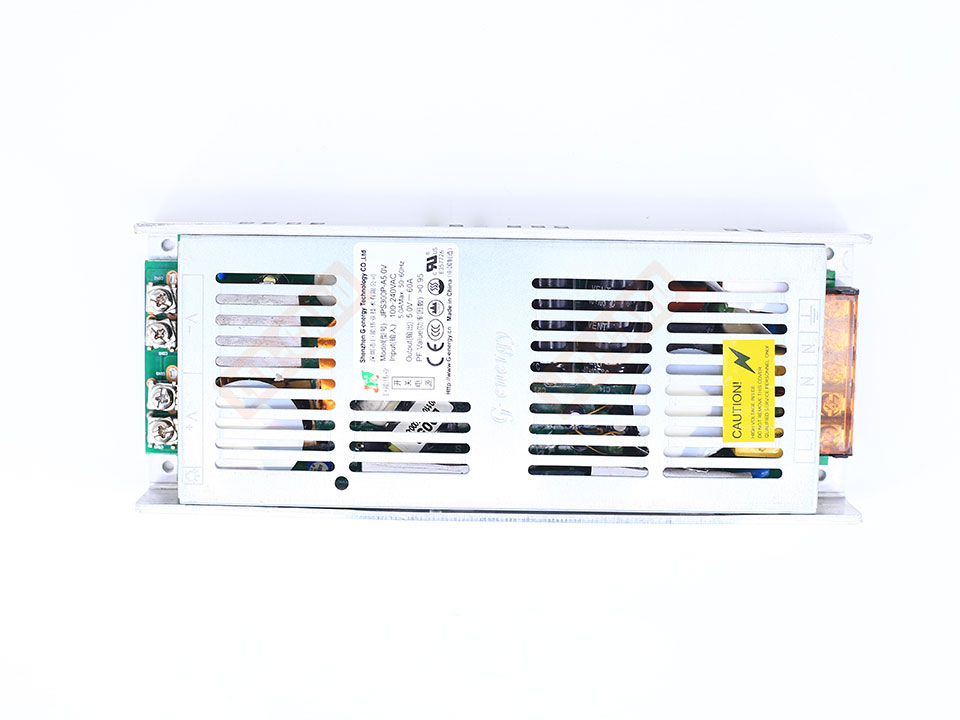

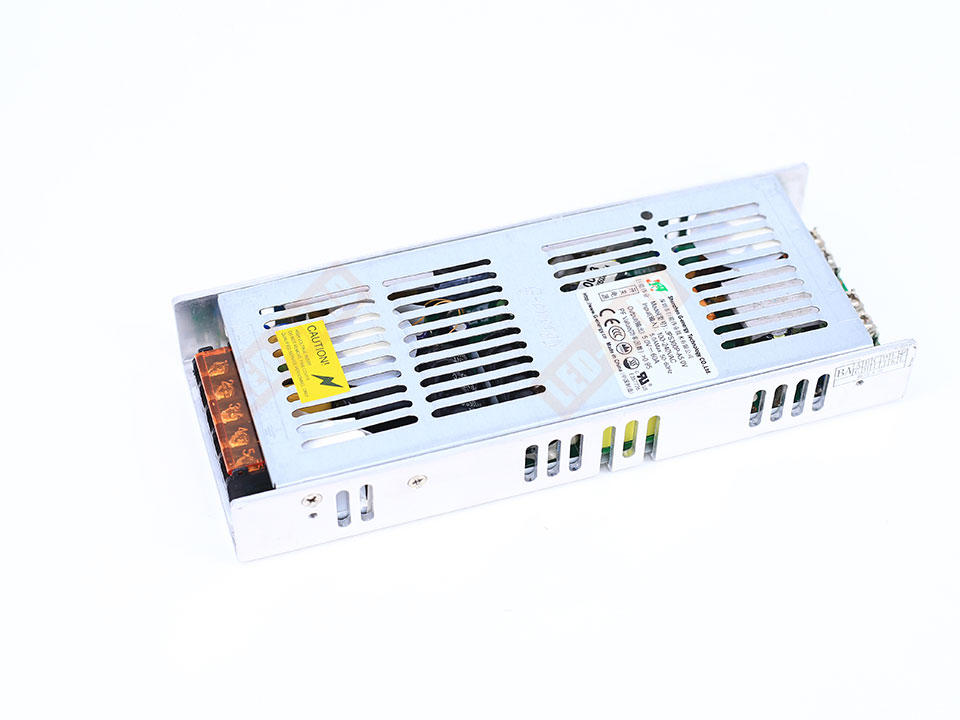

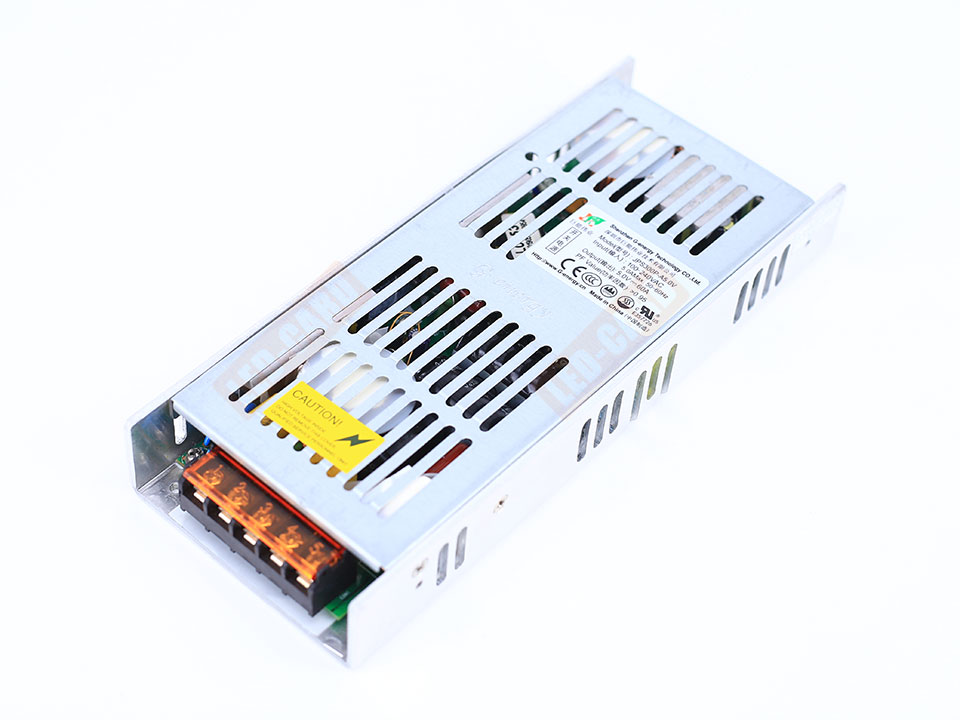

The power supply JPS300P-A5.0V has the characteristics of small volume, high efficiency, stable operation and high reliability. The power supply has input under-voltage, output current limiting, output short circuit and so on.
The synchronous rectifier circuit greatly improves the efficiency of the power supply and saves energy consumption. The power supply is wide voltage input, wide ambient temperature, with power factor correction circuit, and has a wide range of applications.
Cooling by free air convection
Built-in constant current limiting circu
1U low profile 36mm
All using 105 C long life electrolytic capacitors
LED indicator for power on
100% full load burn-in test
5V 60A 300W
±5.0% Voltage Output
800ms,50ms at full load
