Linsn RV801-D LED anzeigen Horer Karte

LINSN
Vergleich
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.

By point correction support single point, 2X2 points, 4X4 points and 8X8 point four correction mode, the biggest calibration 6144 points/module, red, green, blue each level of 256;By card (cabinet) used to display the between the correction of off color correction, red, green, blue each level of 256.

$52.00 $45.00

401 vorrätig

Artikelnummer: RV801-D Kategorie:

Beschreibung

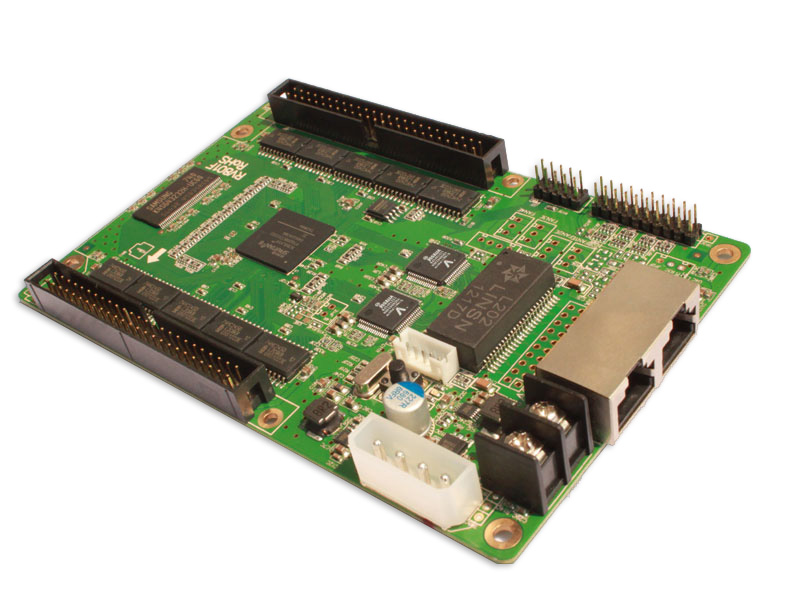

Linsn RV801-D LED display receiver card

correction function:

By point correction support single point, 2X2 points, 4X4 points and 8X8 point four correction mode, the biggest calibration 6144 points/module, red, green, blue each level of 256;By card (cabinet) used to display the between the correction of off color correction, red, green, blue each level of 256.

Intelligent identification card function:

Intelligent identification procedures can identify double color, full color, virtual, lighting, etc all kinds of various drivers board scanning mode and various kinds of signal , recognition rate reached 99%.

65536 level (64 K) gray arbitrary setting function:

According to the situation of display customers can arbitrarily set from no gray to level 65536 (64 K), make your screen to achieve the best display effect.

The refresh rate arbitrary setting, phase lock, synchronization function:

set arbitrarily from 10 Hz refresh rate-3000 Hz, phase lock function to make the screen refresh lock the computer monitor refresh rate in integer times, put an end to the image rent, ensure perfect image reappearance. Phase lock synchronous range of 47 Hz-76 Hz.

Control area:

Full color 4096(4K) gray level 180HZ refresh rate,max controls 512*128,twice than the sixth generation product,full color static 16384(16k)gray level 300HZ,max controls 160*64(note:need driving board can be on high 30MHZ clock)

Double cable heat backup function:

The A and B two ports of receiving card can be used to input or output, can be used for two computers to control a screen at the same time, when one computer have problems, another one automatically replace it, also can be used for one computer with double cable control, when one cable have problems, another one automatically take it over, making the normal work of screen to get maximum security.

Many screens synchronization and composite function:

Support a piece of sending card controlling pieces screens, the working state of screens can be arbitrary combination, synchronous

display, independent broadcasting, can be through the shortcut key, fast switching.

256 level automatically brightness adjustment:

A level 256 automatic adjustment function make display brightness adjustment more effective.

Program online upgrade function:

If the screen receiving card program needs to be upgraded, need to open display power and update through the LED studio, no need to detach receiving card from the display.

Break the traditional ideas without dial code switch:

No dial code switch design, all Settings through the computer.

Test function:

Receiving card integration test function, need not take send card can test display, slash, gray, red, green, blue, and the light, etc many types test mode.

Long distance transmission:

Maximum transmission 170 meters (measured), ensure transmission 140 meters.

Supporting software:

LED studio 10.0

Zusätzliche Information

Gewicht0.3 kg
