HDR-150-24 DIN Rail Power Nominal Output Voltage:24V;Output Current:0~5.31A;Output Power:127W


Artikelnummer: HDR-150-24 Kategorie: Schlüsselworte: , ,

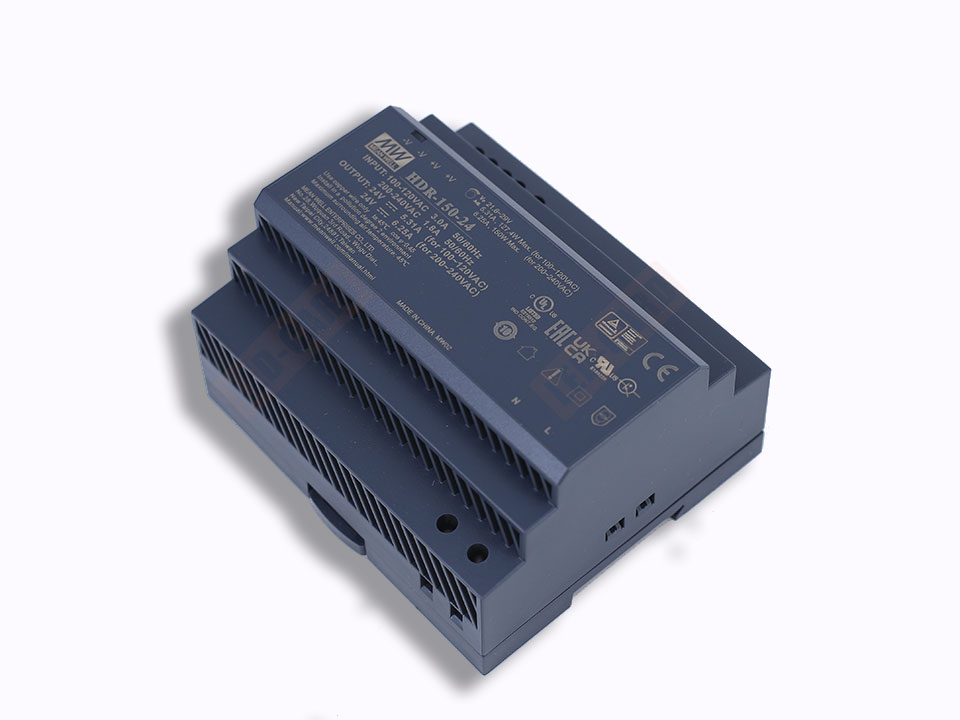

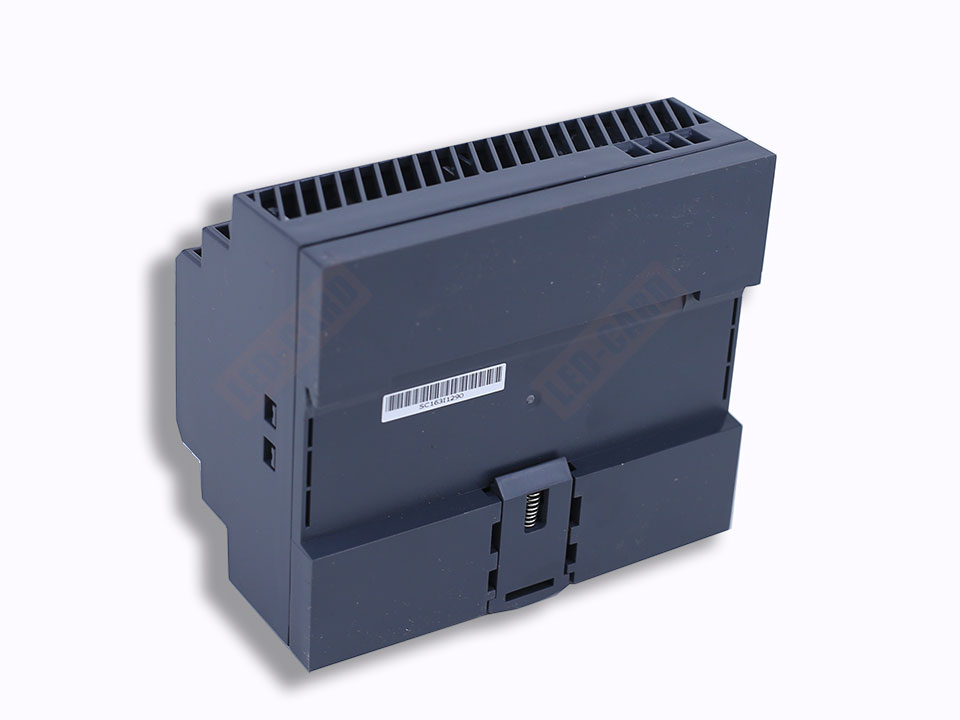

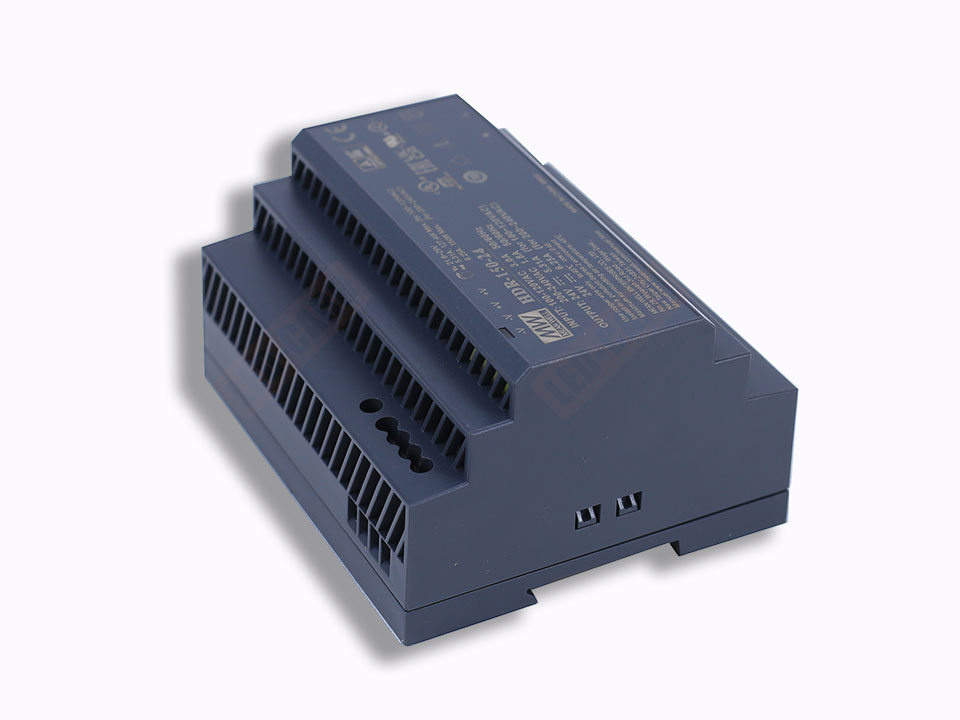

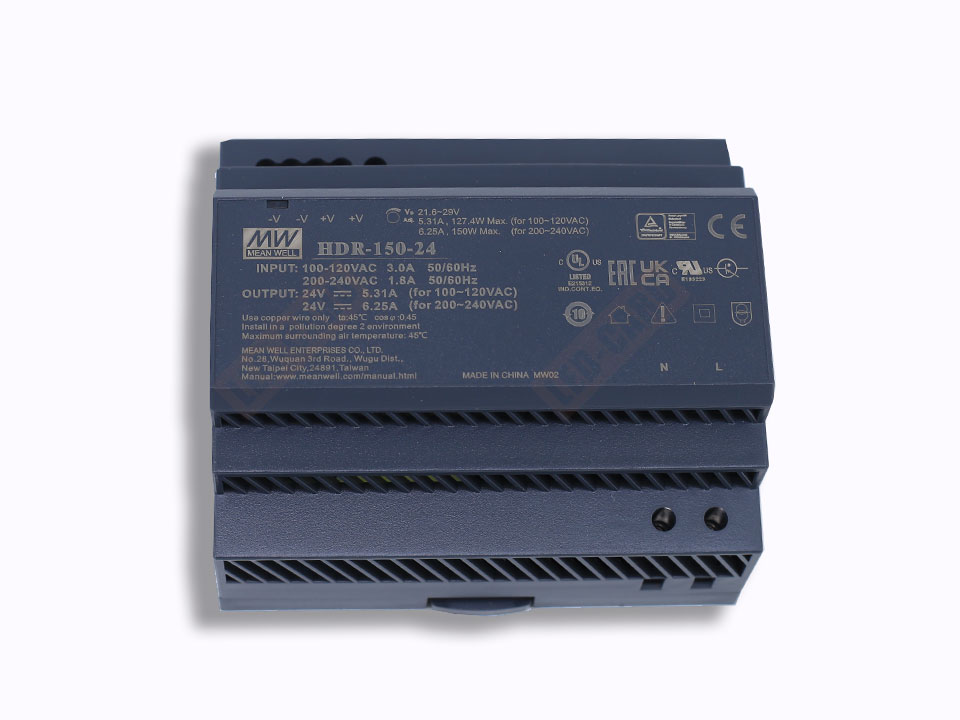

HDR-150 is an economical ultra slim 150W DIN rail power supply series , adapt to be installed on TS-35 / 7 . 5or TS-35 / 15 mounting rails .
The body is designed 105mm ( 60 ) in width , which allows space saving inside thcabinets .
The entire series adopts the full range AC input from 85VAC to 264VAC ( 277VACoperational ) and conforms to BS EN / EN61000-3-2 , the norm the European Union regulates forharmonic currentHDR-150 is designed with plastic housing that it can effectively prevent user from electric hazards .
Withworking efficiency up to 90.5% , the entire series can operate at the ambient temperature between30C and 70C under air convection .
The complete prote ction functions and relevant certificates for homeautomations and industrial control apparatus ( iec62368-1 , UL62368-1 , UL61010 , BS EN / EN61558-2-16make HDR-150 a very competitive power supply solution for household and industrial applications.
1.Nominal Output Voltage:24V
2.Output Current:0~5.31A
3.Output Power:127W
4.Rise time:(At 115Vac&230Vac 1 60A, DC output rise time from 5% to 95% of Vout)500ms
5.Hold-up Time:30ms/230VAC or 12ms/115VAC at full load
6. working Temp.: -30 to 70 ℃
6.Line Regulation:+0.5%
7.Load Regulation:13%

Zusätzliche Information

Gewicht 0.6 kg
