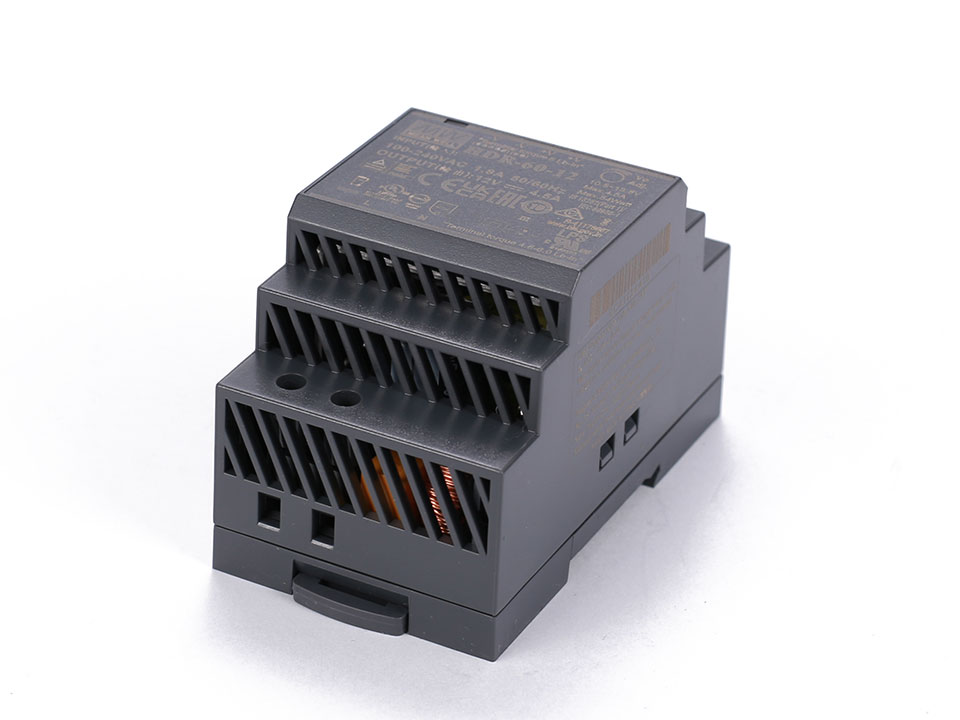

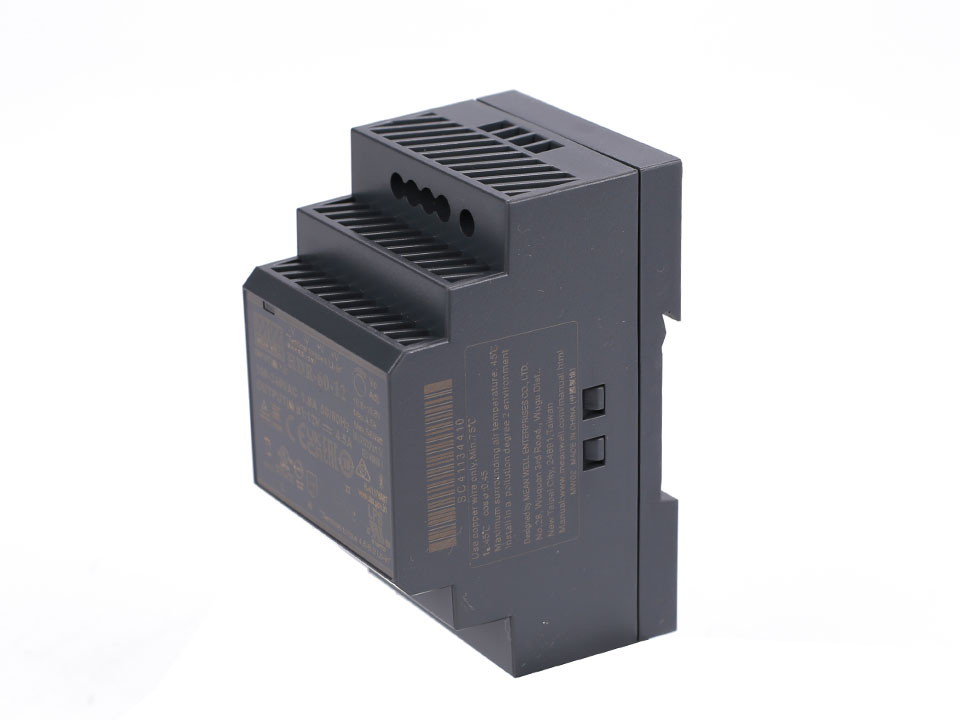

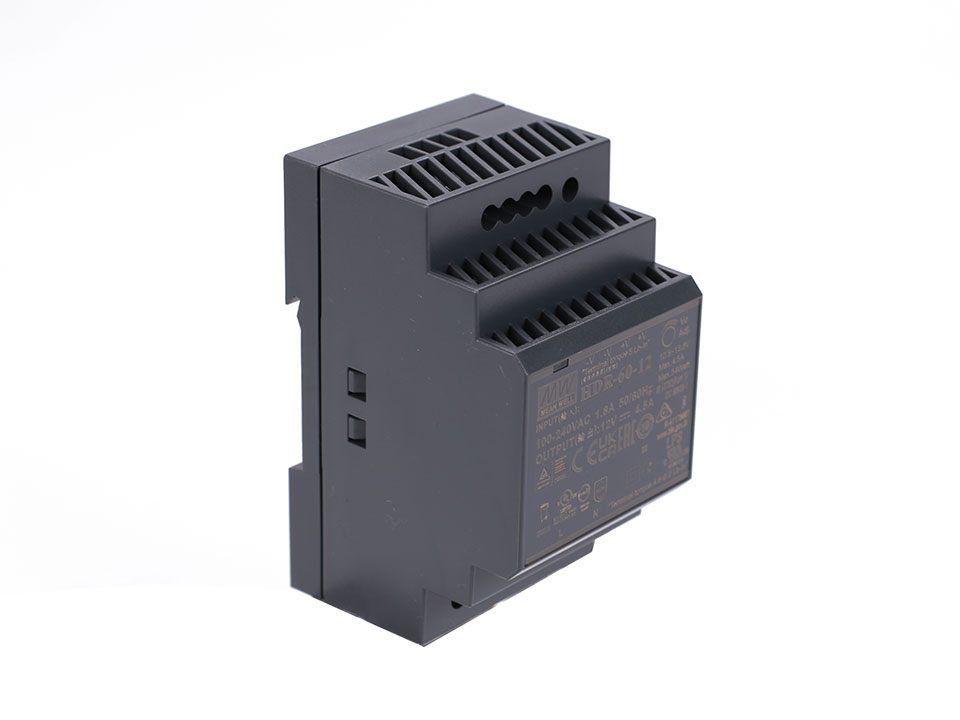

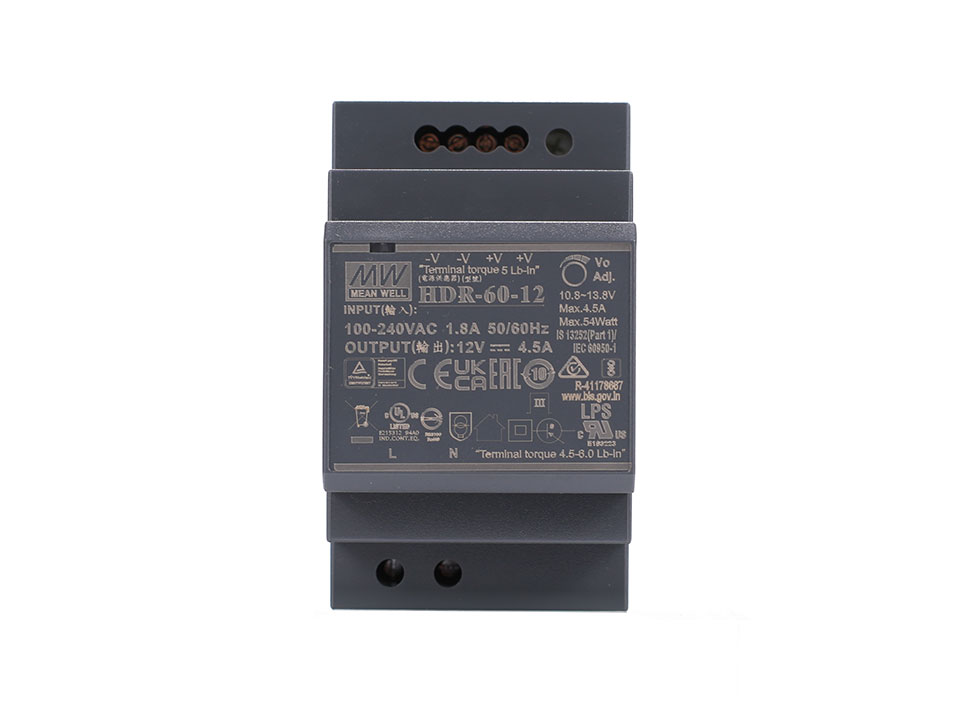

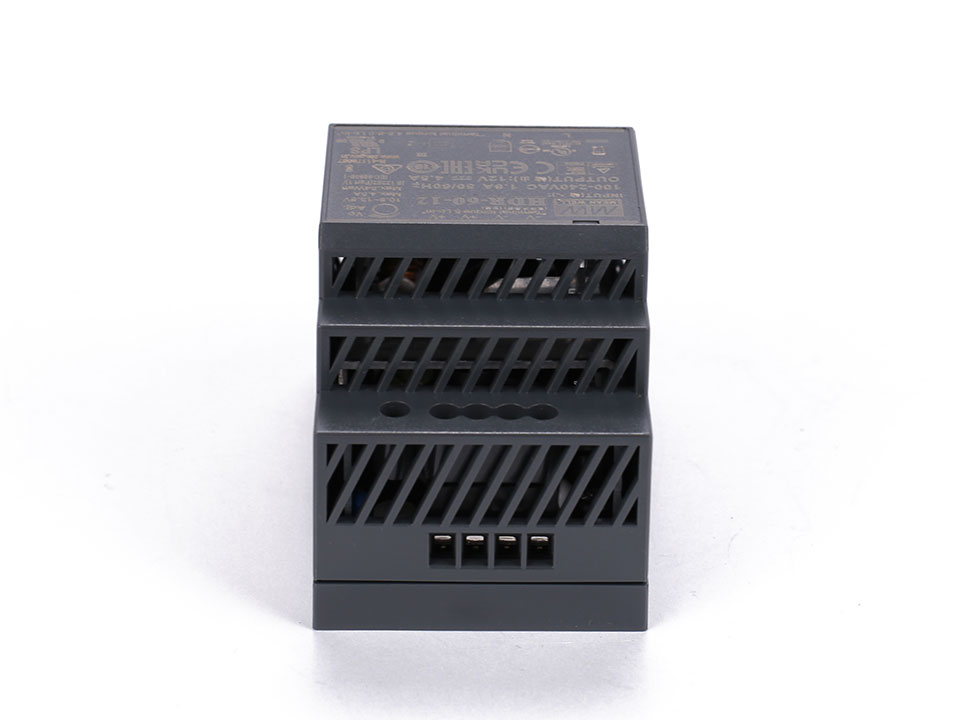

Meanwell HDR-60-12 Rail Power Supply

MEANWELL, MEANWELL
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.

HDR-60 is one economical ultra slim 60W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 52.5mm(3SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC (277VAC operational) and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current.

$15.00

Beschreibung

.Ultra slim design with 52.5mm(3SU) width
.Universal input 85~264VAC(277VAC operational)
.No load power consumption<0.3W
.Isolation class II
.Pass LPS (Limited power source)
.DC output voltage adjustable
.Protections : Short circuit / Overload 1 Over voltage
.Cooling by free air convection (working temperature:-30~+70C°)

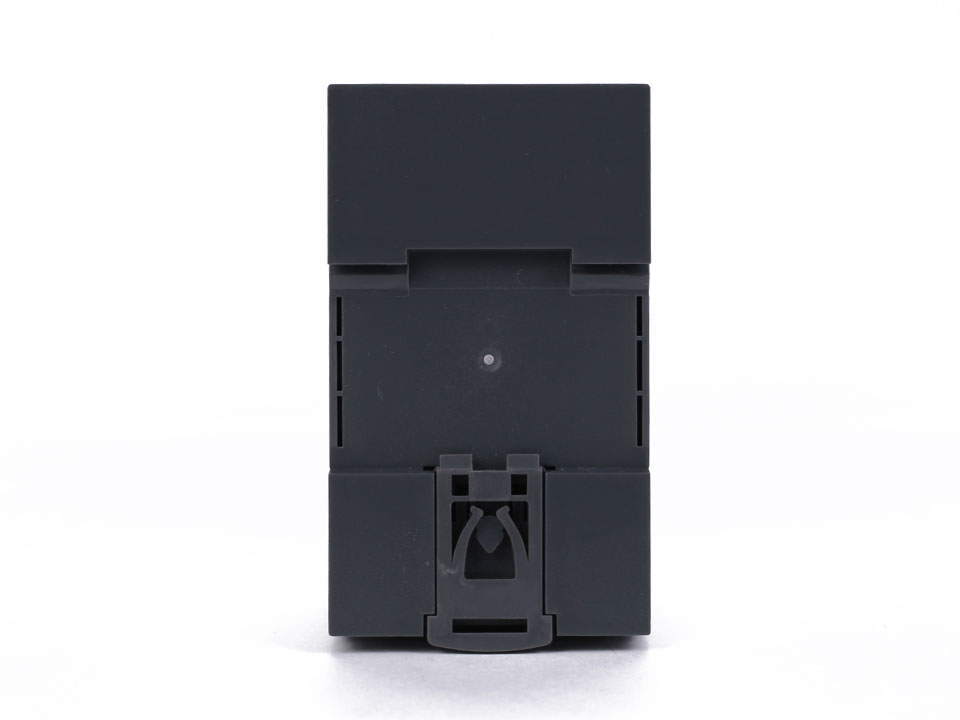

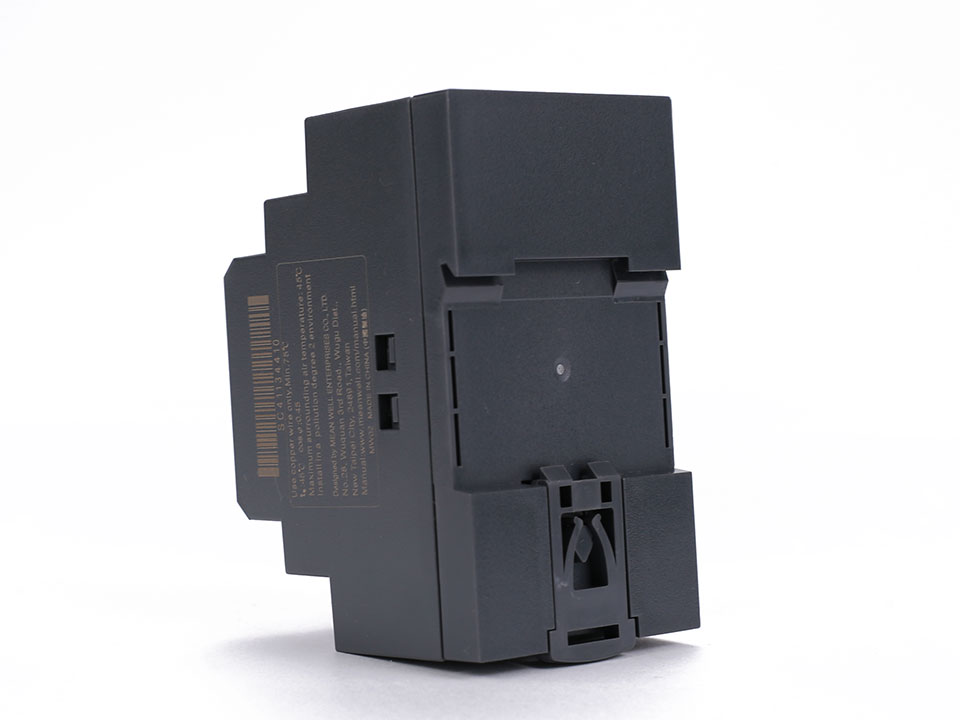

.DIN rail TS-35/7.5 or 15 mountable
.LED indicator for power on
.3 years warranty

Output:
Power: 22V 4.5A 54W
Voltage Tolerance: ±1%
Setup, Rise Time: 500ms,100ms/230VAC 12ms/115VAC at Full load

Input:
Voltage Range: 85-264VAC / 120-370VDC
Frequency: 47-63HZ
Efficiency: 88%

Over load: 105-160% rated output power
Over Voltage: 14.2-16.2V
Working Temp: -30 to +70 degree
Working Humidity: 20-95% RH non-condensing

Authentication: BIS UL TUV BSMI EAC CB EMC CE UK
Size: 52*90*54.5mm
Weight: 0.2KG

Zusätzliche Information

Gewicht 0.2 kg
Größe 9 × 6 × 5 cm
