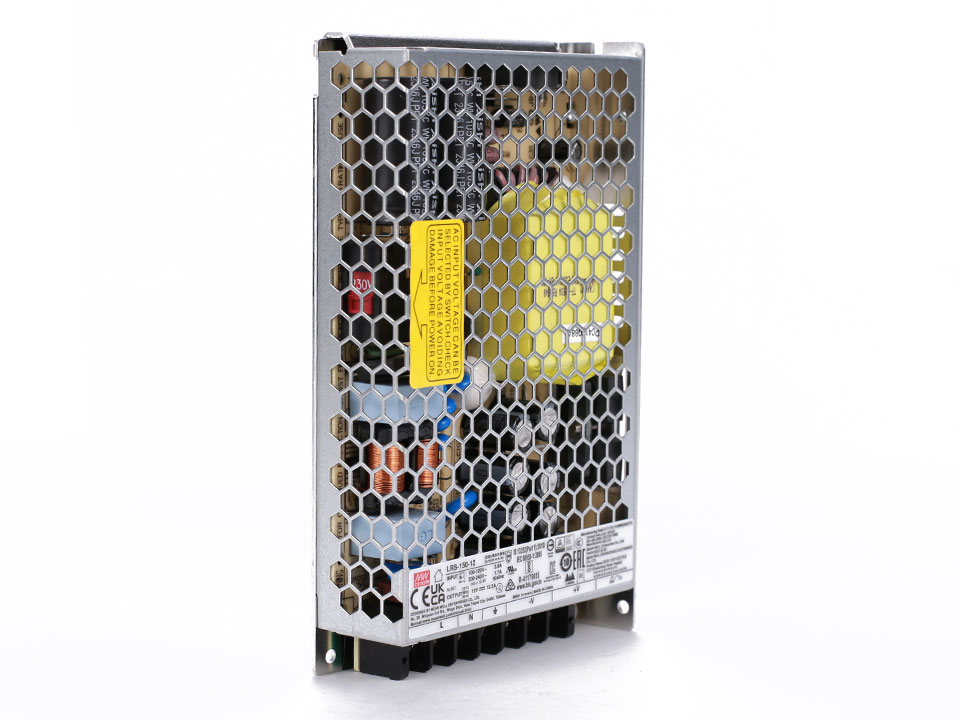

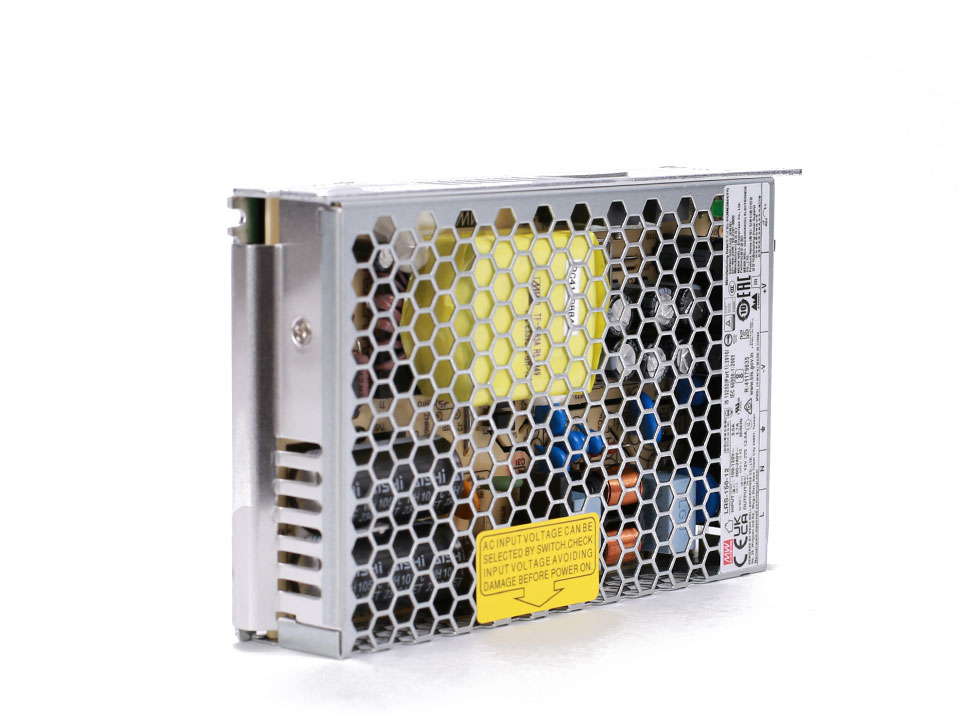

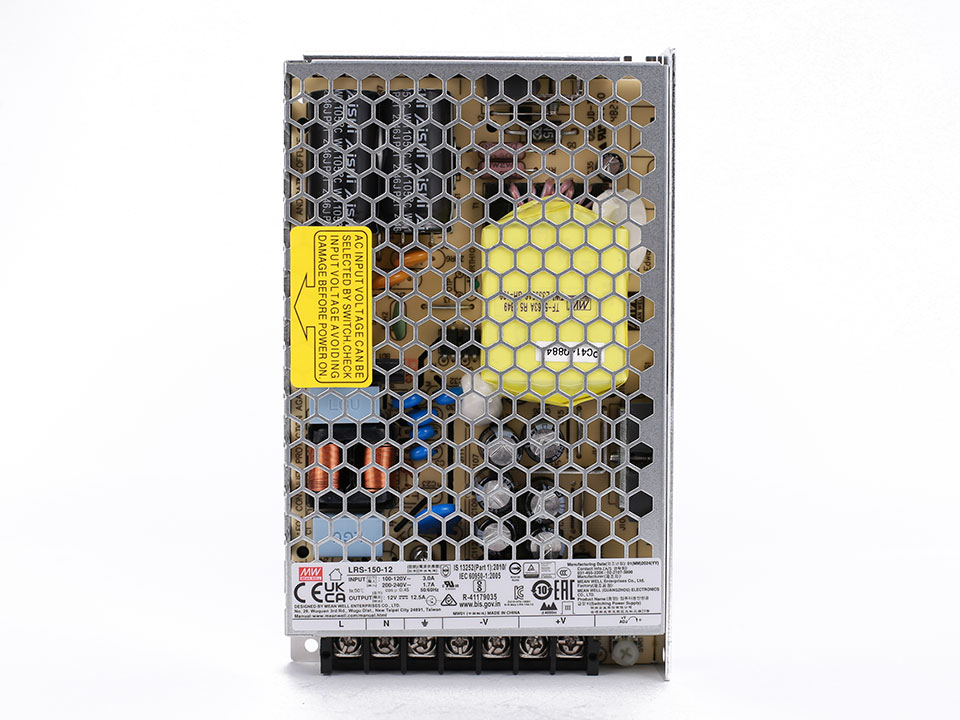

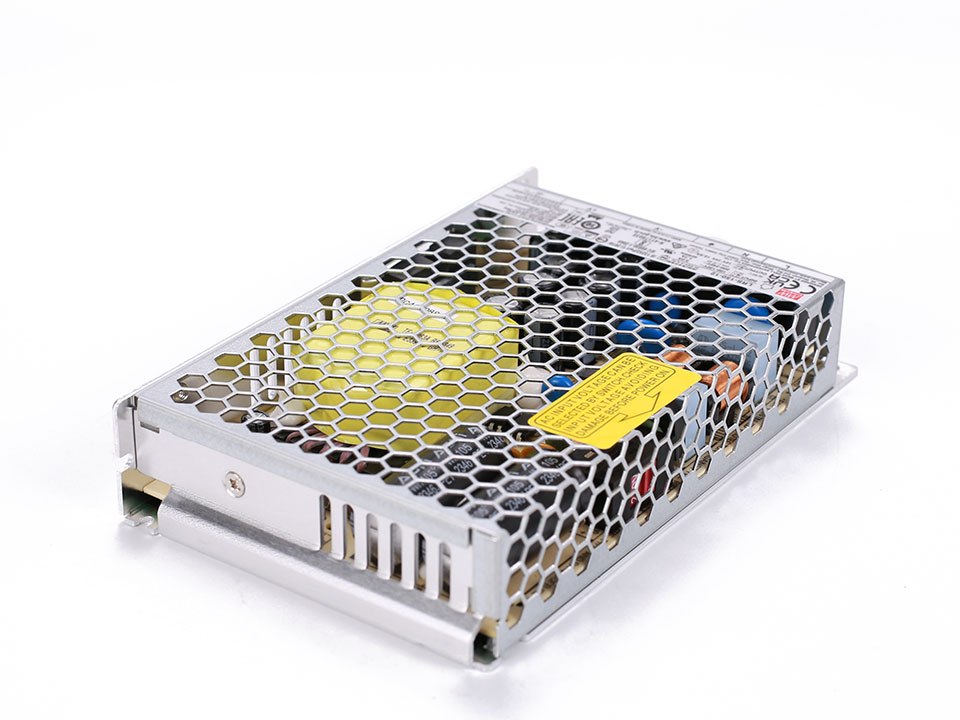

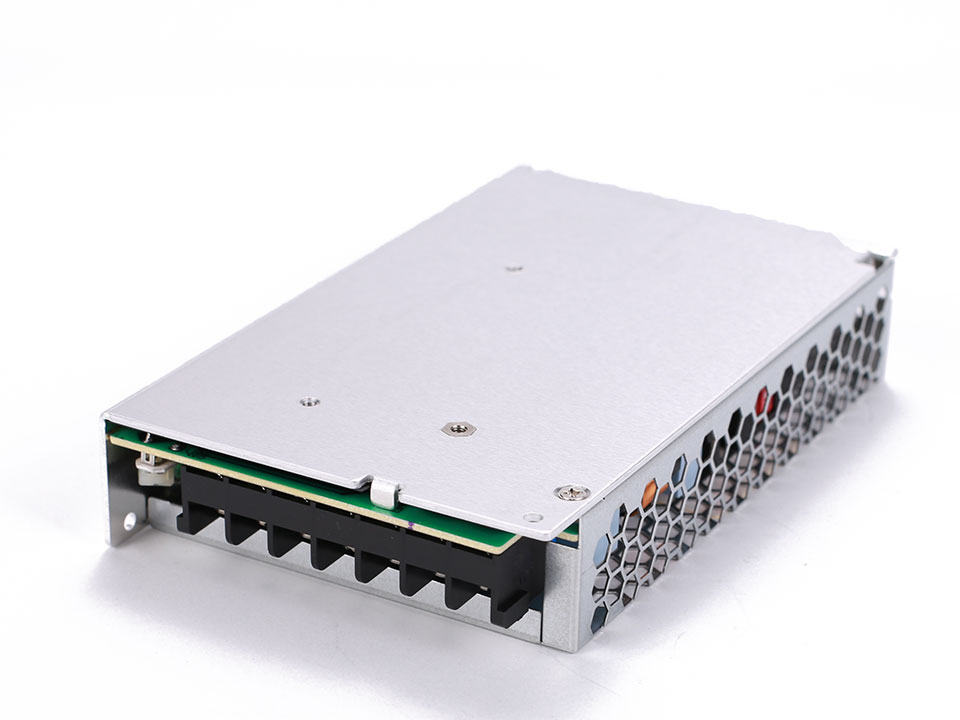

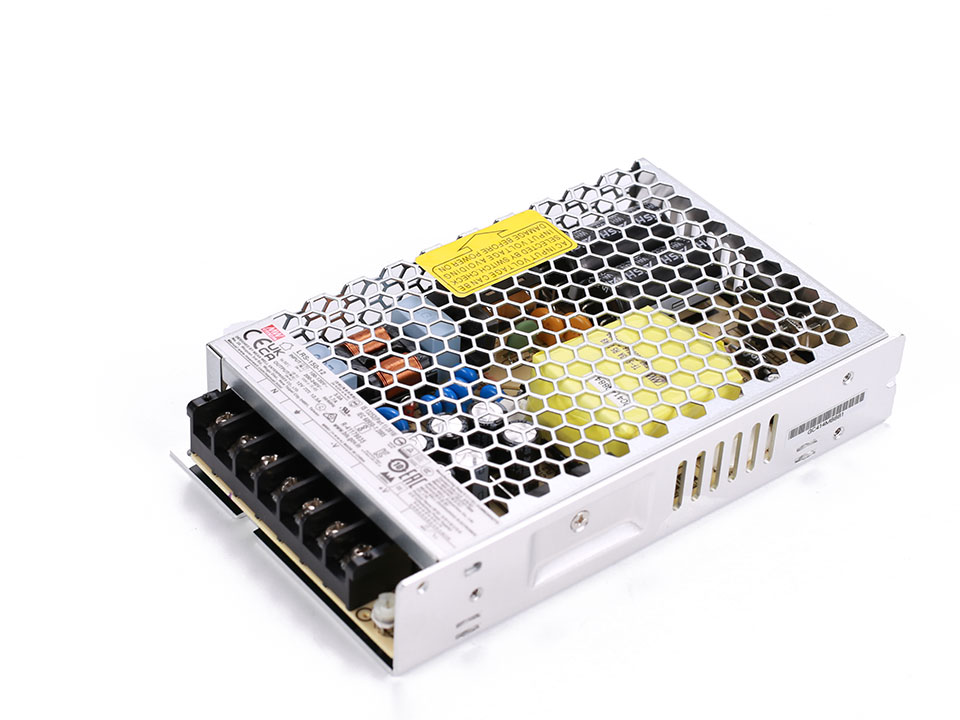

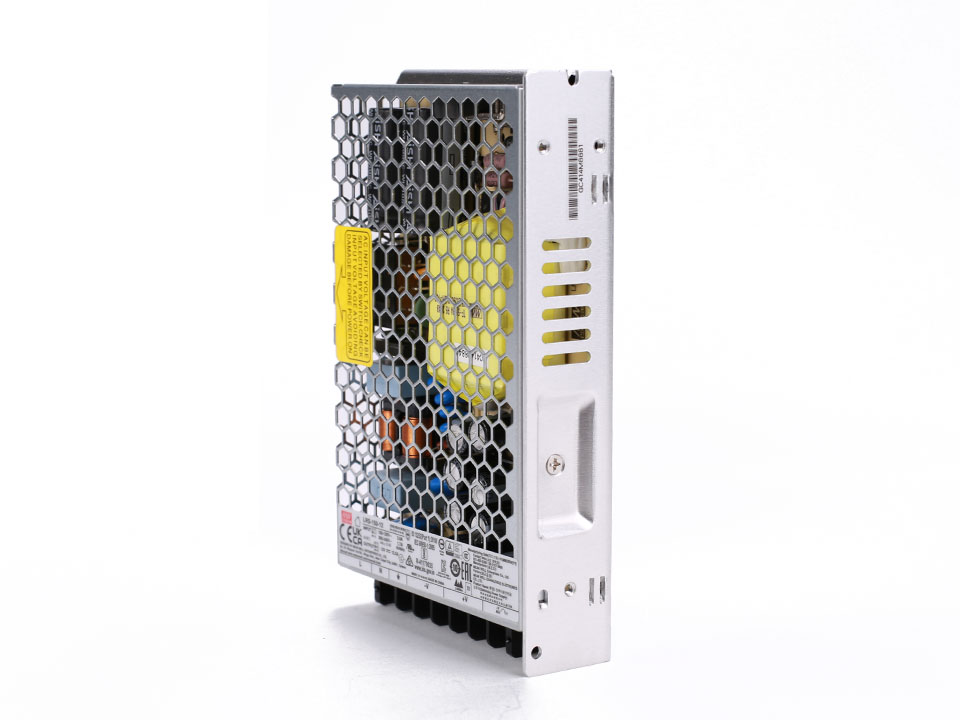

Meanwell LRS-150-12 Switching Power

MEANWELL, MEANWELL
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.

LRS-150-22 is a 150W single-output enclosed type power supply with 30mm of low profile design.
Adopting the input of 1 15VAC or 230V AC(selectable by switch), the entire series provides an output voltage 12V.

$16.90

Beschreibung

. AC input range selectable by switch
. Withstand 300VAC surge input for 5 second
. No load power consumption<0. 5W
. Miniature size and 1U low profile
. High operating temperature upto 70°C
. Protections: Short circuit/ Overload 1 Over voltage 1
. Over temperature
. Cooling by free air convection
. Compliance to IEC/BS EN/EN 60335-1(PD3) and
IEC/BS EN/EN61558-1, 2-16 for household appliances
. Operating altitude up to 5000 meters
. Withstand 5G vibration test
. High efficiency, long life and high reliability
. LED indicator for power on
. Over voltage category III
. 100% full load burn-in test

Output:
Power: 12V 12.5A 150W
Voltage Tolerance: 1%
Setup, Rise Time: 500ms, 30ms/230VAC 500MS,30ms/115VAC at Full load

Input:
Voltage Range: 85-264VAC / 127-431VDC
Frequency: 47-63HZ
Efficiency: 85%

Over load: 110-140% rated output power
Over Voltage: 13.8-16.2V
Working Temp: -30 to +70 degree
Working Humidity: 20-90% RH non-condensing

Authentication: BSMI RCM CCC UL TUV EAC CB EMC CE
Size: 159*97*30mm
Weight: 0.48KG
