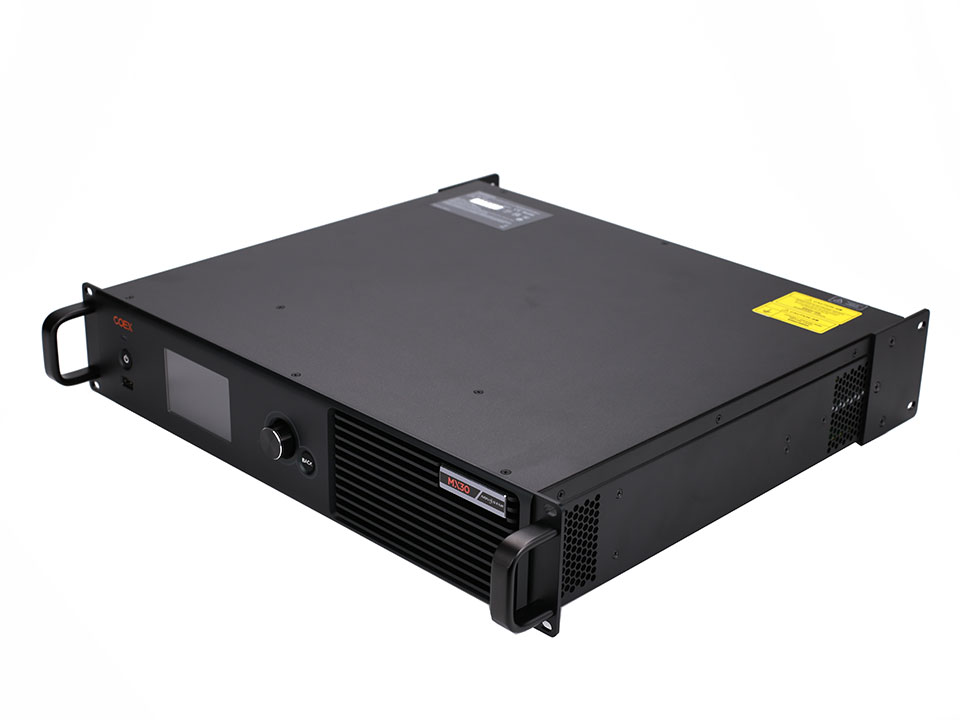

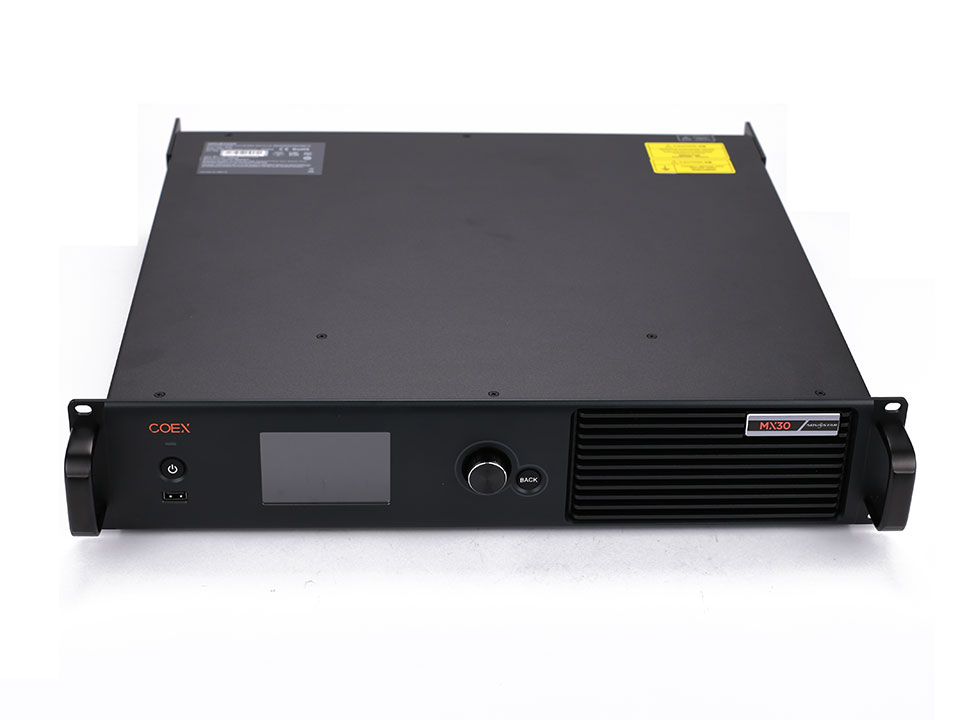

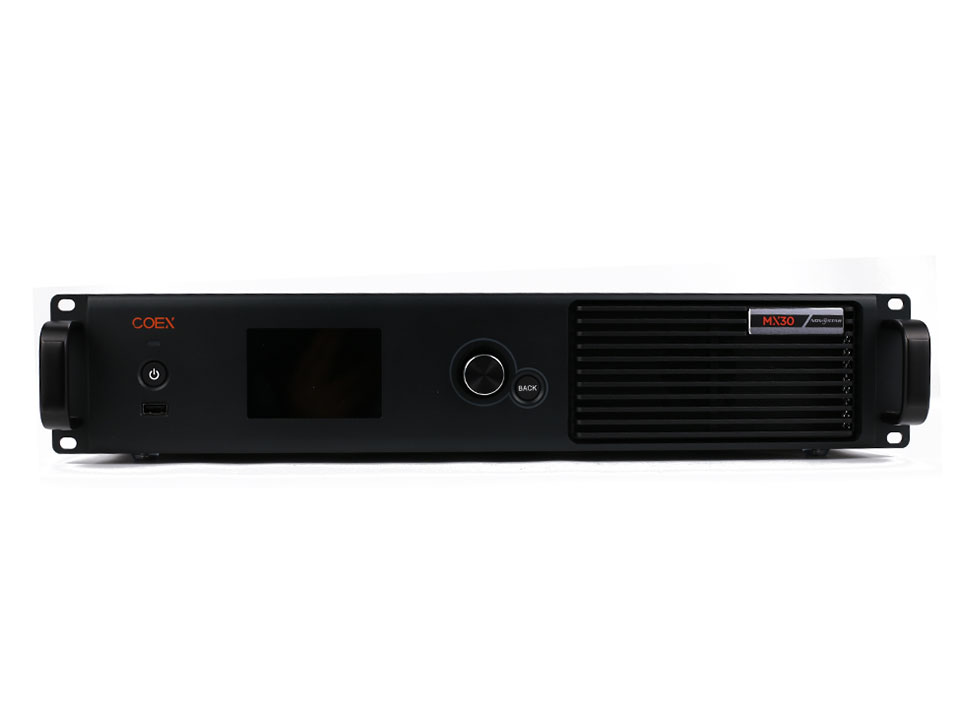

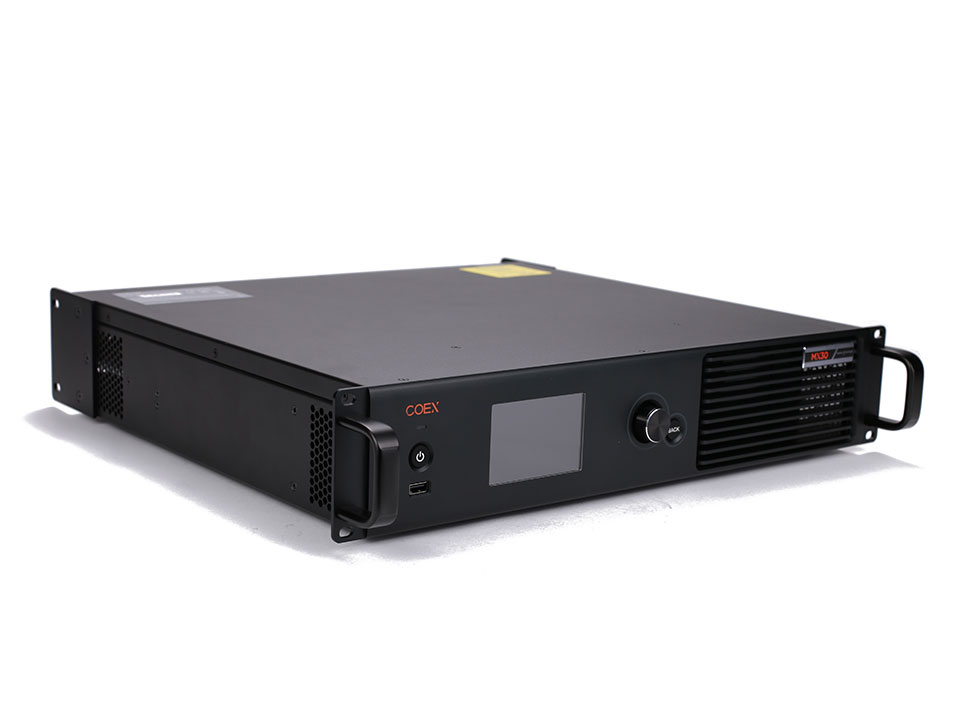

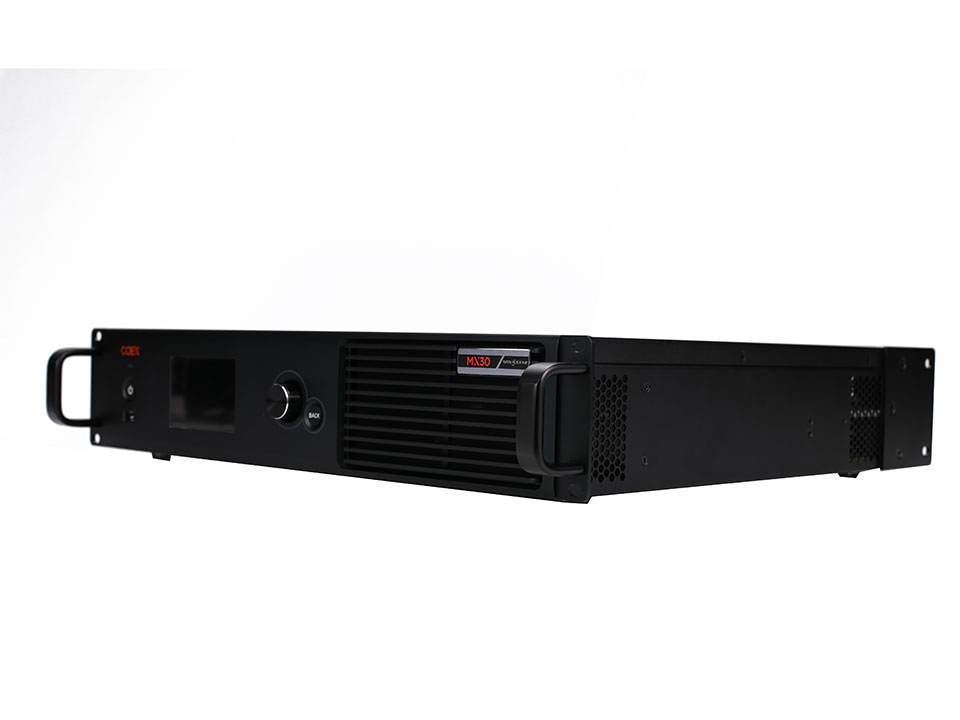

Novastar MX30 LED Display Controller

Beschreibung

Novastar MX30 controller integrates video processing and video control into one box, providing rich video input interfaces (HDMI 2.0, HDMI 1.4, DP 1.1, and 3G-SDI), 10 Ethernet output ports, and 2 10G optical ports. It can also collaborate with the new software VMP (Visual Management Platform) to provide a better operating and control experience.

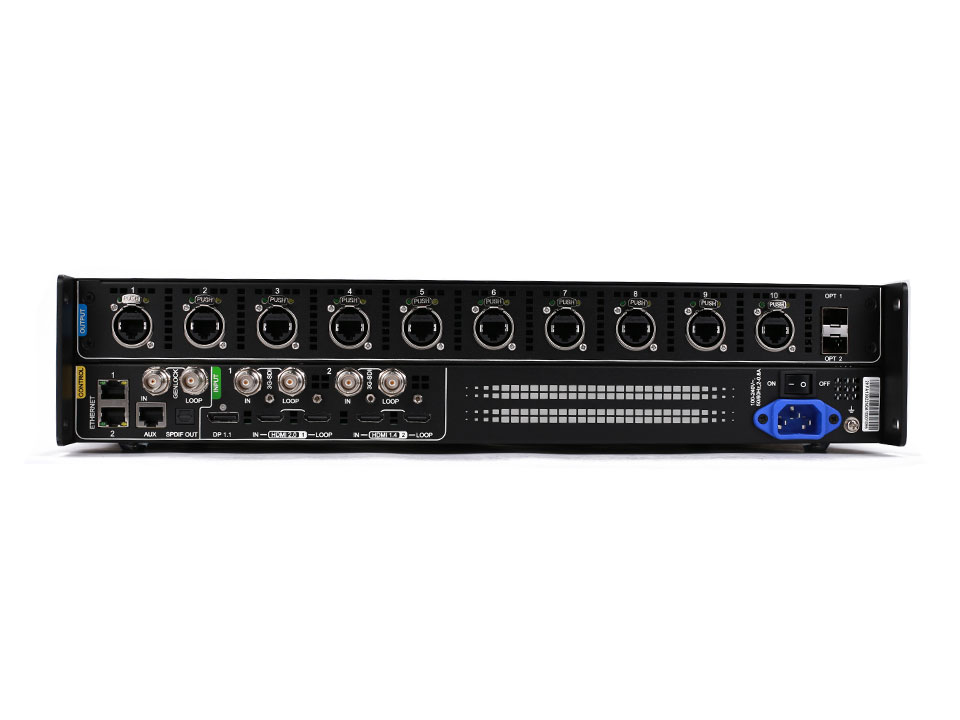

Inputs:
Multiple types of inputs
− 1x HDMI 2.0 (with loop through)
− 1x HDMI 1.4 (with loop through)
− 1x DP 1.1
− 2x 3G-SDI (with loop through)
10-bit and 8-bit video inputs

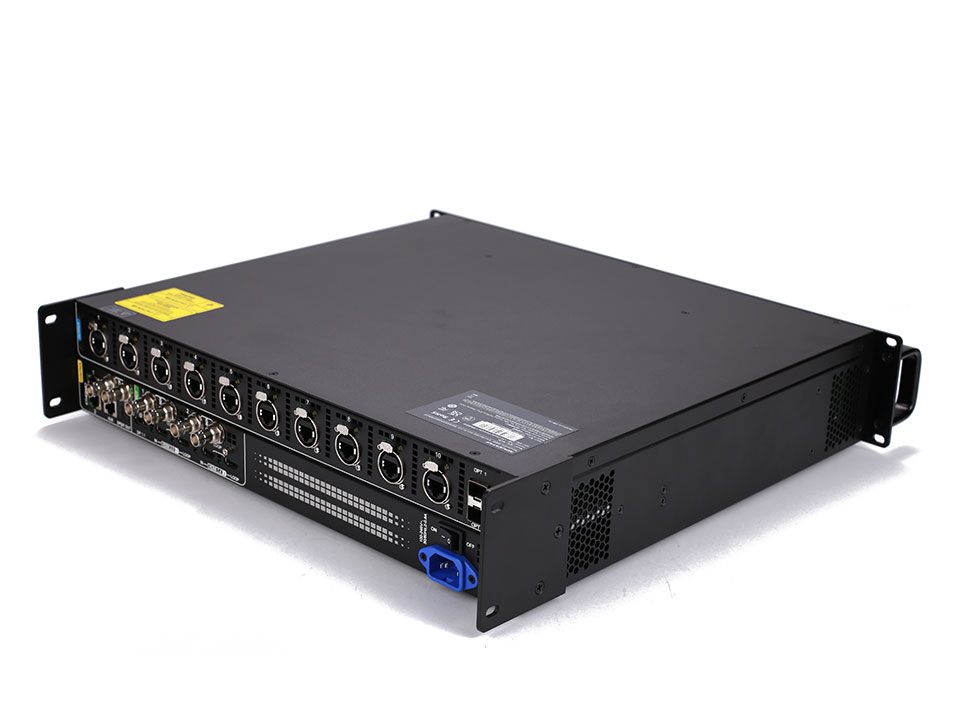

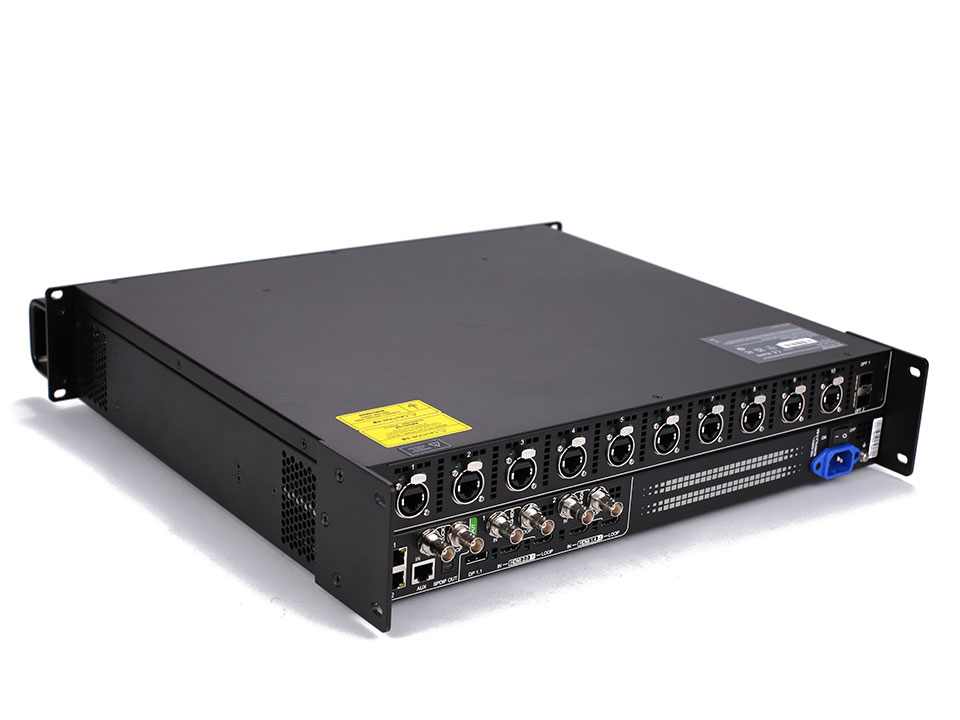

Outputs:
3 types of outputs
− 10x Gigabit Ethernet ports, load capacity up to 6.5 million pixels
− 2x 10G optical ports
− 1x SPDIF digital audio port
3 types of controls
− 1x Genlock signal input (with loop through)
− 2x Ethernet control ports
− 1x Auxiliary port

Features:
Power input: 100-240V~, 50/60Hz, 2-0.8A
Max power: 55 W
Operating Temperature: –20ºC to +50ºC
Humidity: 0% RH to 80% RH, non-condensing
Storage Temperature: –30ºC to +80ºC
Size: 482.6 mm × 94.2 mm × 466.7 mm
Weight: 7.2KG
