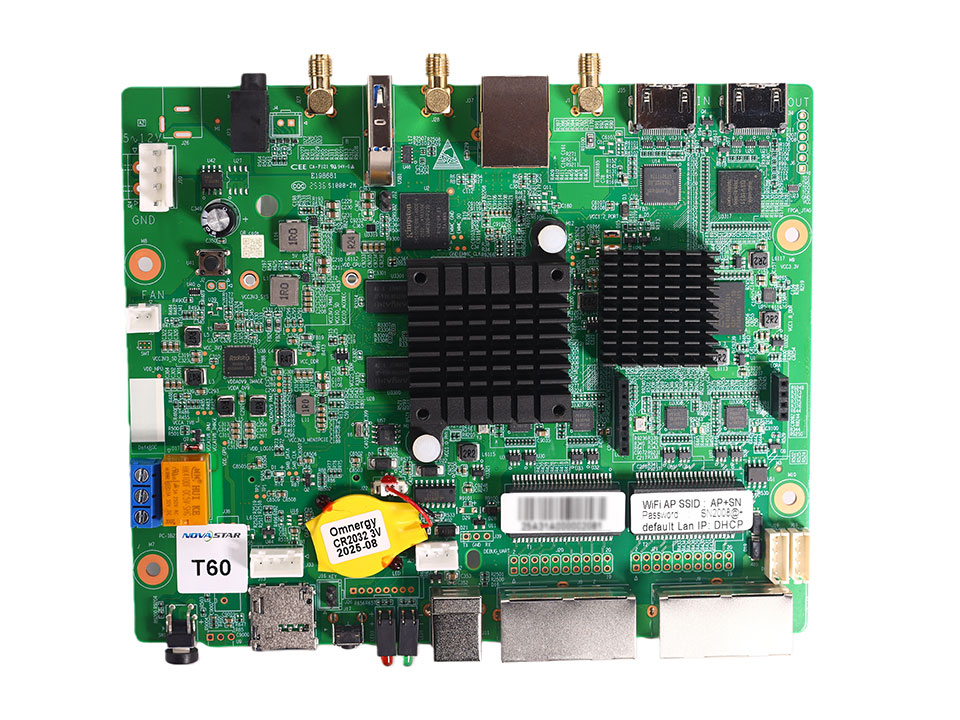

NovaStar T60 Multimedia Player

Beschreibung

NovaStar T60 Multimedia Player is a next-generation multimedia player engineered for professional full-color LED display systems. Combining playback, sending, and intelligent control capabilities in a single compact unit, the T60 enables seamless content publishing and remote management from computers, smartphones, or tablets—anytime, anywhere—via NovaStar’s cloud-based VNNOX platform. It is ideal for commercial applications such as fixed displays, retail signage, lamp-post screens, chain store advertising, door heads, and smart city deployments.

At its core, the T60 features a powerful quad-core ARM Cortex-A55 processor running at 1.8 GHz, paired with 1 GB RAM and 32 GB internal eMMC storage. It runs on Android 11 and supports hardware-accelerated decoding of high-resolution video, including 4K (up to 4096×2304) content. The device can simultaneously play multiple streams—such as 1×4K, 2×1080p, 4×720p, or 6×360p videos—depending on codec and resolution (4K playback requires H.264, H.265/HEVC, or VP9).

The T60 supports a maximum loading capacity of 2,300,000 pixels, with screen dimensions up to 4096 × 4096 pixels. Both standard and custom resolutions are supported in synchronous and asynchronous modes, provided the pixel clock does not exceed 153 MHz.

Connectivity is exceptionally versatile:

• 4× Gigabit Ethernet ports (configurable as all primary or 2 primary + 2 backup) for robust LED data output
• 1× HDMI 1.3 input (synchronous mode): accepts up to 1920×1200@60Hz, with automatic full-screen scaling (downscaling only; source must be ≥ screen resolution)
• 1× HDMI 1.3 output: supports loop-through, up to 1920×1200@60Hz, HDCP 1.4 compliant
• USB 3.0 Type-A port: for USB playback, firmware upgrades, and storage expansion (supports 2–128 GB drives, FAT32/NTFS; max file size <4 GB)
• USB Type-B port: for direct PC connection and control
• Gigabit Ethernet control port: for LAN or internet-based publishing
• Built-in dual-mode Wi-Fi (2.4 GHz): can operate as both access point (AP) and station (STA) simultaneously
• Optional 4G/LTE support via user-installed module (SIM slot included)

Network priority follows: Wired > Wi-Fi > 4G. The device also supports multi-screen synchronous playback, enabled via NTP, GPS (with optional antenna), or RF time synchronization (with optional RF module)—though enabling sync halves available decoding capacity.

Additional features include audio output via 3.5 mm stereo jack (48 kHz fixed sample rate) and relay control (max 30 V DC / 250 V AC, 3 A) for external power management.

Media support includes:

• Images: JPEG (sRGB/Adobe RGB), BMP, PNG, WebP (up to 4096×2304); GIF (up to 1920×1088)
• Video: H.265 (60 fps, 100 Mbps), H.264 (30 fps, 80 Mbps), VP9, MPEG-4, MJPEG in MP4, MKV, MOV, AVI, FLV, RMVB

The T60 operates from DC 5–12 V, with a max power draw of 18 W (25 W recommended supply). It functions in temperatures from –20°C to +60°C and humidity up to 80% RH (non-condensing). Dimensions: 165.0 × 146.4 × 21.2 mm; weight: 197.6 g.

Certified with CE, FCC, IC, and MIC, the T60 meets global regulatory standards.

In summary, the T60 Multimedia Player delivers exceptional processing power, flexible I/O, cloud integration, and enterprise-grade reliability—making it a premier choice for advanced, scalable LED display solutions worldwide.
