P5 LED Zimmer Kabinett

SMD LED module
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.

Module: P5 SMD LED module (8 PCS)
Pixel pitch: 5mm
Pixel composition: 1R 1G 1B SMD 3528
Module Size (W *L)mm: 320 x 160
Module Size (W * L)Pixel: 64x 32
Cabinet Size (W*L* H)mm: 640 X 640*70


20 vorrätig

Artikelnummer: P5 cabinet Kategorie:

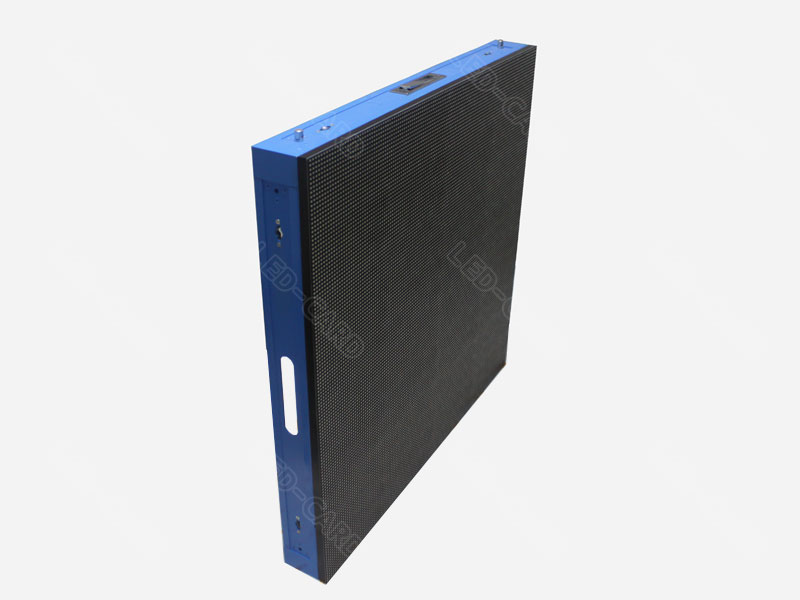

P5 LED indoor Cabinet

< Free of DHL shipping >

Pixel pitch
Pixel composition
1R 1G 1B SMD 3528
Module Size (W *L)mm
320 x 160
Module Size (W * L)Pixel
64x 32
Cabinet Size (W*L* H)mm
640 X 640*70
Cabinet Resolution (W *L)pixels
128 X 128
Display Screen
16,384 grey grades, totally 4,398 x 109M colors
Max brightness(CD/m²)
Power consumption(Max)
Power consumption(average)
Power supply
88-132VAC/ 176-264VAC selected by switch
Viewing distance (Meter)
10 – 200
Brightness adjustment
256 grades adjust
Viewing angle
110 degree
Refresh Frame Frequency
>120 frames/second
Refresh Ration
Continuous work time
>24 hrs
Life time
Operating temperature
-20°C ~ +60°C
Operating humidity
10% ~ 90%RH
Waterproof standard
IP43 Front / IP43 back
Linsn Control system
Control method
Synchronour control with PC, instance display,
communication mehtod internet
Video input
DVI, Composite video, RGE, VGA,S-Video
Brightness control
Program control or manual control available
Gamma correction
thin power (1 PCS)
Control card
Linsn RV908 (1 PCS)

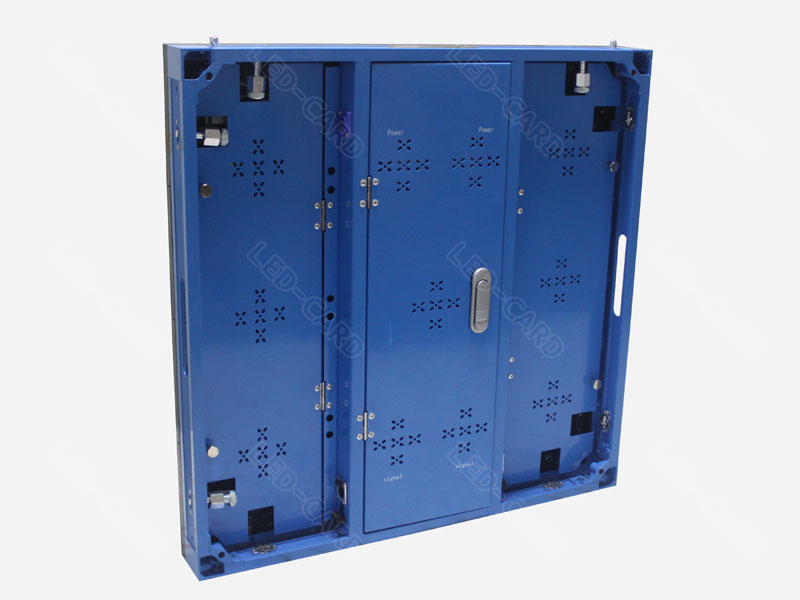

Cabinet material aluminium 640*640*70

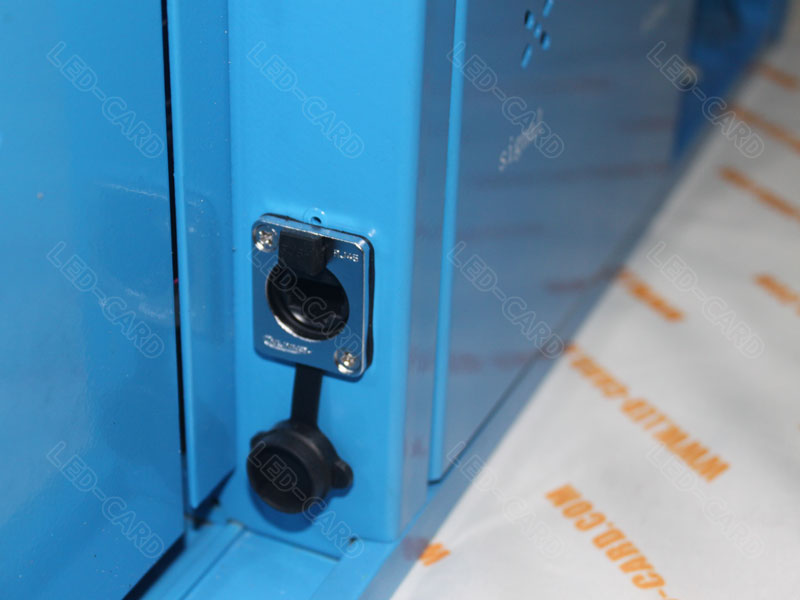

Included industrial connector and cable
no includ the Flight box

No include sending card, suggest use the Linsn TS802 sending card.
minimum order quantity: 3 PCS

You'd better buy all modules at a time for one led screen, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
So our modules can't work together with your previous or later modules.
If you have some other special requirements, please contact our online sales.
