MEANWell SP-200-5 fuente de alimentacion conmutada

MEANWELL
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.

Low cost Œhigh reliability
Built-in EMI filter
Low output ripple&noise
Protections Over load/Short circuit
1 year warranty
Power: 200W

$52.00

Agotado

SKU: SP-200-5 Categoría:

Descripción

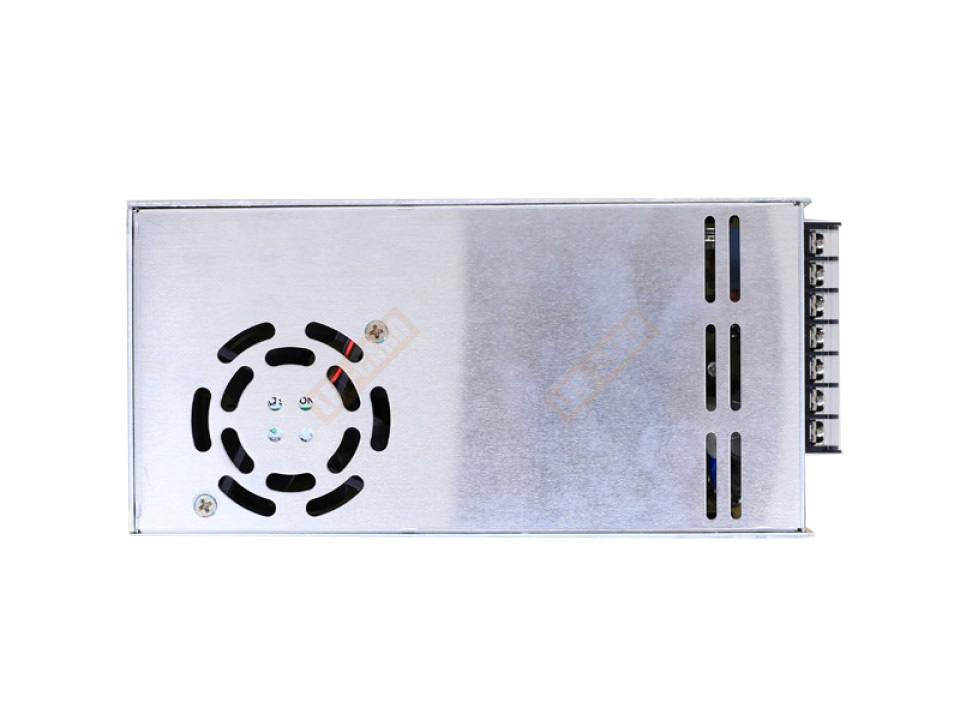

MEANWell SP-200-5 Switching Power suppply:
Low cost Œhigh reliability
Built-in EMI filter
Low output ripple&noise
Protections Over load/Short circuit
1 year warranty
Power: 200W
Case:806 Size:199×119×50mm
AC input voltage range———88-132VAC/ 176-264VAC selected by switch
Input frequency———————————47-63Hz
AC inrush current——————————–Cold start,40A/230VAC
DC adjustment range—————————–±10% rated output voltage
Line regulation(full load)————————≤0.5%
Output over load protection——-110%-150% hiccup mode,auto-recovery
Rise,hold up time——————–50mS,20mS at full load(typical)
Withstand voltage——-I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature—– -10~+40 @100 Œ+60 @60% load
Storage temperature—– -20 +85 Œ20%~95%RH(non condensing)
Safety standards——Design refer to GB4943,UL60950-1,EN60950-1
EMC standards——- Design refer to GB9254,EN55022 class A
Cooling method———————Free air cooling convection

Información adicional

Peso 0.8 kg
