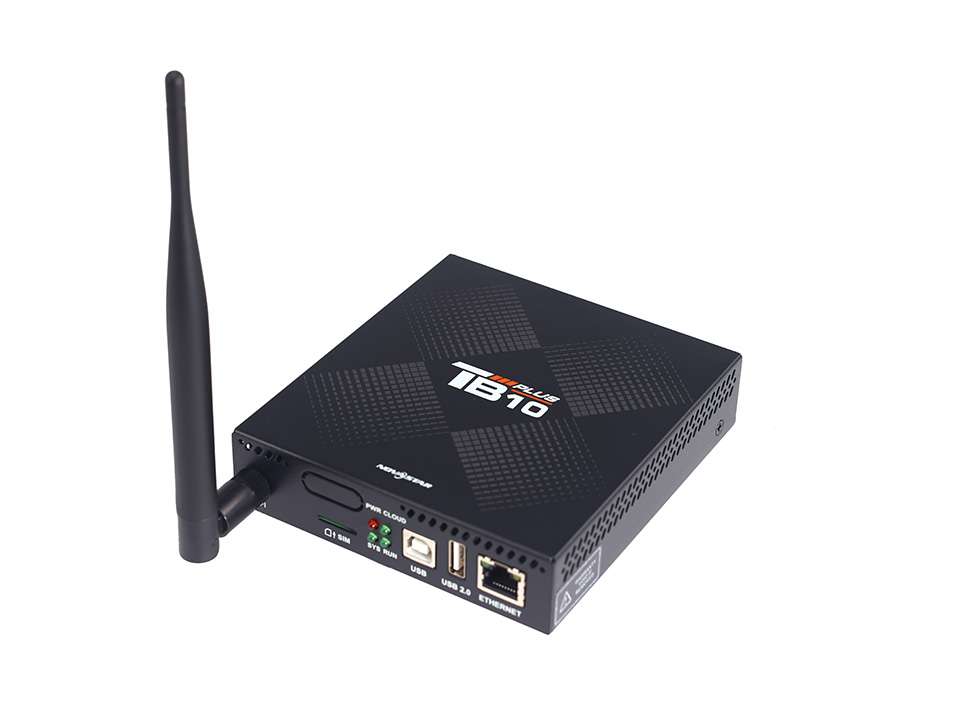

Novastar TB10 Plus Multimedia player

Descripción

TB10 Plus Specifications

Processor & Memory

• Quad-core ARM A53 @ 1.4GHz
• 2GB RAM + 32GB internal storage
• Supports USB storage expansion (up to 128GB via Type-A port, FAT32/Ext4 only)

Video Performance

• Hardware 4K decoding (4096×2304 max)
• Playback capacity:
  • 1× 4K video | 3× 1080p | 8× 720p | 16× 480p | 20× 360p
• Supported codecs: H.265, H.264, VP9, MPEG-4, AVS2 (up to 60fps, 100Mbps max bitrate)
• Container support: MP4, MKV, AVI, MOV, FLV, RMVB

Pixel Handling

• Max load: 650,000 pixels per Ethernet port
• Resolution modes:
  • Standard: 2048×2048 pixels
  • Ultra-wide: 8192×2048 pixels

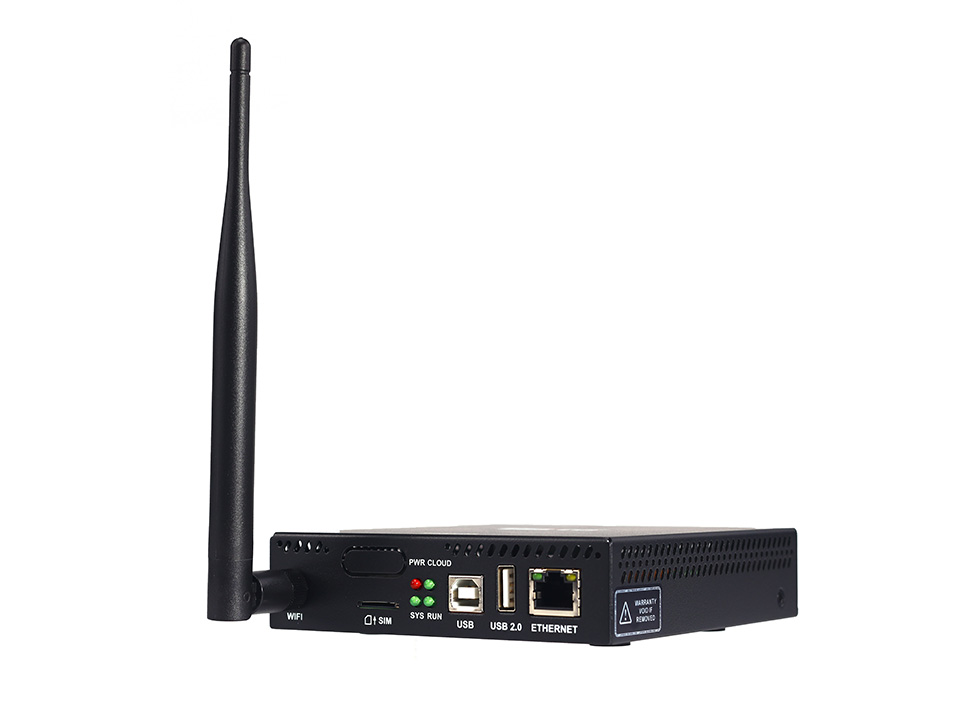

Connectivity

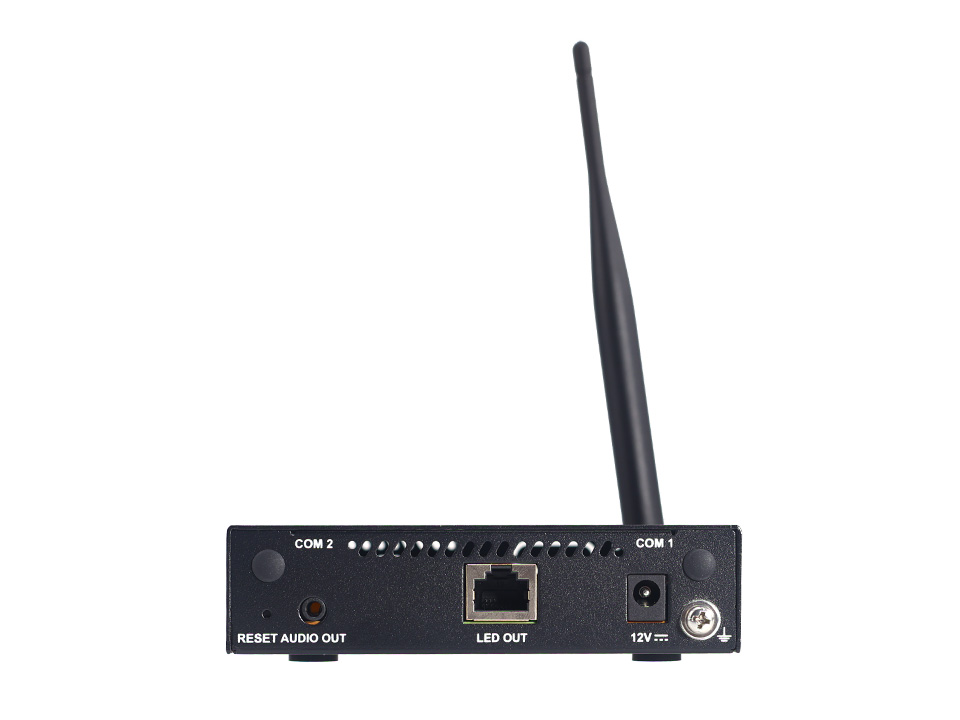

• Output:
  • 1× Gigabit Ethernet (LED display output)
  • 1× 3.5mm stereo audio (fixed 48kHz sample rate)

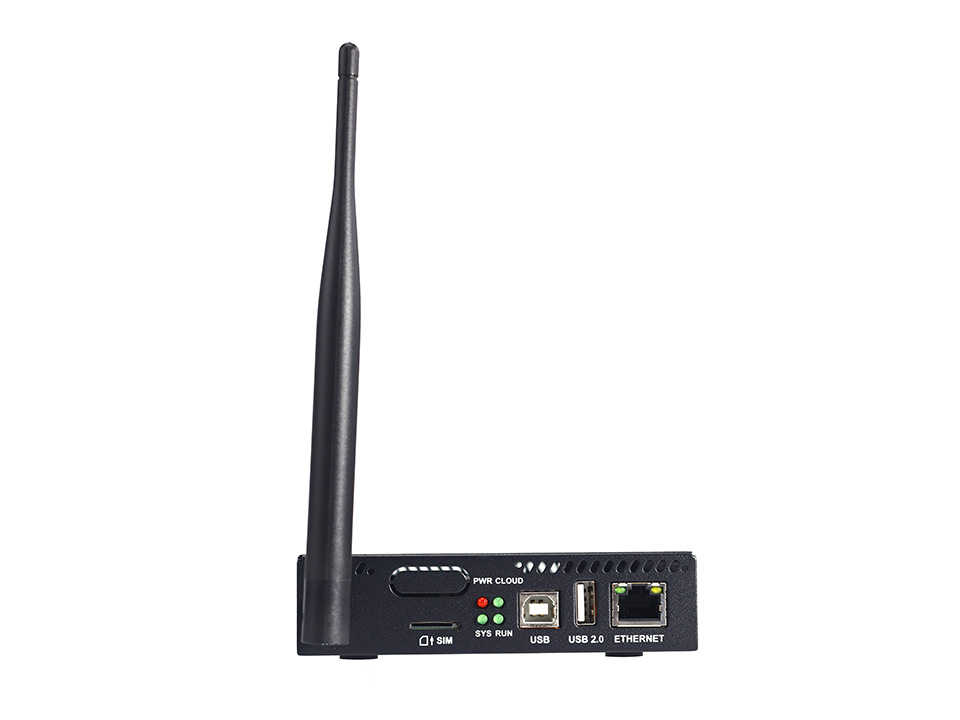

• Control:
  • 1× USB 2.0 Type-A (playback/upgrade)
  • 1× USB Type-B (direct computer control)
  • 1× Fast Ethernet port (LAN/WAN control)
• Optional 4G module support (module not included)
• Dual Wi-Fi: AP + Station modes simultaneously

Features

• Multi-screen synchronization:
  • NTP
  • GPS (requires 4G module)
  • RF (requires RF module)
• Sensor support: Light, temperature, humidity
• Cloud-based remote management (VNNOX)

Physical Specs

• Dimensions: 141.2 × 120.0 × 33.5 mm
• Weight: 465.6g (net)
• Power: DC 5-12V input, ≤15W consumption
• Operating temp: -20°C to +60°C
• Certifications: CE, FCC, IC, CQC

Additional

• Android 10 OS + FPGA programming
• IP20 rating (non-waterproof)
• Accessories: Power adapter, Wi-Fi antenna, mounting racks, screws

Summary: The TB10 Plus is a compact Android-based media player designed for commercial LED displays. Its quad-core processor handles 4K content while driving up to 650K pixels. Key strengths include multi-source control (mobile/PC/tablet), flexible connectivity (Ethernet/4G/Wi-Fi), and cloud-based monitoring. Optional modules enable GPS/RF synchronization for large-scale deployments.
