P5 Puerta afuera LED de SMD intemperie

SMD LED module
Comparar

Pixel pitch: 5mm
Module Size: 160X160 mm
Model Pixel: 32X32 Pixels
lattice density: 40000 dots/square meter
Pixel form: 1R1PG1GB SMD 2727

$31.20

646 disponibles

SKU: P5 SMD Out Categoría: Etiquetas: ,

Descripción

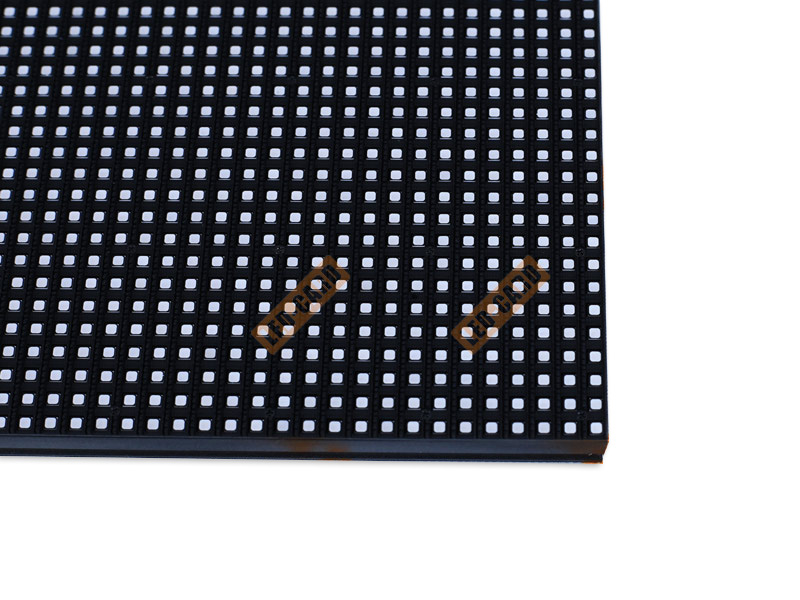

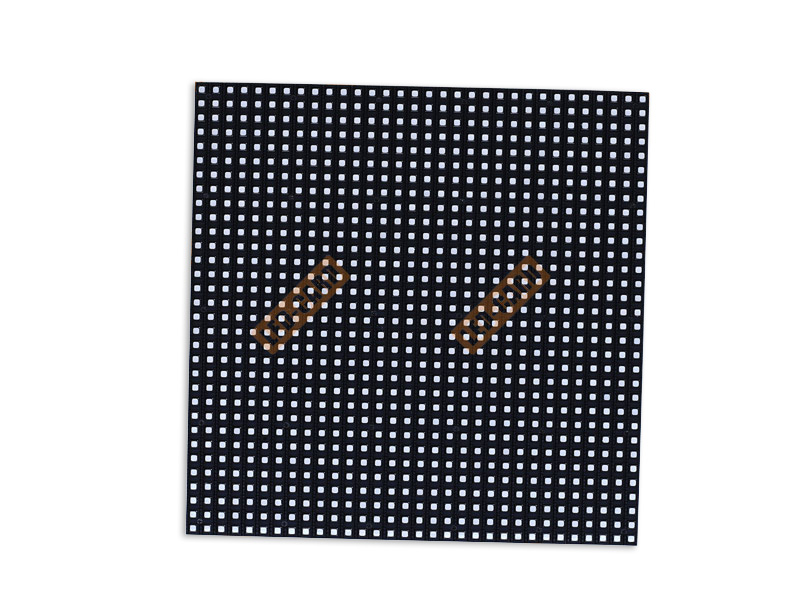

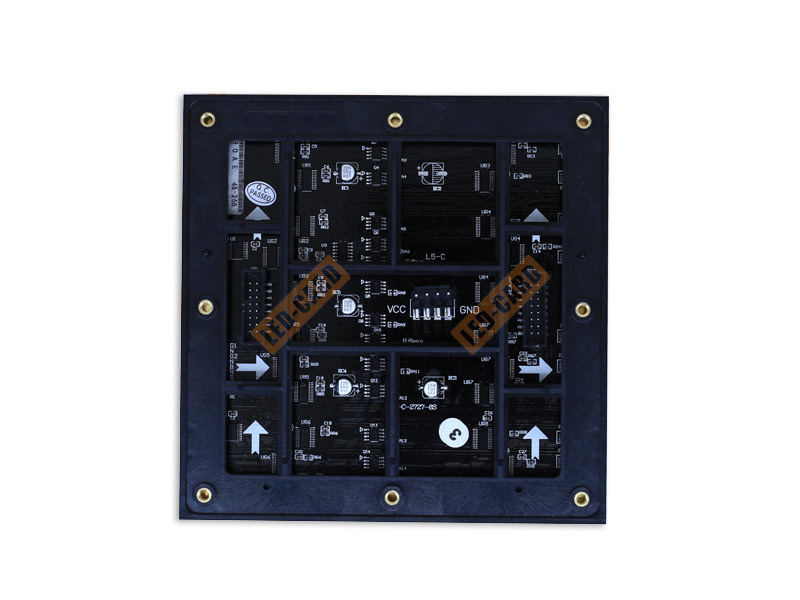

P5 Outdoor SMD LED Module


Pixel pitch
5mm
Module Size
160X160 mm
Model Pixel
32X32 Pixels
lattice density
40000 dots/square meter
Pixel form
1R1PG1GB SMD 2727 ( Nationstar )
Best viewing distance
4m~30 m
Max power consumption
950W/square meter
Ave power consumption
500W/square meter
Max power per module
25W
warranty
1 year
Drive mode( Optional)
Constant current 1/8 scan
Control system
DVI card+Full color control card
Pixel type
Real pixel
refresh frequency
>=400HZ
Horizontal View Angel
> 110 degree
Working Environment
Temp:-20Celsius degree-+60Celsius degree
Humidity : 10%-90%
Working voltage
DC 5V
Lifetime
>=100000 hours
Gray scale
12 bit/ 1 color
Color display
manual adjust
Brightness
6500 cd/square meter
Blind spot rate
<0.00001
Front Waterproof Class
IP66
Software
Support window series system

You’d better buy all modules at a time for one led screen, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
So our modules can’t work together with your previous or later modules.
If you have some other special requirements, please contact our online sales.
