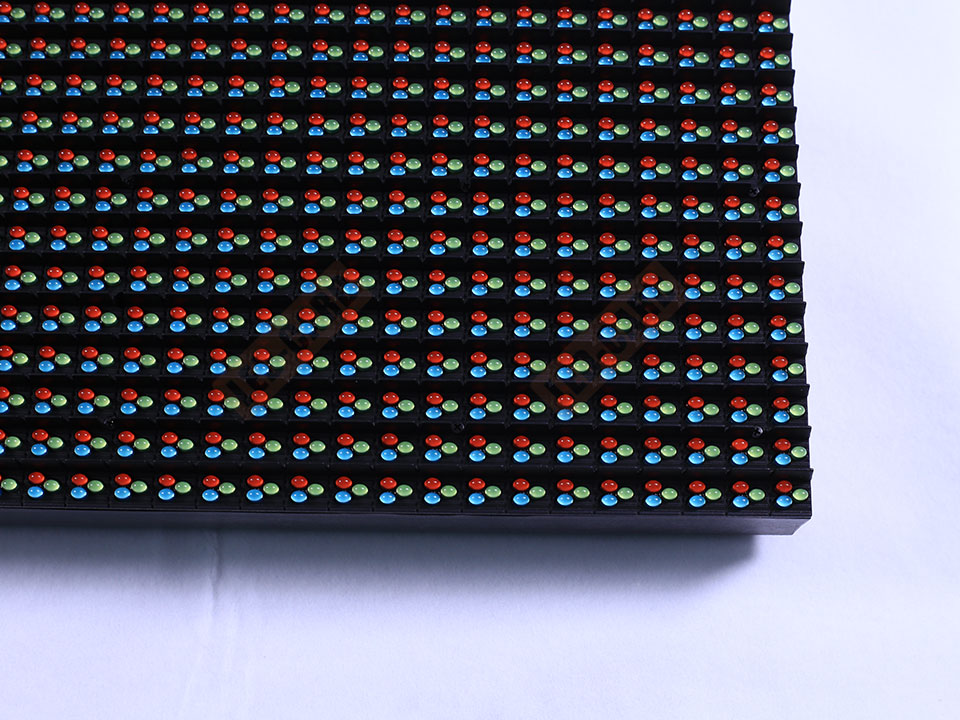

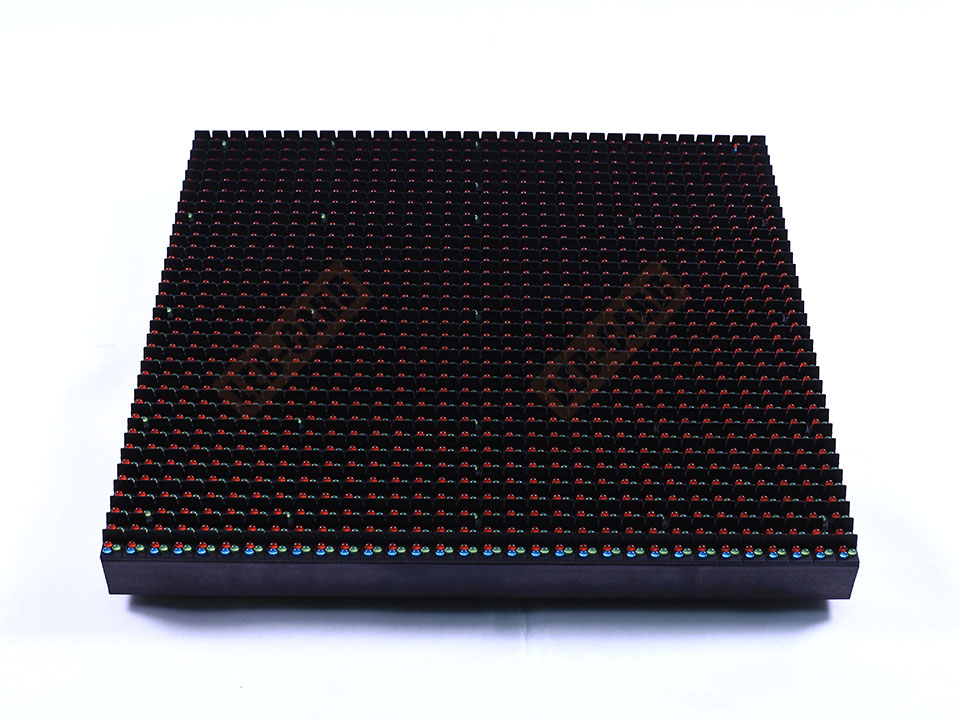

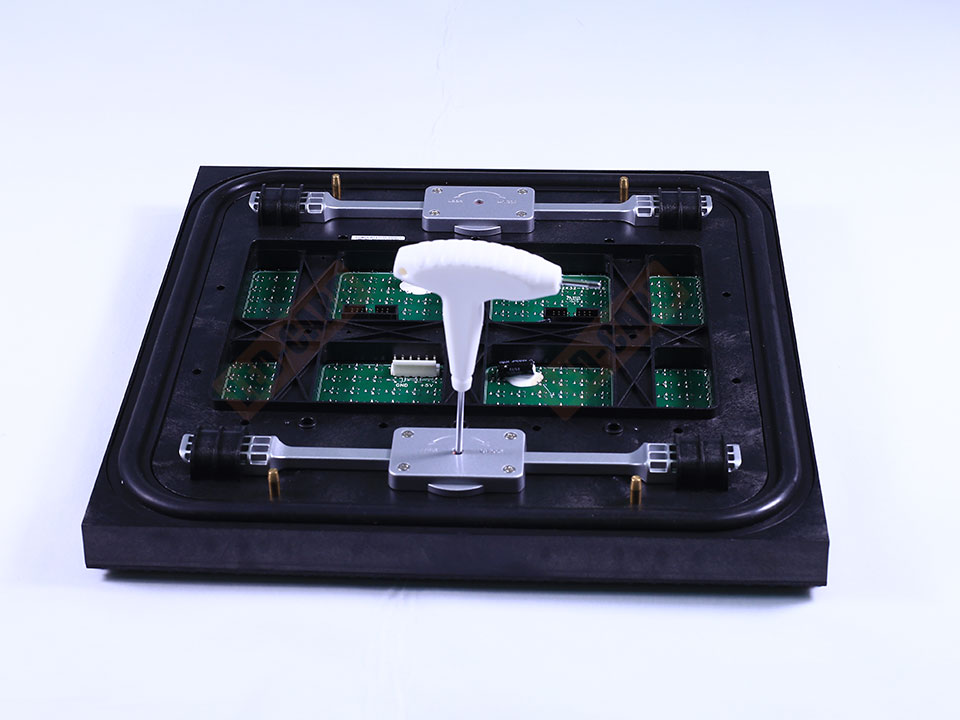

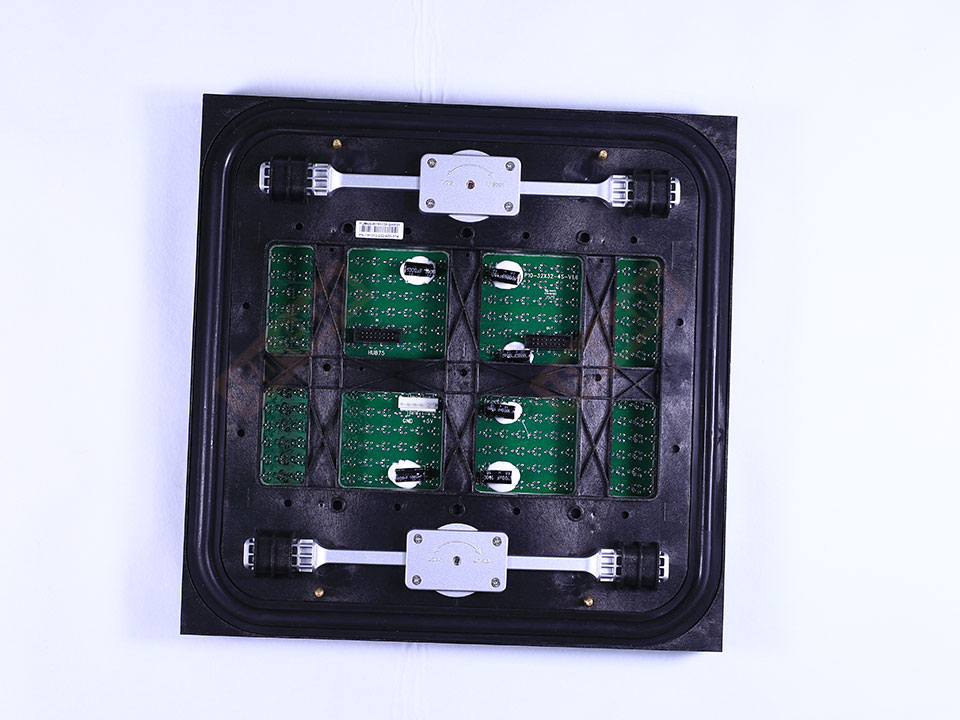

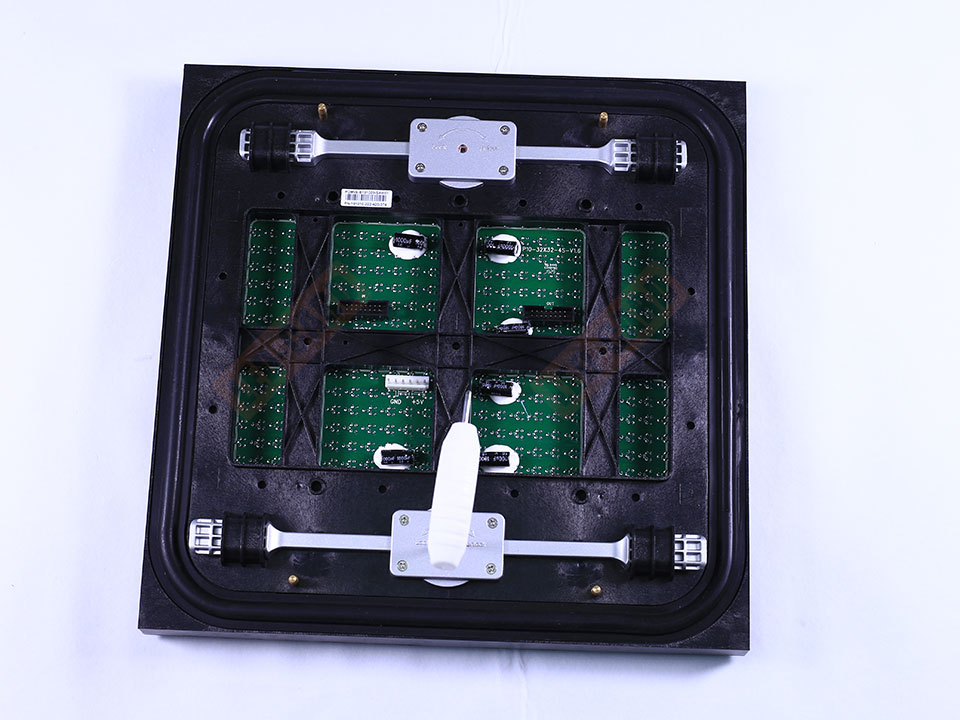

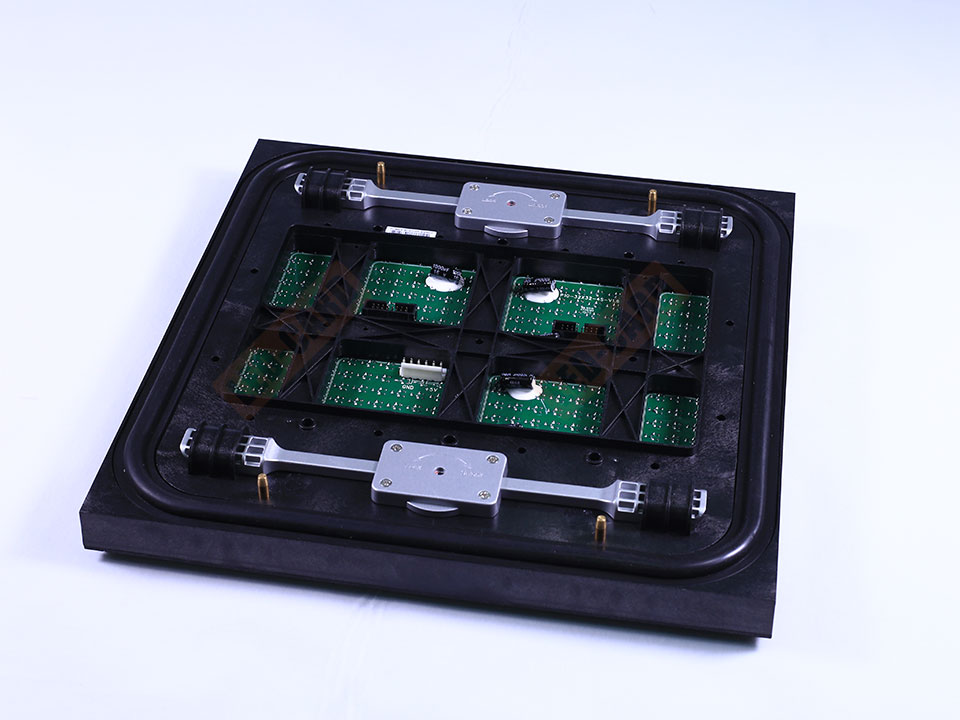

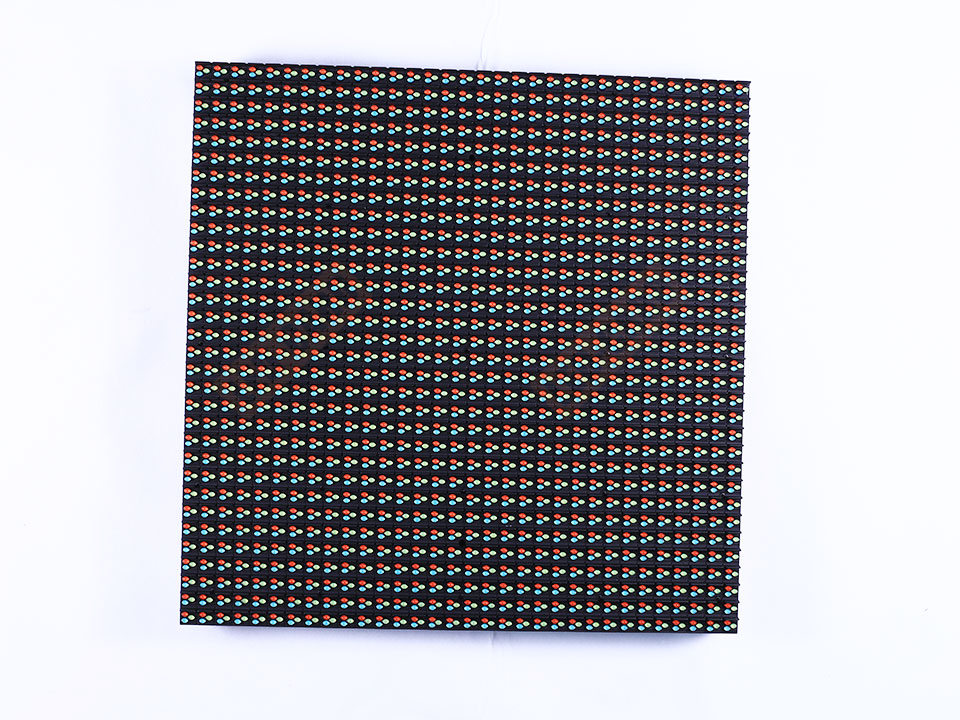

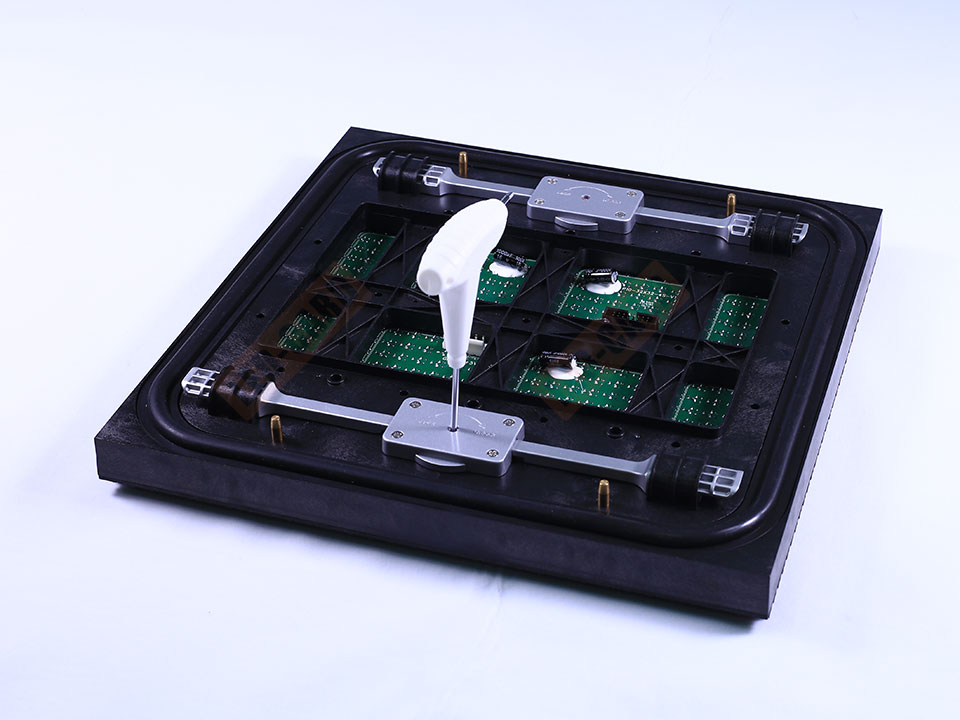

P10 DIP Front Install Module
Pixel pitch: 10 (mm)
Brightness: 7000 nit
Driver mode: 1/4 Duty
Weight: 2.4 (kg)
Pixel configuration: DIP1R1G1B 346
Module dimensions (W×H): 320×320 (mm)
Module dimensions (W×H): 12.6×12.6(Inch)
Pixel density: 10000 pixels/sq.m.
Refresh rate: ≥1920 Hz
Gray scale per color: 16384 level
Best View distance: 10-250M
Viewing angle (H/V): 110/70deg
IP rating (Front/Rear): IP65/IP54
Power consumption (max/avg): 500/150 W/sq.m.
Max power per module: 50W
Input voltage (AC): DC 5V
Operating temperature: -20~+ 50℃
Operating humidity: 10~90%
Source compatibility (with video processor): AV, S-Video, VGA, DVI, HDMI, SDI, DP
You’d better buy all modules at a time for one led screen, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
So our modules can’t work together with your previous or later modules.
If you have some other special requirements, please contact our online sales.
