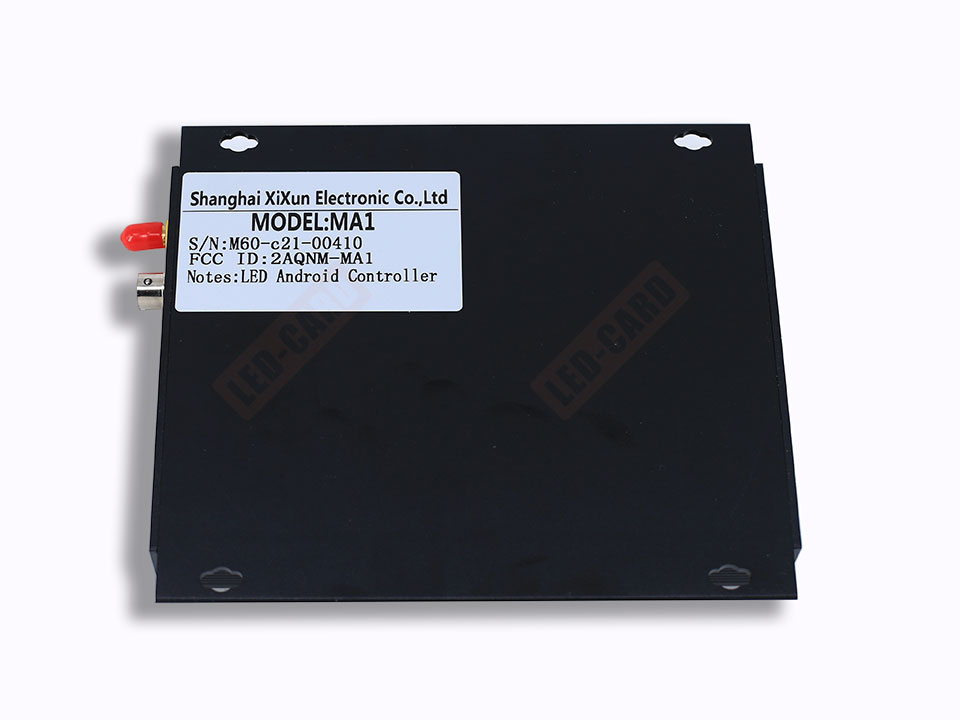

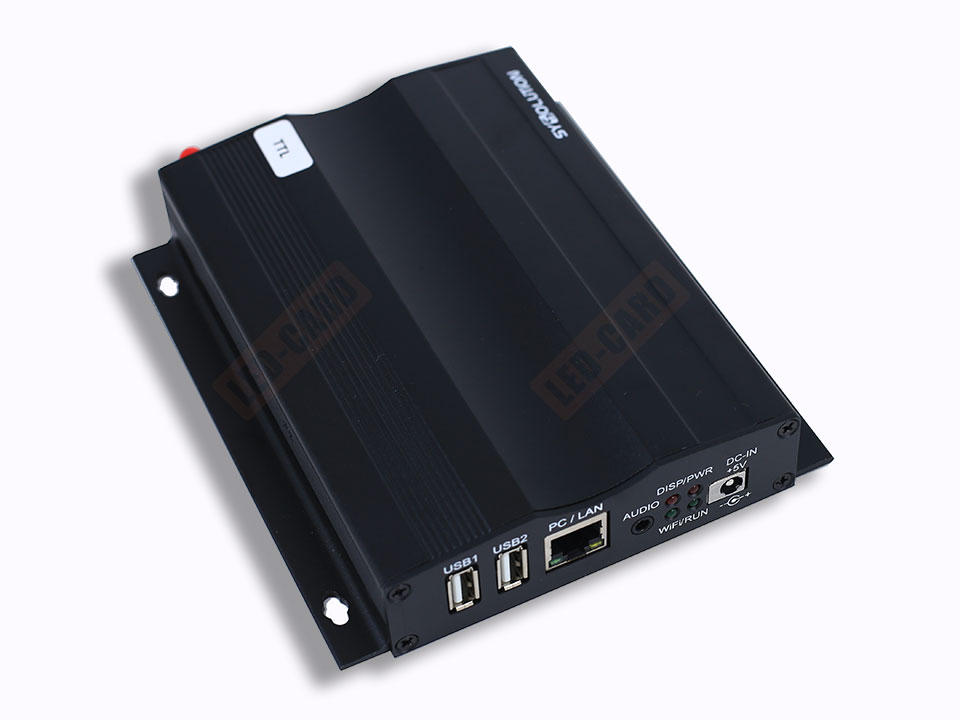

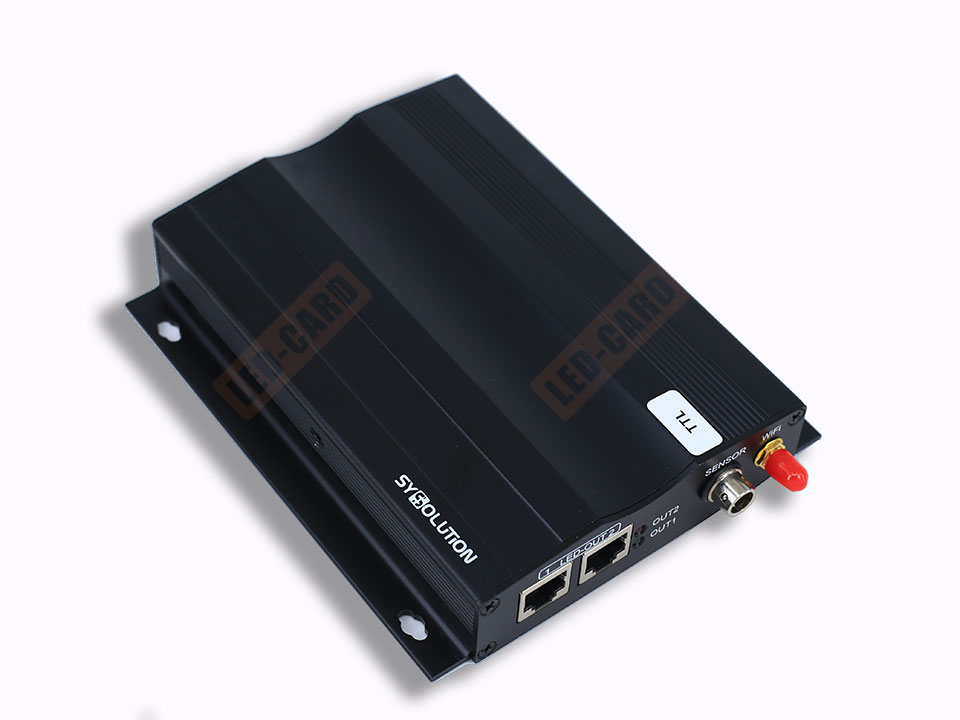

Xixun MA1 with the rapid development of LED industry, in some special fields,
wireless transmission needs to be supported. Control cards need to be
connected to the network via Wi-Fi, mobile phones can be controlled
meanwhile . In this Market, XIXUN MA1 is Launched to these needs and
can be configured wireless like a router without hassle of wiring.
1．On board Wi-Fi module to realize wireless communication.
2．Support AP and Station Mode.
3．3Support secondary development and cloud platform control.
4．Under stand-alone mode, the built-in WEB server supports local
WEB production to compatible with cross-platform systems, which includes
PC, iPhone, Android mobile, tablet and so on.
5．Video Hardware Decode and support 1080P.
6．Support mainstream video, image format and text editing.
7．Double-port dot capability 1920×1080.
8．Support full colour state to 32 scan.
9．High refresh, High brightness and High gravel Level.
10．Support all kinds of chips such as Macro-block (MBI series), chi
pone (ICN series), Sumatra (SUM series), MY-semi (MY series) .
11．8 GB Industrial Flash on board.
12．Support USB camera.
13．Support muti-function card R30E or R50, (5 – way relay switching
power, can connect temperature, humidity, brightness, infrared sensor,
14．Support saving parameter in receiving card ( with the
ninth-generation receiving card).
Operating Voltage （V） 4.5～5.5
MAX Operating Current（A） 2
Max Operating Consumption（W） 10
Operating Temperature （°C） －25～＋70
Storage Temperature（°C） -40℃ ~ 70℃，recommend
Operating Humidity (%) 10% ~ 90%，
Size （cm） 145.9（length）×129（width ）
