LYTEC SCL2008-C LED Anzeige Kontrolle

One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.

Two-color no gray
4032 *128 or 2048 *256 line of the line or 1024 *512 (field frequency 60Hz)
2048 *128 line, 1024 *256 or 512 *512 (field frequency 120Hz)
Tri-color no gray
1024 *256 (field frequency 120Hz)


583 vorrätig

Artikelnummer: SCL2008-C Kategorie:

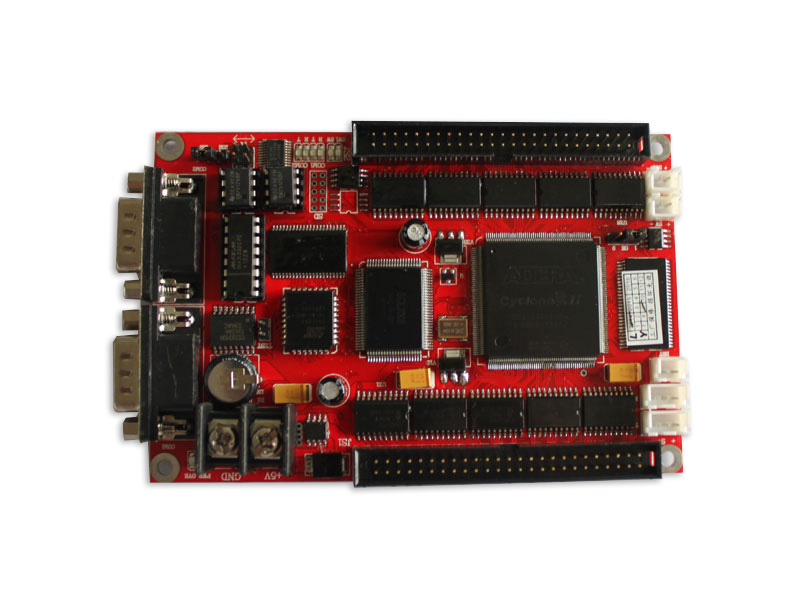

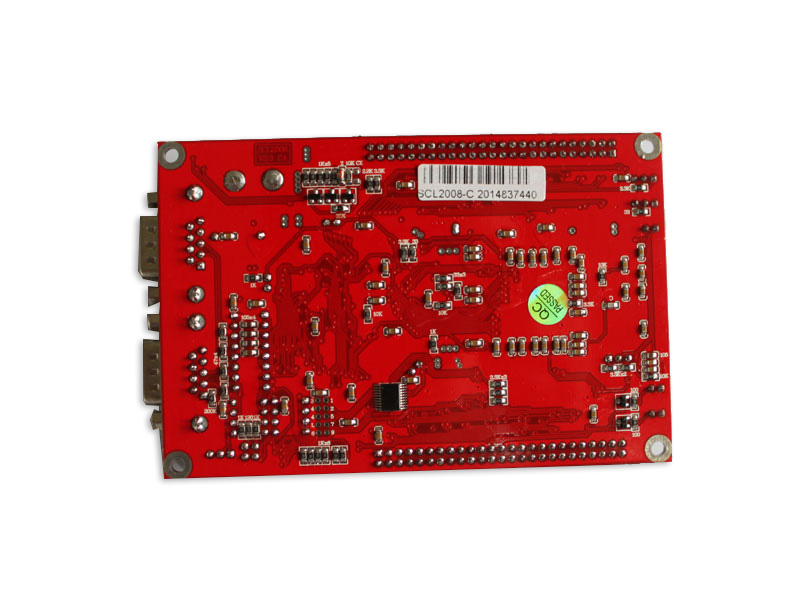

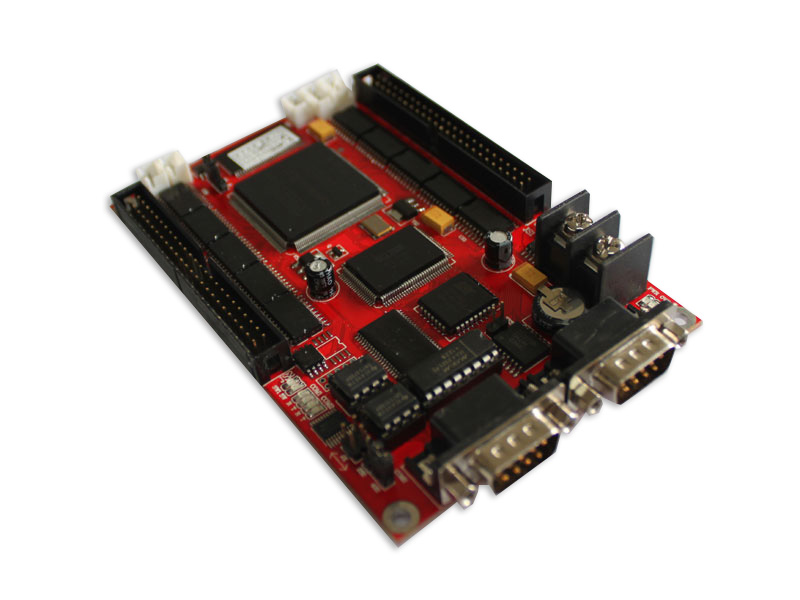

LYTEC SCL2008-C LED control panel (series connection)

Control range
Software Selection
Two-color no gray
4032 *128 or 2048
*256 line of the line or 1024 *512 (field frequency 60Hz)
*128 line, 1024 *256 or 512 *512 (field frequency 120Hz)
Tri-color no gray
*256 (field frequency 120Hz)

Software selection. Compatible sweep 16, 1/8 sweep, sweep 1/4 1/2 sweep and static, 31 automatic or manual brightness adjustment, software selection to reduce the scan clock frequency and adjust the scan clock duty cycle, more compatible with different design display board

The largest three arbitrarily divided into the play area, Flash animation support, BMP, and JPG images, Word documents, RFT text TEXT text, 15 kinds of animation effects, digital calendar and counting of anywhere in the font support for various parts of the world, can be manage up to 100 programs may designate any one player, support for infrared remote control to select the program, switch screen power supply, adjust the brightness

Storage space
Basic configuration of 4MB FLASH disk and 4MBRAM disk, 8M font storage space (secondary development)

Screen power control port, temperature, humidity, light collection port, two serial ports (SCL2008-C, RS232, RS485/RS422, for the external noise, air pollution and other data acquisition device) or a network port serial ports (SCL2008-N)

A dedicated 16-bit CPU.

Operating system
Completely independent research and development of efficient multi-process-specific operating system, storage space using the FAT16 file management

Secondary development support
Need all the functions and detailed programmers manual to provide secondary development, in the case of secondary development, support different fonts, different sizes of a variety of font, text color can be adjusted, automatic typesetting in the local area.

Zusätzliche Information

Gewicht 0.5 kg
