Meanwell LRS-50-5 Switching Power

MEANWELL
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.

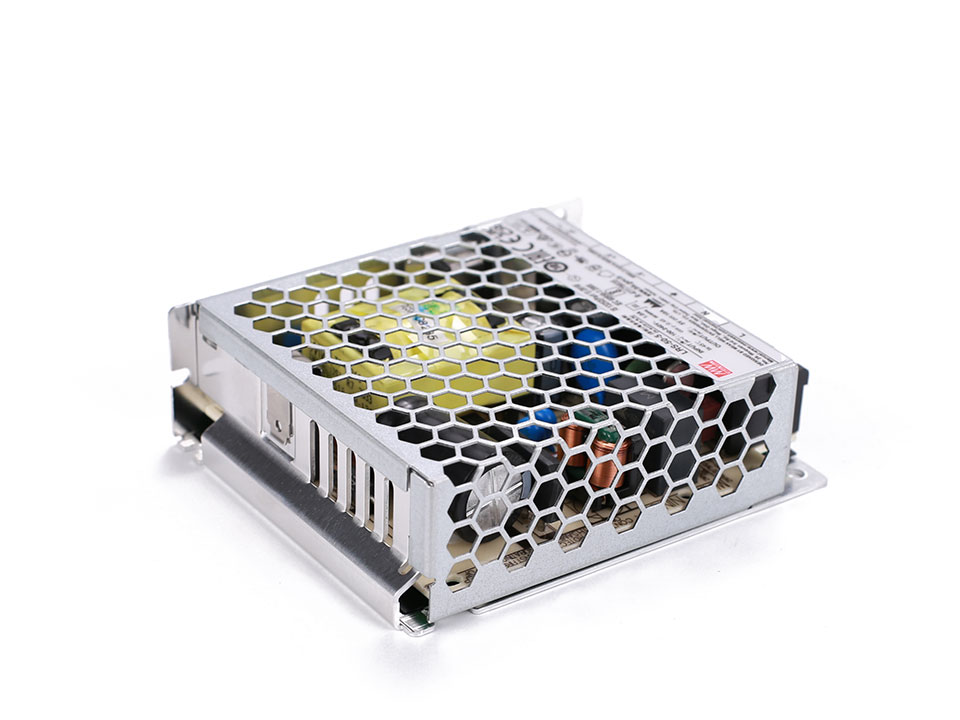

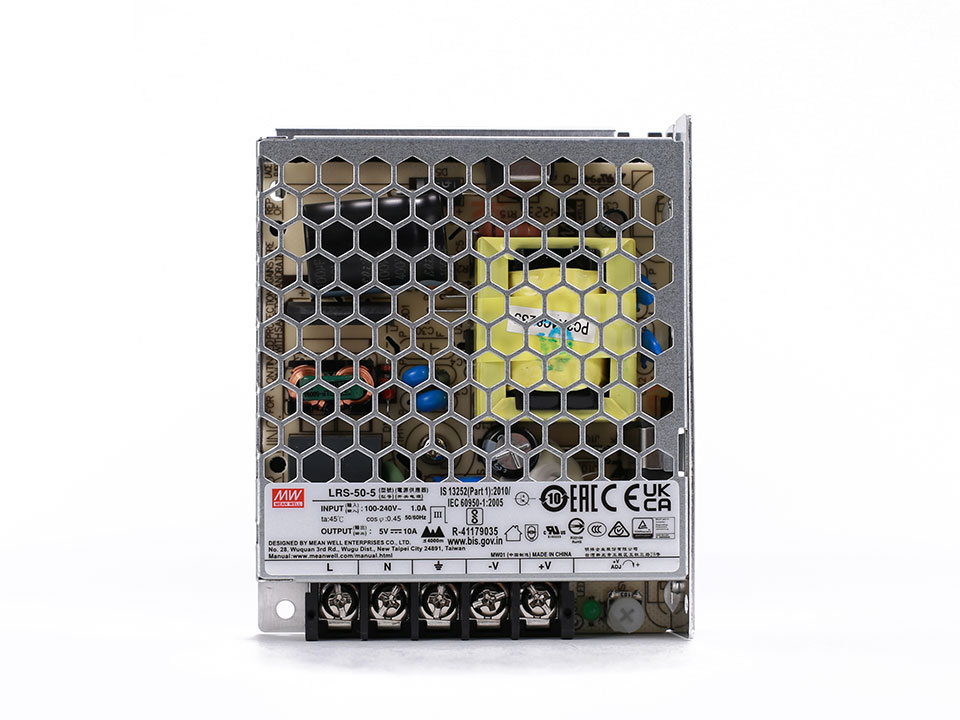

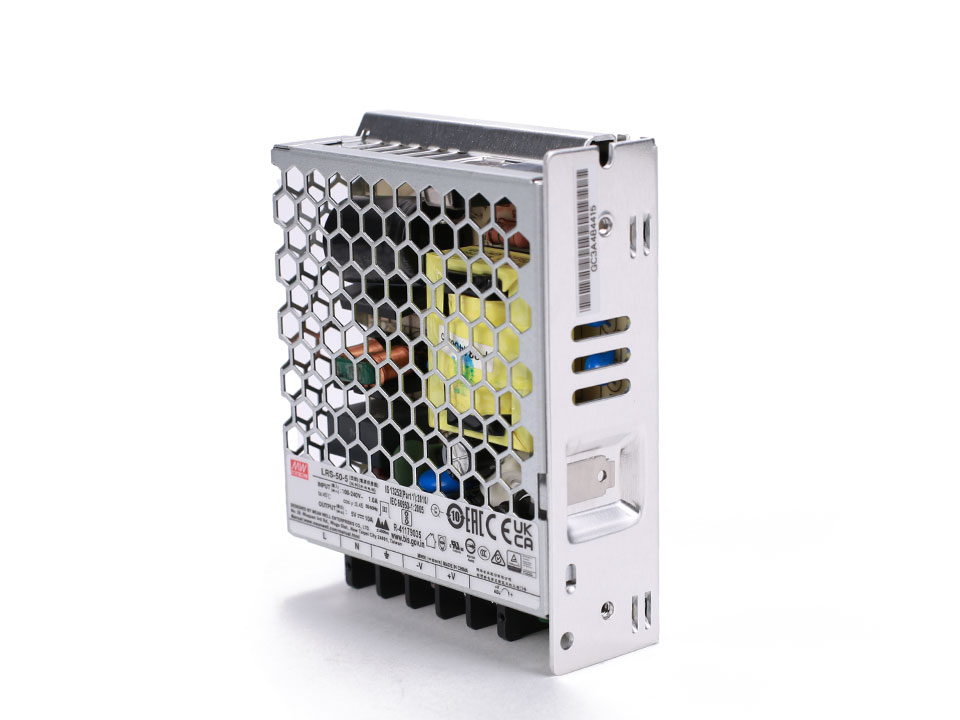

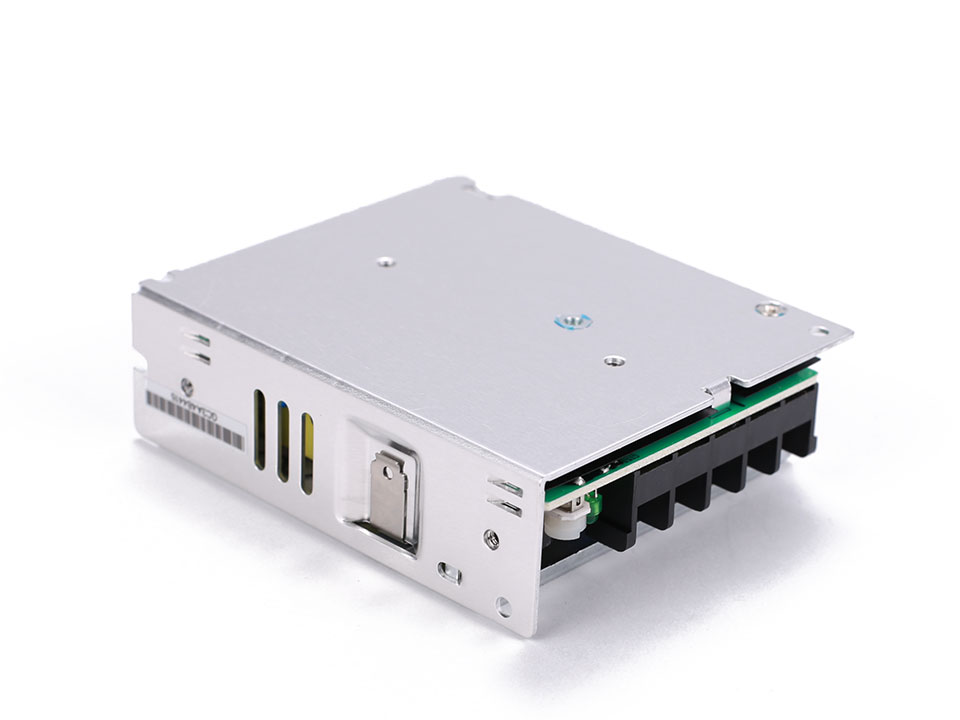

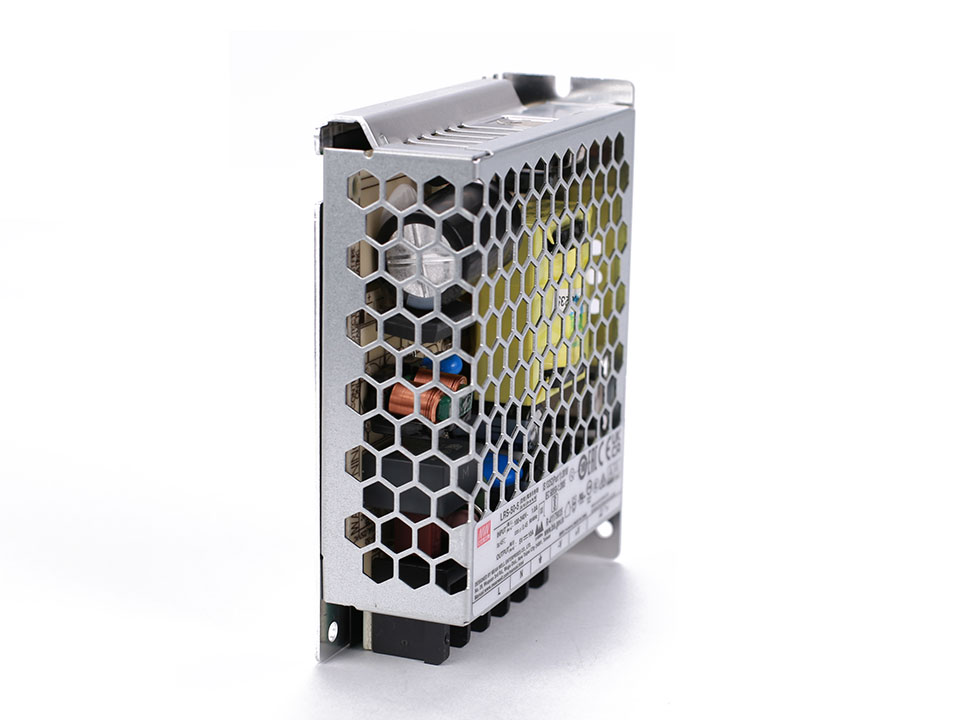

LRS-50-5 is a 50W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85~ 264V AC input, the entire series provides an output voltage 5V.

$11.00

Descripción

. Universal AC input 1 Full range
. Withstand 300VAC surge input for 5 second
. No load power consumption<0.3W
. Miniature size and 1U low profile
. High operating temperature up to 70C
. Protections: Short circuit 1 Overload 1 Over voltage
. Cooling by free air convection
. Compliance to IEC/BS EN/EN 60335-1(PD3) and
IEC/BS EN/EN61558-1, -2-16 for household appliances
. Operating altitude up to 5000 meters (Note.8)
. Withstand 5G vibration test
. High efficiency, long lifte and high reliability
. LED indicator for power on
. Over voltage category II
. 100% full load burn-in test

Output:
Power: 5V 10A 50W
Voltage Tolerance: 1%
Setup, Rise Time: 1000ms, 30ms/230VAC 2000MS,30ms/115VAC at Full load

Input:
Voltage Range: 85-264VAC / 127-431VDC
Frequency: 47-63HZ
Efficiency: 83%

Over load: 110-150% rated output power
Over Voltage: 5.9-7.3V
Working Temp: -60 to +70 degree
Working Humidity: 20-90% RH non-condensing

Authentication: BSMI BIS CCC UL TUV EAC CB EMC CE UK KC
Size: 99*82*30mm
Weight: 0.23KG

Información adicional

Peso 0.25 kg
Dimensiones 10 × 8.2 × 3 cm
