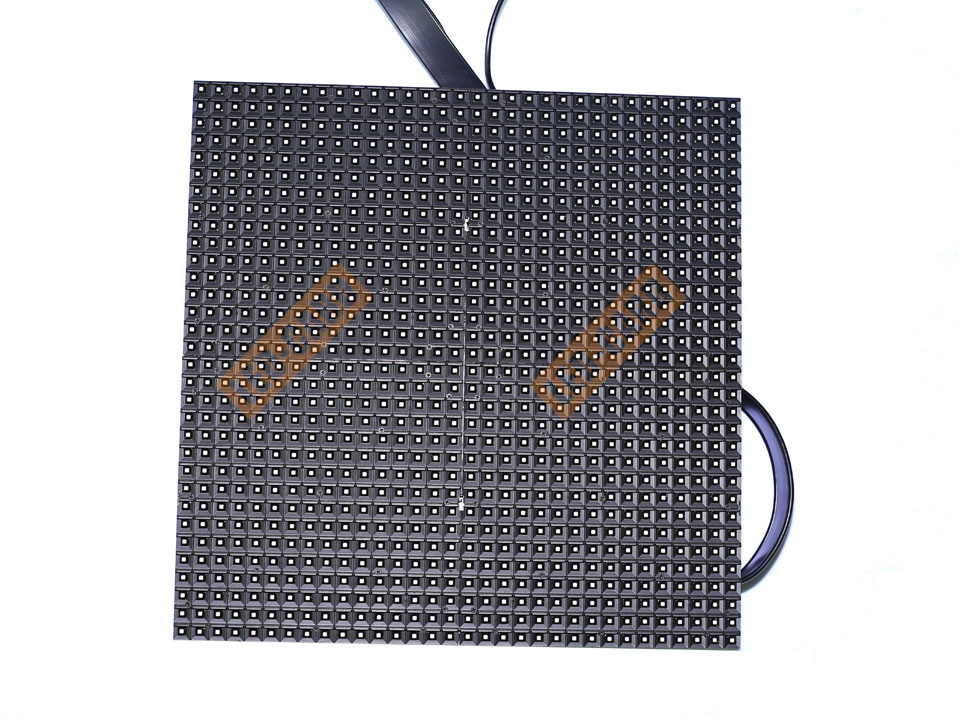

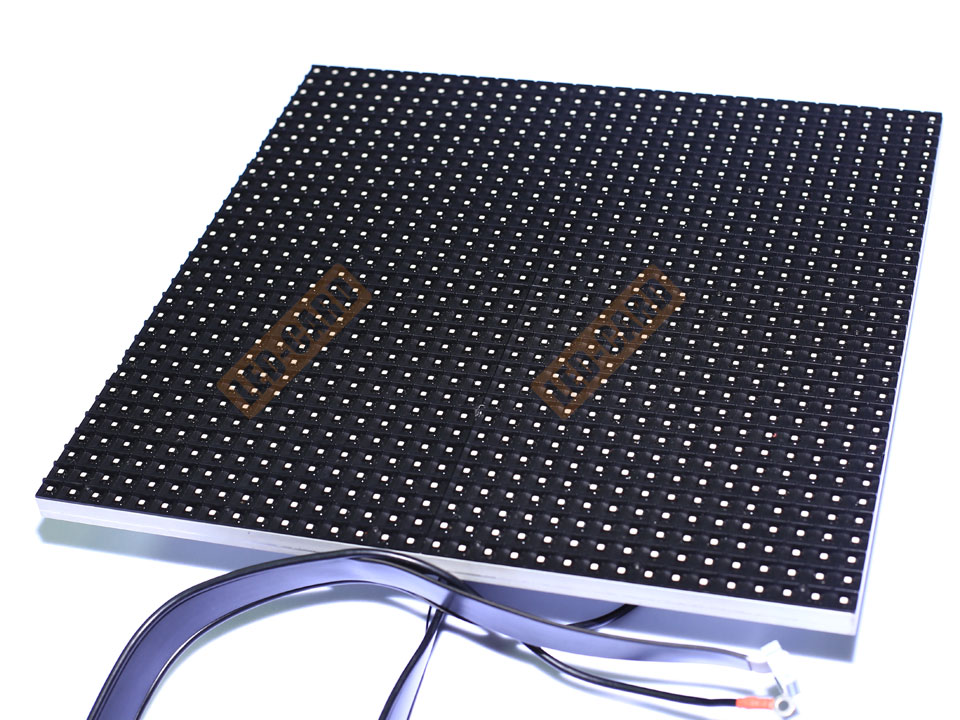

P10 front access LED module

SMD LED module
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.

Pixel pitch: 10mm
Module Size: 320*320 mm
Model Pixel: 32*32 Pixels
lattice density: 10000 dots/square meter
Pixel form: 1R1PG1GB SMD 2727

$175.00 $89.00

889 disponibles

SKU: P10_FA Categoría: Etiqueta:


P10 front access LED module

Pixel pitch
Module Size
Model Pixel
32X32 Pixels
lattice density
10000 dots/square meter
Pixel form
1R1PG1GB SMD 2727Nationstar)
Best viewing distance
10m~30 m
Max power consumption
700W/square meter
Ave power consumption
350W/square meter
Max power per module
1 year
Drive mode( Optional)
Constant current 1/2 scan
Control system
DVI card+Full color control card
Pixel type
Real pixel
refresh frequency
Horizontal View Angel
> 110 degree
Working Environment
Temp:-20Celsius degree-+60Celsius degree
Humidity : 10%-90%
Working voltage
DC 4.2V
>=100000 hours
Gray scale
12 bit/ 1 color
Color display
manual adjust
5500 cd/square meter
Blind spot rate
Waterproof Class
Support window series system

You’d better buy all modules at a time for one led screen, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
So our modules can’t work together with your previous or later modules.
If you have some other special requirements, please contact our online sales.

Información adicional

Peso 2.1 kg
