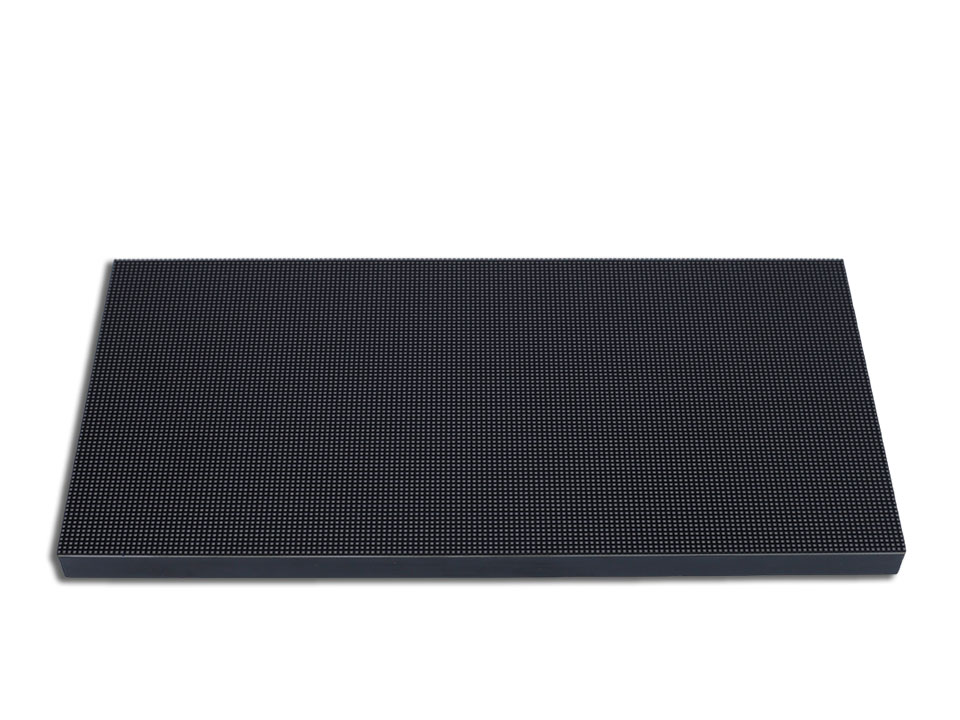

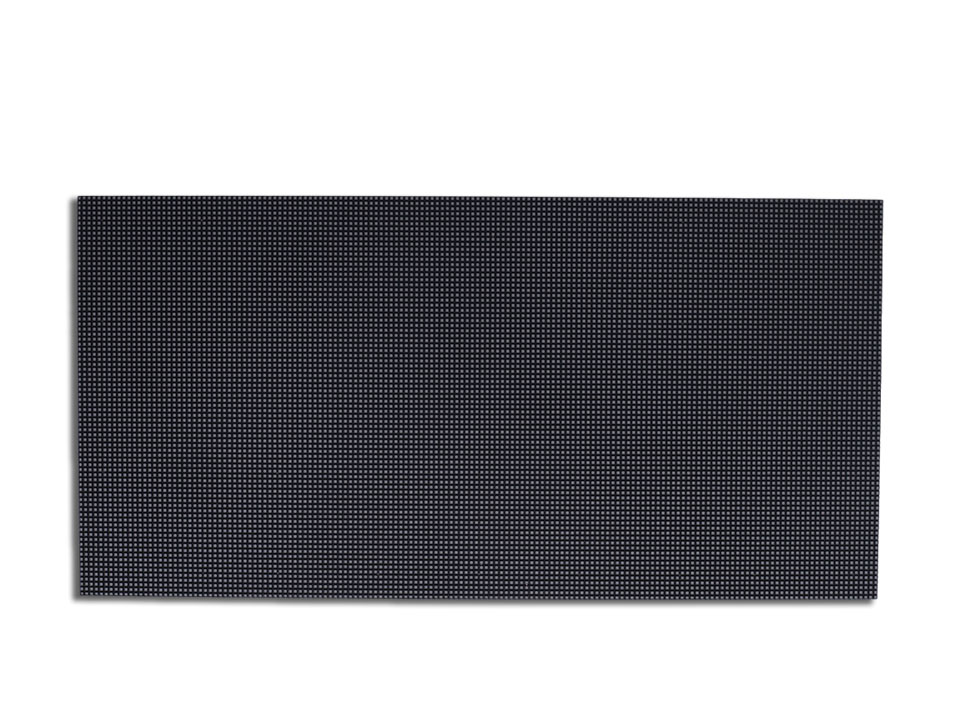

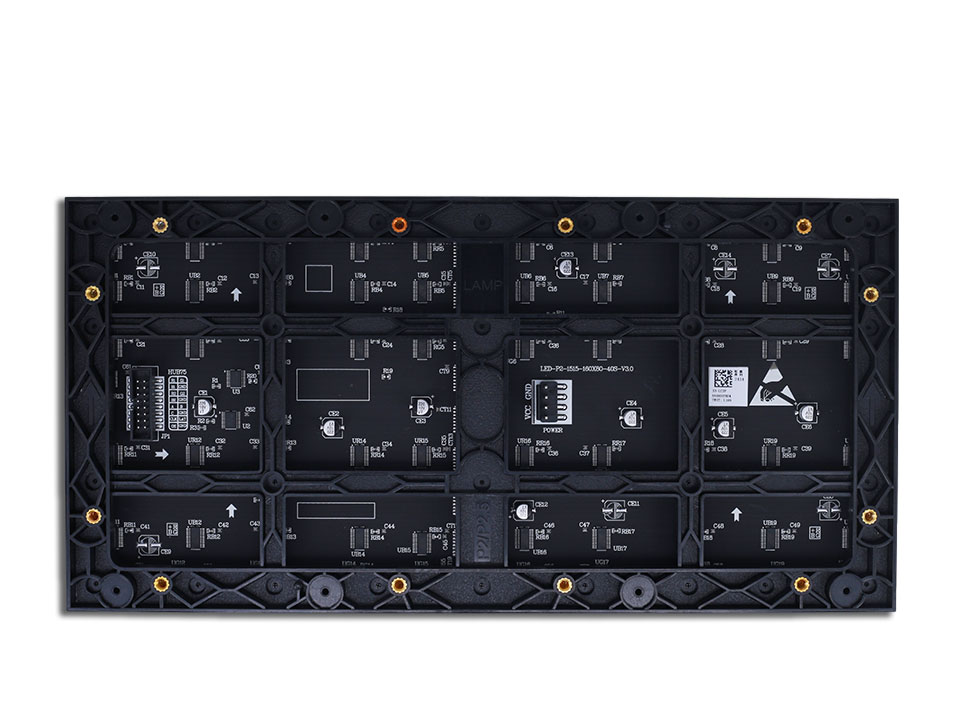

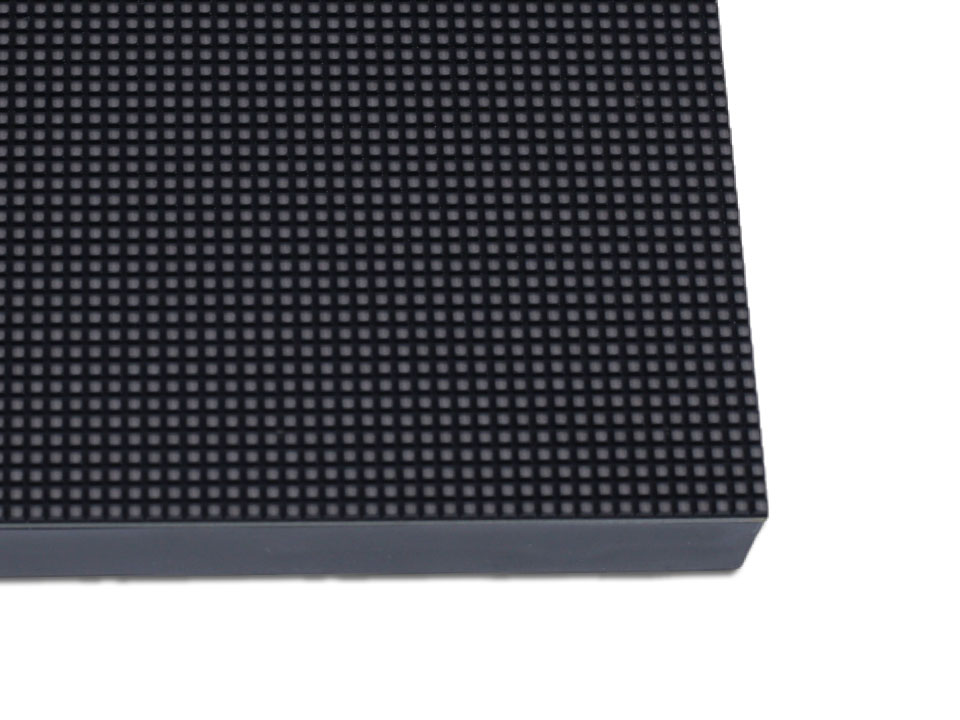

P2 indoor LED Modules 320*160

SMD LED module
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.

Pixel pitch 2mm
Module Size 320X160 mm
Model Pixel 160X80Pixels
lattice density 250000 dots/square meter
Pixel form 1R1G1B SMD1515


SKU: P2_indoor_320 Categoría: Etiquetas: , , ,


P2 indoor LED Modules 320*160

Pixel pitch2mm
Module Size320X160 mm
Model Pixel160X80Pixels
lattice density250000 dots/square meter
Pixel form1R1G1B SMD1515
Best viewing distance1m~20 m
Max power consumption800W/square meter
Ave power consumption300W/square meter
Max power per module75W
warranty1 year
Drive mode( Optional)Constant current 1/40scan
Control systemDVI card+Full color control card
Pixel typeReal pixel
refresh frequency>=1200HZ
Horizontal View Angel> 110 degree
Working Environment
Temp:-20Celsius degree-+60Celsius degree
Humidity : 10%-90%
Working voltage
Lifetime>=100000 hours
Gray scale12 bit/ 1 color
Color displaymanual adjust
Brightness>800 cd/square meter
Blind spot rate<0.00001
Waterproof ClassIP43
SoftwareSupport window series system

You’d better buy all modules at a time for one led screen, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
So our modules can’t work together with your previous or later modules.
If you have some other special requirements, please contact our online sales.

Información adicional

Peso0.6 kg
Dimensiones32 × 16 × 2 cm
