P20 Truecolor al aire libre LED Segmentos

DIP LED module
Comparar

LED Chip: EPISTAR
Pixel pitch: 20 (mm)
Brightness: 7500 nit
Driver mode: 1/1 Duty Static
Weight: 2.0 (kg)
Pixel configuration: DIP1R1G1B

$79.20

33 disponibles

SKU: P20_3232 Categoría:

Descripción

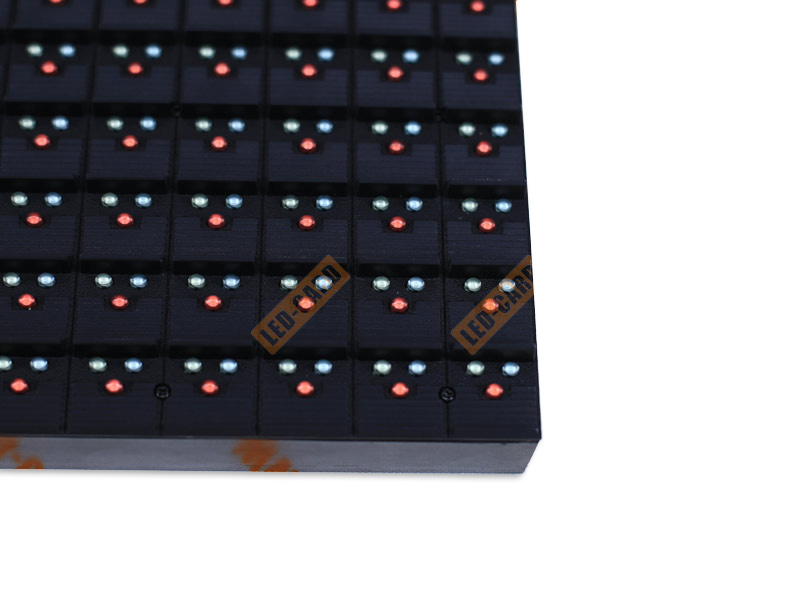

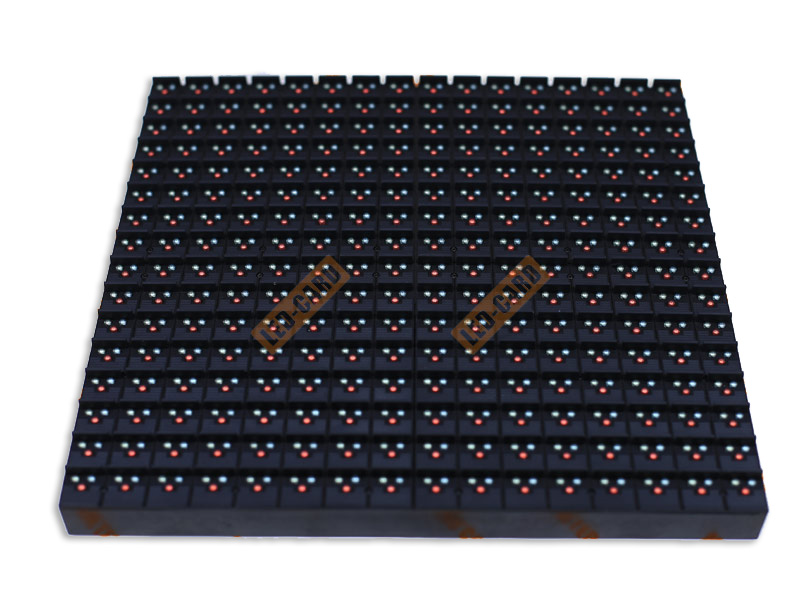

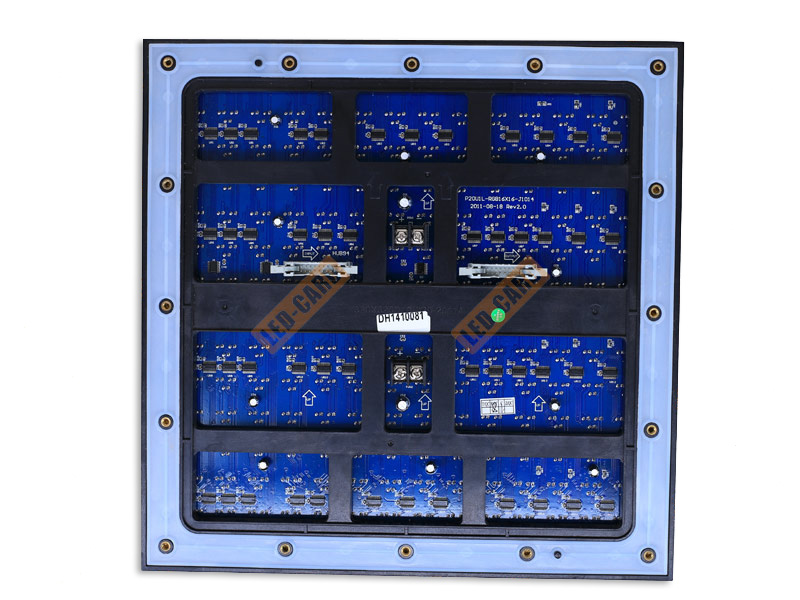

P20 Truecolor outdoor LED segments Specification

Over 8 PCS Free of DHL shipping

LED Chip

EPISTAR

Pixel pitch

20 (mm)

 Brightness

7500 nit

 Driver mode

1/1 Duty   Static

 Weight

2.0 (kg)

 Pixel configuration

 DIP1R1G1B

 Module dimensions (W×H)

320×320 (mm)

 Module dimensions (W×H)

12.6×12.6(Inch)

 Pixel density

2500 pixels/sq.m.

 Refresh rate

≥1680 Hz

 Gray scale per color

8192 level

 Colors

549.6 Gillion

 Best View distance

15-250M

 Viewing angle (H/V)

120/120deg

 IP rating (Front/Rear)

IP65/IP54

 Power consumption (max/avg)

600/200 W/sq.m.

 Max power per module

62W.

 Input voltage (AC)

DC 5V

 Operating temperature

﹣20℃~+ 50℃

 Operating humidity

10%~90%

 Source compatibility (with video processor)

 AV, S-Video, VGA, DVI, HDMI, SDI, DP

You'd better buy all modules at a time for one led screen, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
So our modules can't work together with your previous or later modules.
If you have some other special requirements, please contact our online sales.

Información adicional

Peso 2.2 kg
