Novastar DH7516-S Receiver Card

Nova star
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.

Maximum load of single card is 512*384 pixels;32 sets data; 16 standard hub75E interfaces

$20.00 $16.50

SKU: DH7516-S Category: Tags: , ,

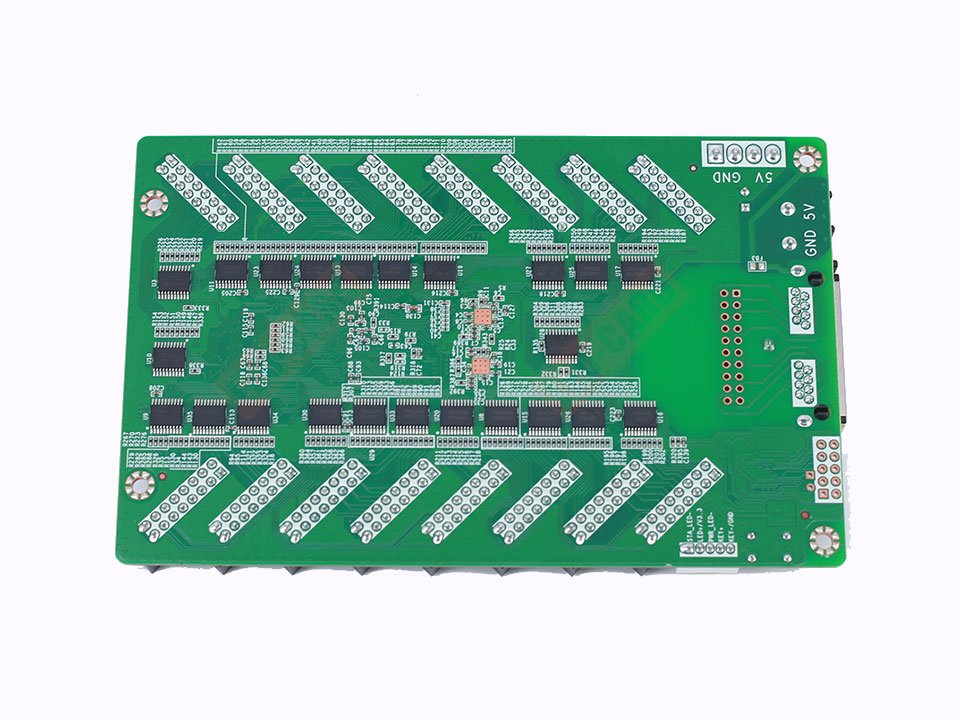

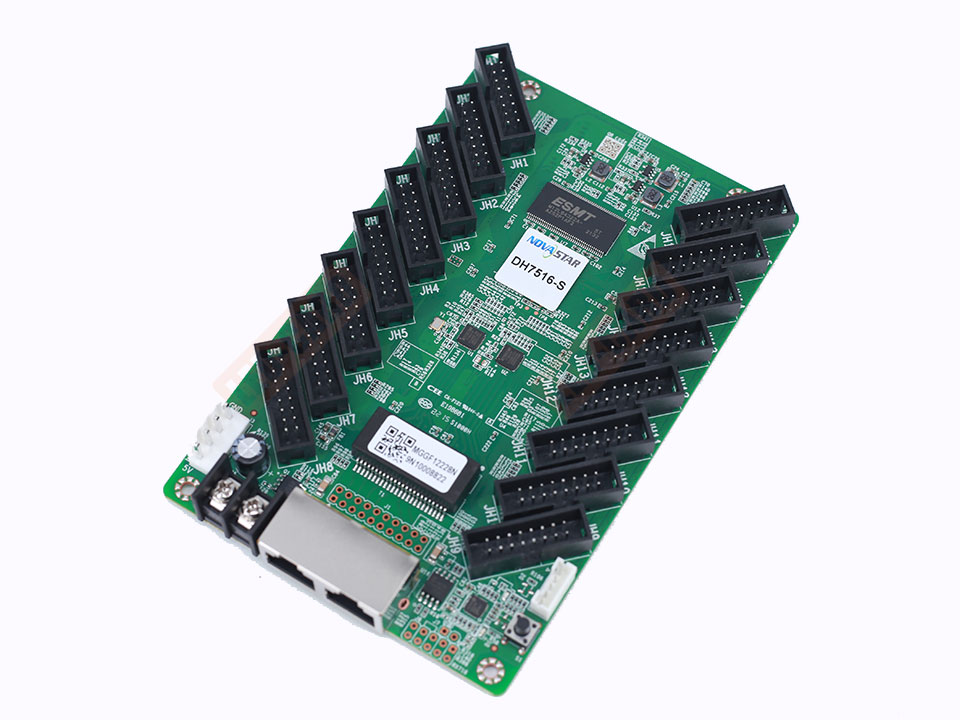

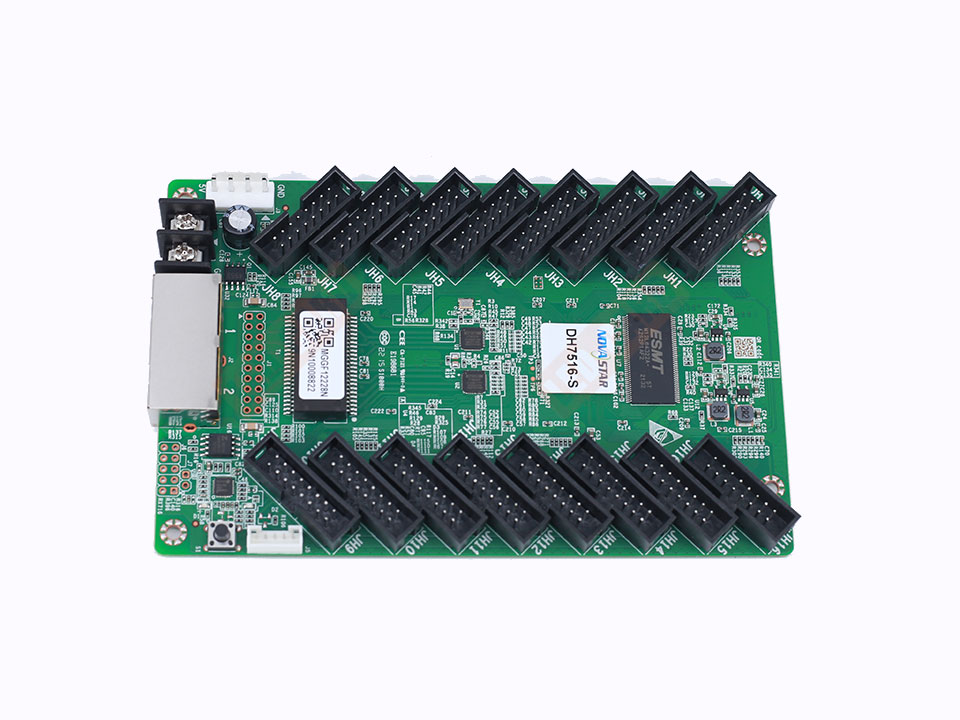

Novastar DH7516-S Receiver Card

DH7516 is a universal receiving card launched by Novarstar. The maximum load of single card is 512*384 pixels . supports brightness correction, fast line adjustment, 3D and RGB independent gamma adjustment, so as to improve the display effect of the screen, and improve the user experience of DH7516-N to communicate with 16 standard hub75E interfaces, which has high stability and supports up to 32 sets of RGB well data, Use of words in a variety of field environments, and with Brightness adjust.

Input voltage: DC 3.3v-5.5v,
Constant current: 0.5A
Rated power: 2.5W
Consumption temperature: – 20℃- + 70℃
Humidity: 10%RH-90%RH, non condensing
Temperature: – 25 ℃ – + 125 ℃
Size: 18.4mm x 145.7mm x 91.5mm
Weight: 102g

Additional information

Dimensions 9.2 × 15 × 2 cm
