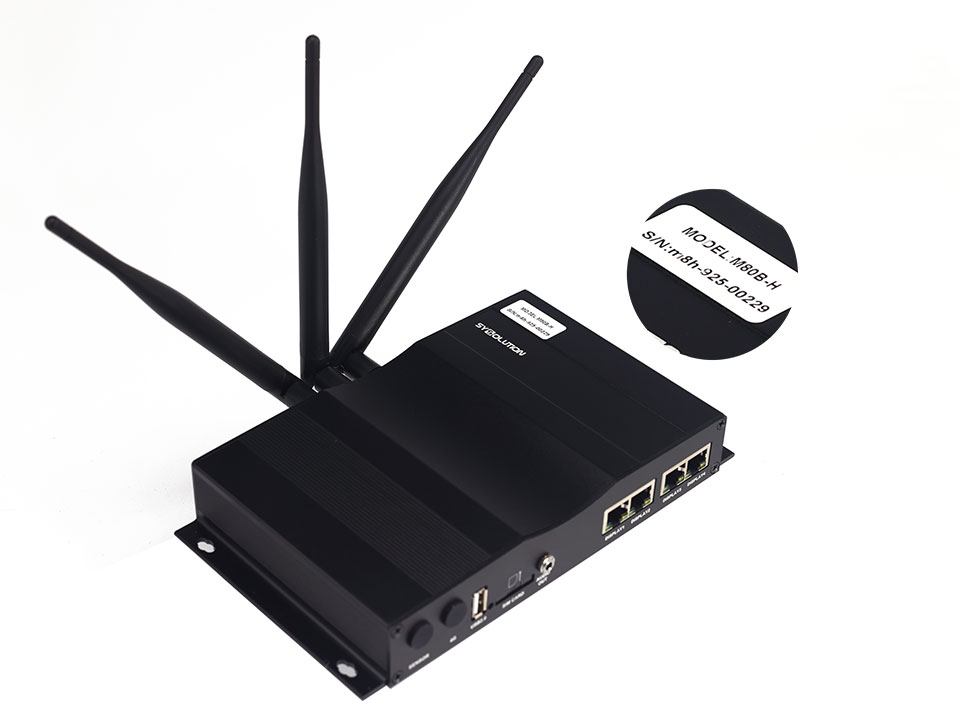

Asynchronous send card M80B-H

Description

Asynchronous send card M80B-H is a high-performance multimedia control host designed for intelligent conference systems, digital signage, industrial control, and IoT integration. It combines powerful computing, versatile audio-visual management, and industrial-grade connectivity into a single, reliable platform.
Key Features

Powerful Performance: Equipped with a quad-core Cortex-A55 processor clocked at 2.0GHz and a built-in 1 TOPS NPU for AI and deep learning tasks.
Ample Memory: Comes standard with 4GB RAM and 32GB ROM, with optional configurations up to 8GB RAM and 64GB ROM.
Versatile Connectivity: Features two HDMI 1.4 inputs and one HDMI 1.4 output, supporting resolutions up to 4K@30Hz. It also includes four Gigabit Ethernet ports for display output, with a maximum load capacity of 2.6 million pixels.

Advanced Wireless: Supports dual-mode wireless connection with WiFi 6 (AP) and WiFi 5 (STA), and includes a built-in 4G module (5G optional). It can function as an intelligent router, creating shared hotspots.

Rich I/O Expansion: Provides USB 3.0 and USB 2.0 ports, along with industrial communication interfaces like RS485, RS232, and TTL for connecting various sensors and equipment.
Comprehensive Control: Supports remote management via the LedOK lite App and PC software (LedOK Express). Features include remote program distribution, USB direct-play, and emergency functions like IP broadcasting and one-key alarms.

Customized OS: Runs on a customized Android 11 system, allowing for the installation of third-party applications and flexible operation.

input voltage: DC12V
working temperature: – 40~+7 5℃
Working humidity: 0% ~80% no condensation
Storage temperature: -40~80℃
Recommended: 5~35℃
Size(mm): 205*120*34
Weight: 1.4KG
