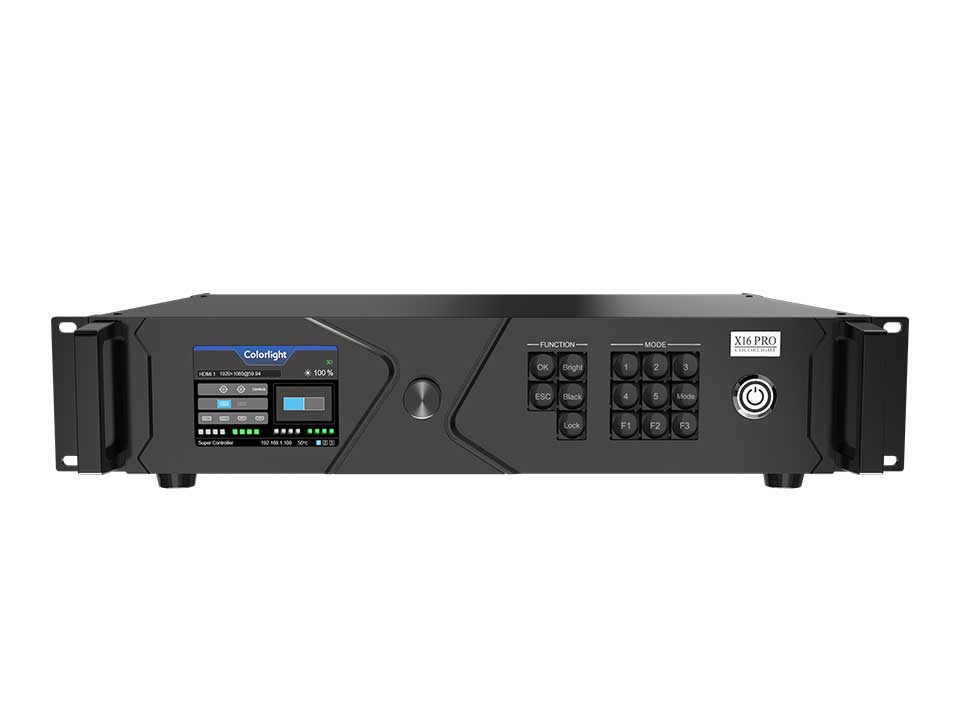

The Colorlight X16 Pro is a professional LED display controller with powerful video signal receiving, splicing and processing capacities.

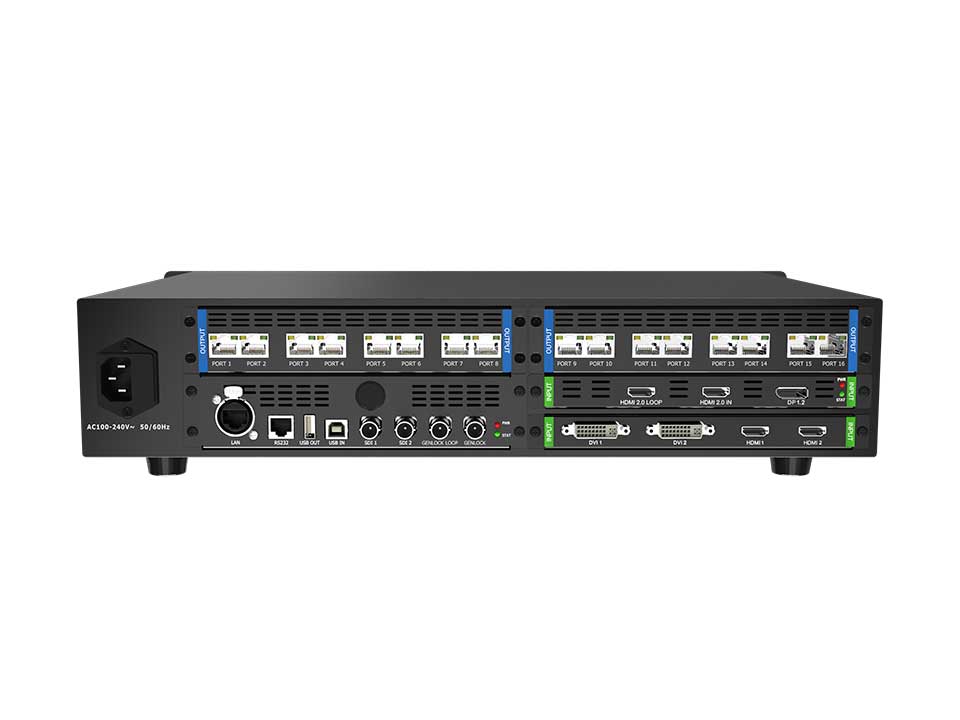

It supports HDMI, DP, DVI and SDI signals with seamless switching between them.
The X16 has 16 Gigabit Ethernet outputs and can support large LED displays up to 8192 pixels in maximum width and 4096 pixels in maximum height.
It is equipped with versatile functions for flexible screen control and high-quality image displays, making it ideal for high-end rental displays and high-resolution LED displays.
.Support various digital signal ports, including HDMI2.0, DP1.2, SDI, DVI
.Support input resolutions up to 4096×2160@60Hz
.Loading capacity: 8.88 million, maximum width: 8192 pixels, maximum height: 4096 pixels
.Support arbitrary switching of video sources; the input images can be spliced and scaled according to the screen resolution
.Support 7 windows, the location and size can be adjusted freely
.Support 3D (optional)
.Support RS232 control
.Support brightness and color temperature adjustment
.Support better gray at low brightness
.Support controlling with a handheld terminal via an app
