Description

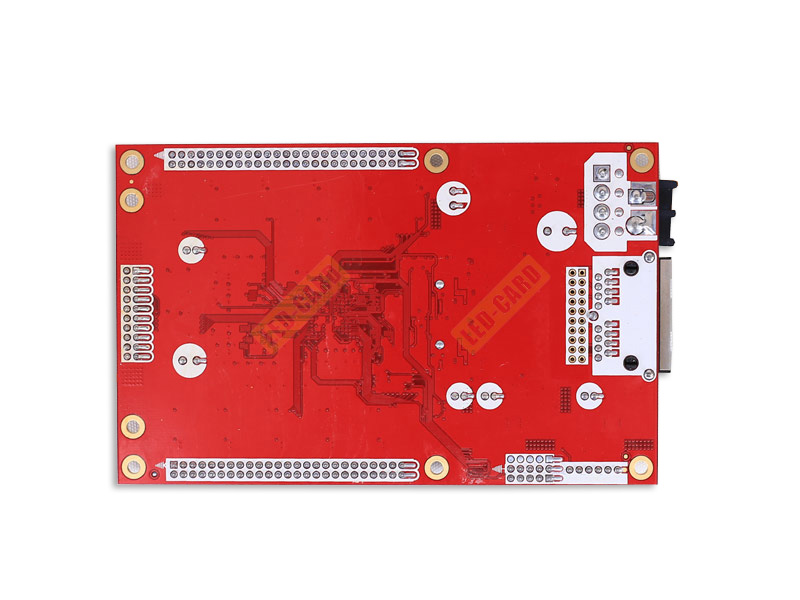

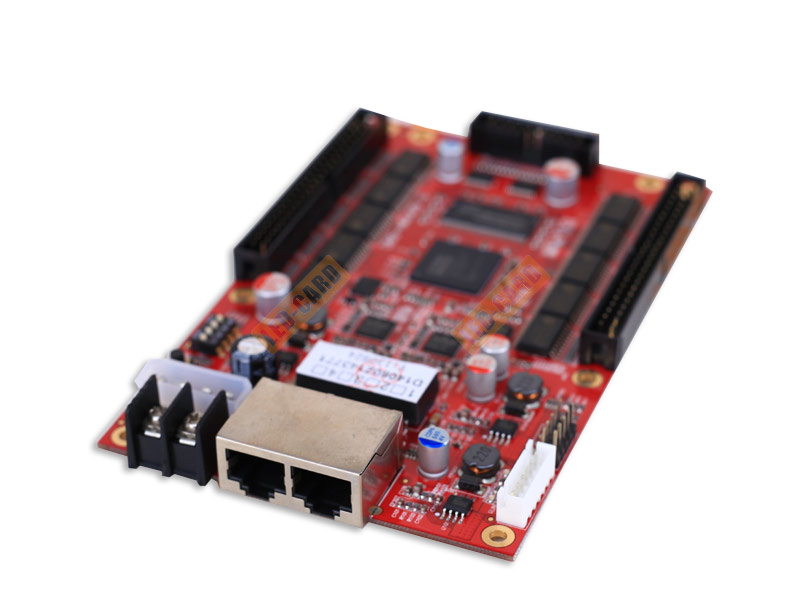

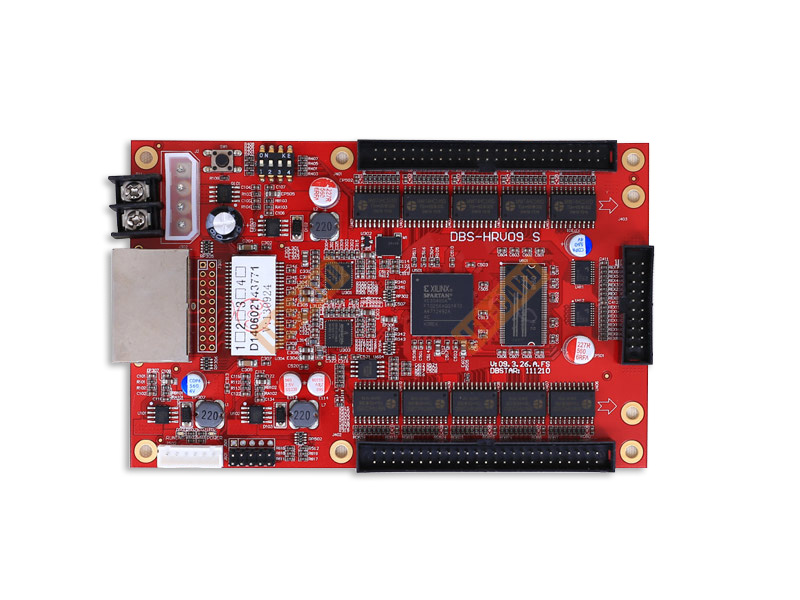

DBS-HRV09 S version full color receiving card (V3.24FS) Functions:
1. Fully support HRV07,support programs change and order programs.
2. Support led drivers with PWM, highly improved refresh rates with static screens and dynamic screens.
3. Full new grey engine,better performance on low grey level.
4. Support automatic collection on error detection and other error information.
5. Support PC 1000M network card image sending,need no sending card.
6. Support 10bit HD video source.
parametes:
Type
|
Typical value
|
Max value
|
Supported screen type
|
single color, dual-color,full-color, real pixel,virtual pixel.
|
|
Supported LED drivers
|
MBI5026/MBI5030/MBI5036/
MBI5039/MBI5042/MBI5050/MBI6024/ LPD6803/DM413/DMX512/ZQL9726
TCD62D722/TC62D766/MBI5050/MBI6024
|
|
Pixels by single sending card
|
1280×1024(dual ports)
|
|
Number of receiving cards connected by cable
|
<100
|
256
|
Pixels by single receiving cards
|
256 x192 full-color
1024 x512 dual color
|
512×384 full color
1280 x512 dual color
|
RGB data groups by single receiving card
|
16-24
|
24
|
Lines by one group RGB
|
1/2/4/8/16/32
|
32
|
Grey grades
|
4096(4k)
|
65536(64k)
|
Data CLK frequency
|
15.62MHz
|
31.25MHz
|
Refresh rate
|
180Hz
|
>3600Hz(如MBI5042)
|
Brightness wastage
|
15~20%
|
<5%
|
PWM brightness adjust degree
|
256(may automatically adjust by brightness sensor)
|
|
Electronic current plus brightness adjustment grade
|
64/256(according to led drivers)
|
|
Dot by dot revise pixels by PWM brightness
|
64×64
|
256×256
|
Pixels on open circuit and short circuit error detection
|
static 2048×16 1/2 1024×16
1/4:2048×16 ;1/8:4096×16; 1/16:8192×16 |
|
Fiber transmission distance
|
Multi-mode fiber 500meters single-mode fiber 10KMs
|
|
Other functions
|
Power on gradual protection ã€OE Polarity switch protect screen scan tubes, led screen self-detecting
|
|
No sending card function
|
Sending images by 1000M network card PC
|
