Full Color Banner Screen Card HD-D16

One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.

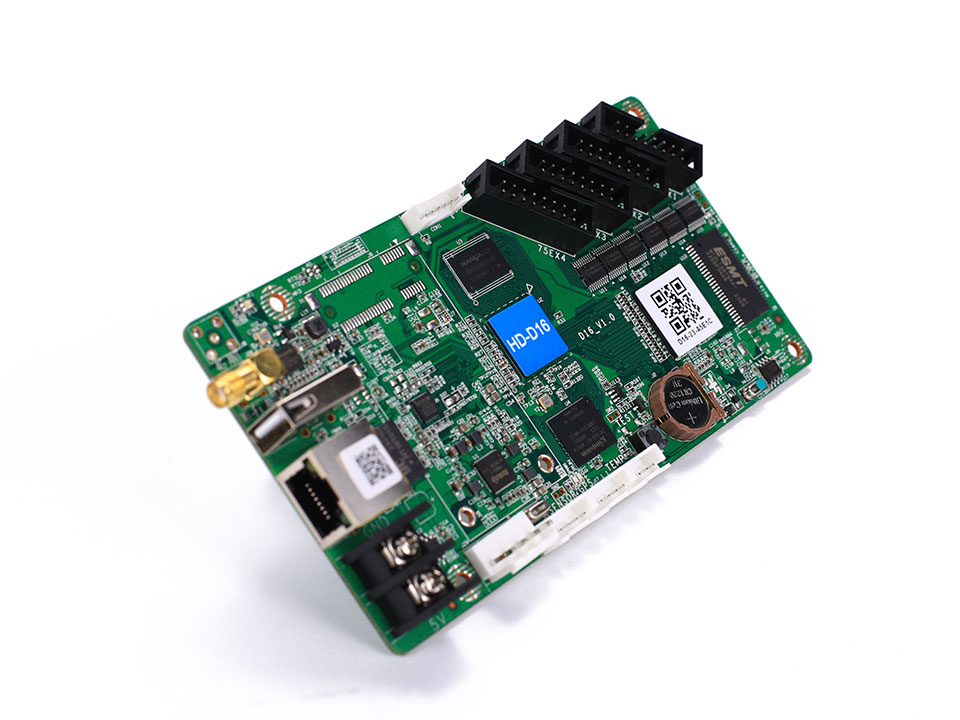

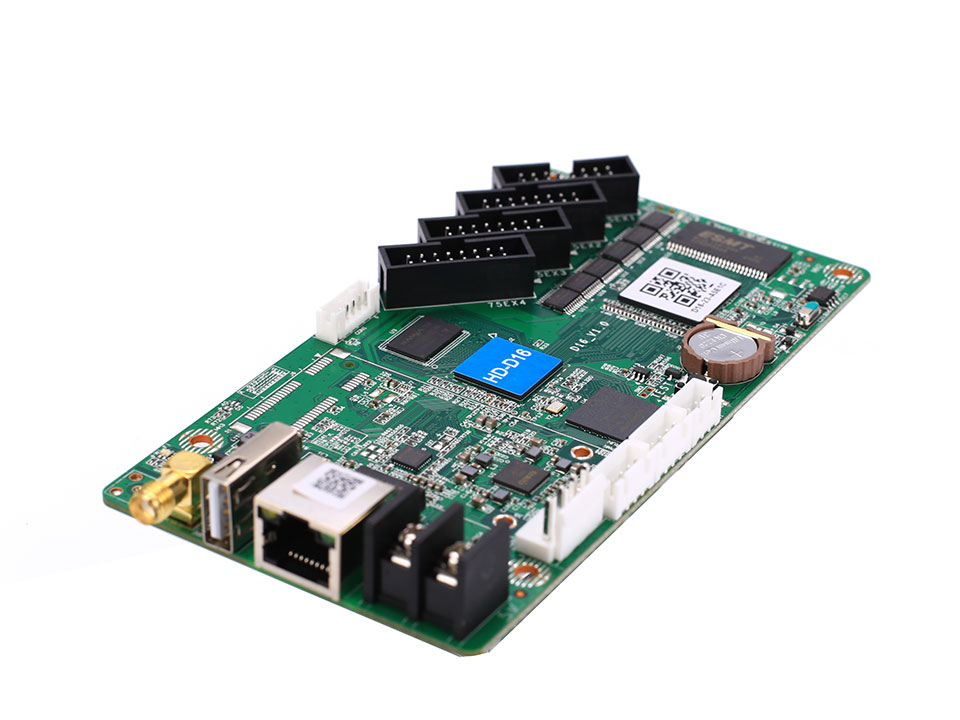

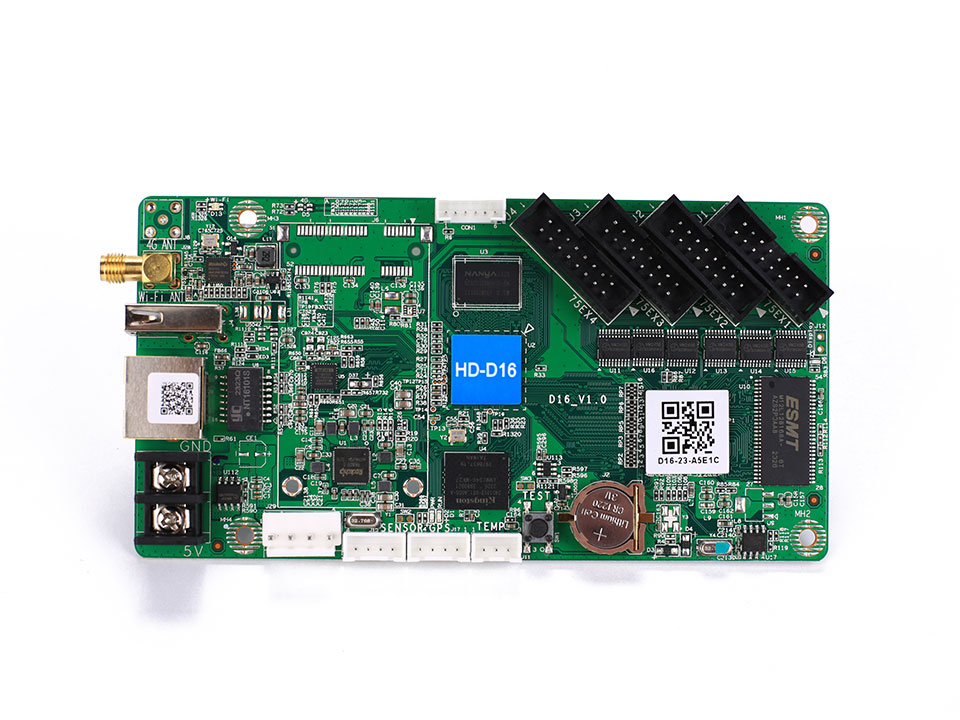

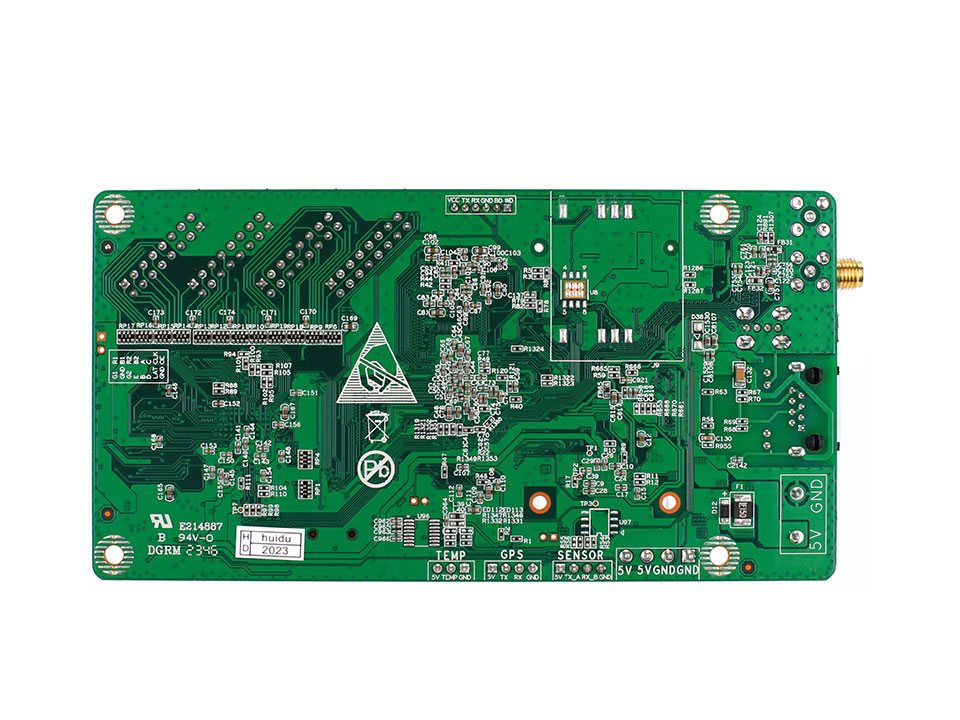

Huidu HD-D16 is a smallest video control card for full color LED screen,
the maximum load capacity is 65,536 pixels, the widest is 1024 pixels, the highest is 256 pixels



Standard Wi-Fi module, mobile App wireless management;
Control Range:1024*64, Widest: 1024, Highest:256
Support 256~65536 grayscale;
Animation Formats:SWF,FLV ,GIF
Support Video, Picture, Animation, Clock, Neon background;
Support word art, animated background, neon light effect;
U-disk unlimited expansion program, plug in broadcast;
No need set IP, HD-D16 could be identified by controller ID automatically;
Support 4G/Wi-Fi/ and network cluster management remote management;
Support 720P video hardware decoding, 60HZ frame rate output.
Port:5V Power *1, 10/100M RJ45 *1, USB 2.0 *1, HUB75E *4

Additional information

Weight 0.2 kg
Dimensions 15 × 12 × 1.5 cm
