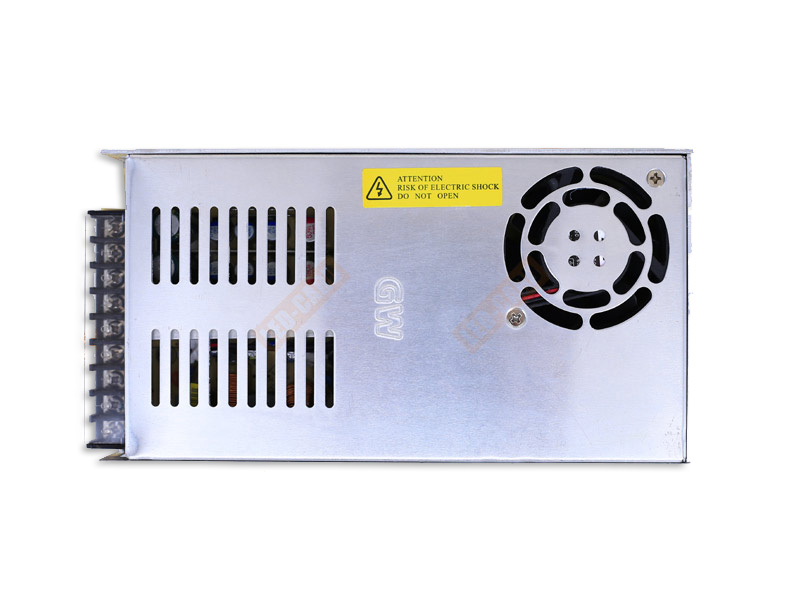

Great wall GW-LED300-5 Power Supply

LED-CARD
Compare
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.

1 year warranty
Power: 300W
Size:215×125×50mm
AC input voltage range———88-132VAC/ 176-264VAC selected by switch
Input frequency———————————47-63Hz

$58.00

125 in stock

SKU: GW-LED300-5 Category:

Description

Great wall GW-LED300-5 Power Supply Features :
1 year warranty
Power: 300W
Size:215×125×50mm
AC input voltage range———88-132VAC/ 176-264VAC selected by switch
Input frequency———————————47-63Hz
AC inrush current——————————–Cold start,60A/230VAC
DC adjustment range—————————–±10% rated output voltage
Line regulation(full load)————————≤0.5%
Output over load protection——-110%-150% hiccup mode,auto-recovery
Rise,hold up time——————–50mS,20mS at full load(typical)
Withstand voltage——-I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature—– -10~+40°[email protected] +60°[email protected]% load
Storage temperature—– -20°C~+85°C 20%~95%RH(non condensing)
Safety standards——Design refer to GB4943 ŒUL60950-1,EN60950-1
EMC standards——- Design refer to GB9254 ŒEN55022 class A
Cooling method———————Free air cooling convection

Additional information

Weight 1 kg
