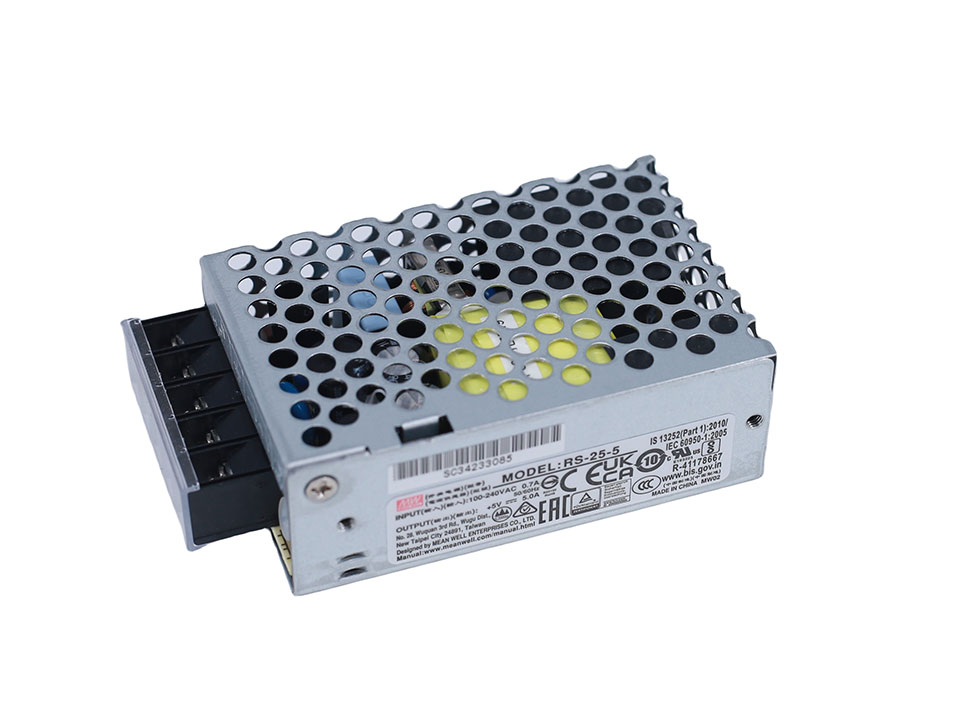

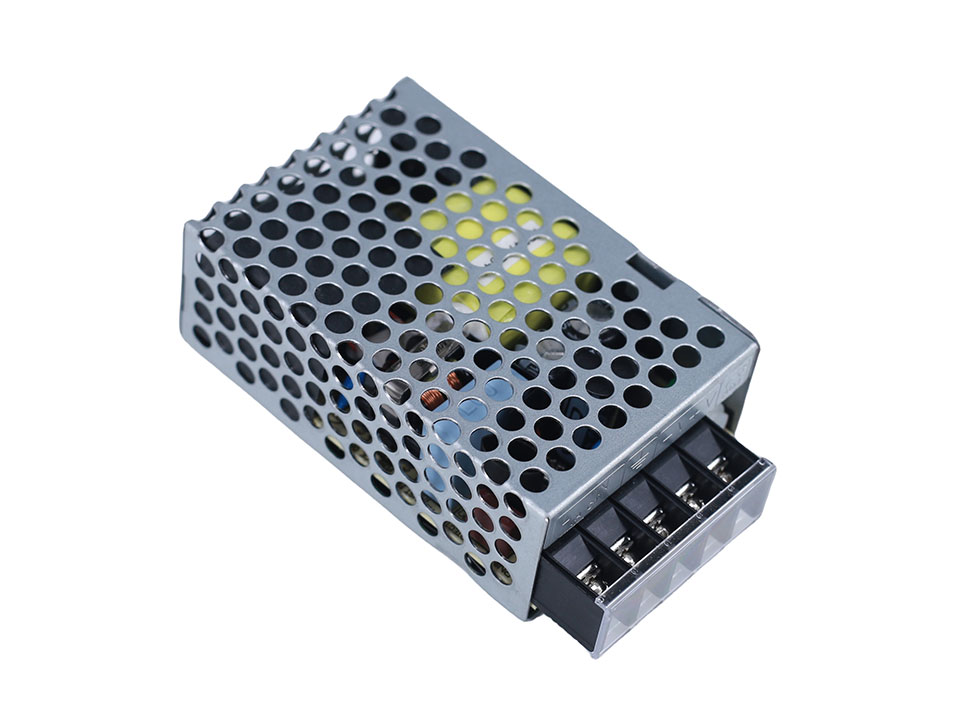

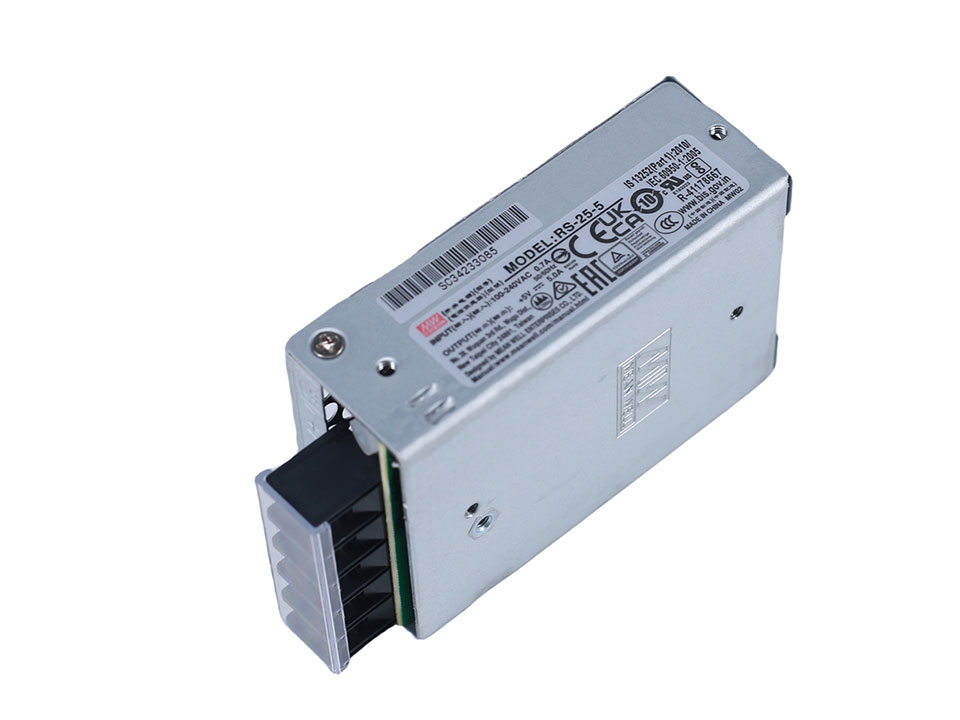

Meanwel RS-25-5 LED Power supply

MEANWELL
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.

5V 5A 25W Power supply
Voltage Tolerance: 1%
Setup, Rise Time: 18000ms/230VAC 500MS,4000ms/115VAC at Full load

$8.50

SKU: RS-25-5 Category: Tags: , , ,

Description

Universal AC input/Full range
Protections: Short circuit/ Overload/Over voltage
Cooling by free air convection
LED indicator for power on
100% full load burn-in test
All using 105 C long life electrolytic capacitors
Withstand 300VAC surge input for 5 second
High operating temperature up to 70c
Withstand 5G vibration testNo load power consumption<0.5W
High efficiency, long life and high reliability
2 years warranty

Output:
Power: 5V 5A 25W
Voltage Tolerance: 1%
Setup, Rise Time: 18000ms/230VAC 500MS,4000ms/115VAC at Full load

Input:
Voltage Range: 85-264VAC / 125-373VDC
Frequency: 47-63HZ
Efficiency: 78.5%

Over load: 110-180% rated output power
Over Voltage: 5.75-6.75V
Working Temp: -20 to +70 degree
Working Humidity: 20-90% RH non-condensing

Authentication: UL CE CCC BIS EAC TUV
Size: 78*51*28mm
Weight: 0.2KG

Additional information

Weight 0.2 kg
Dimensions 8 × 5 × 3 cm
Manufacturer
