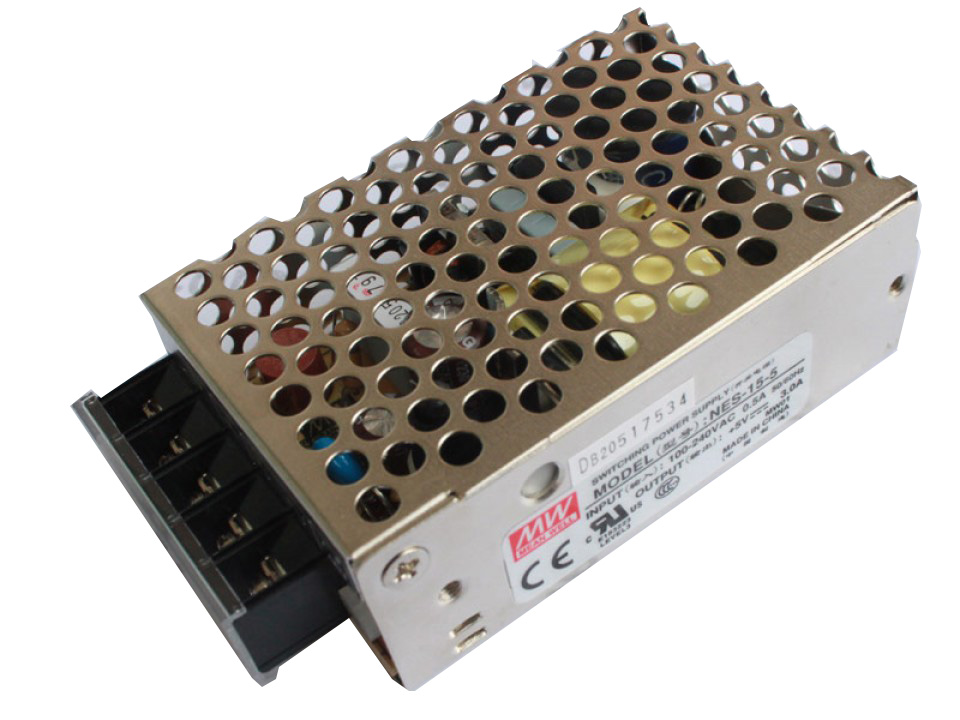

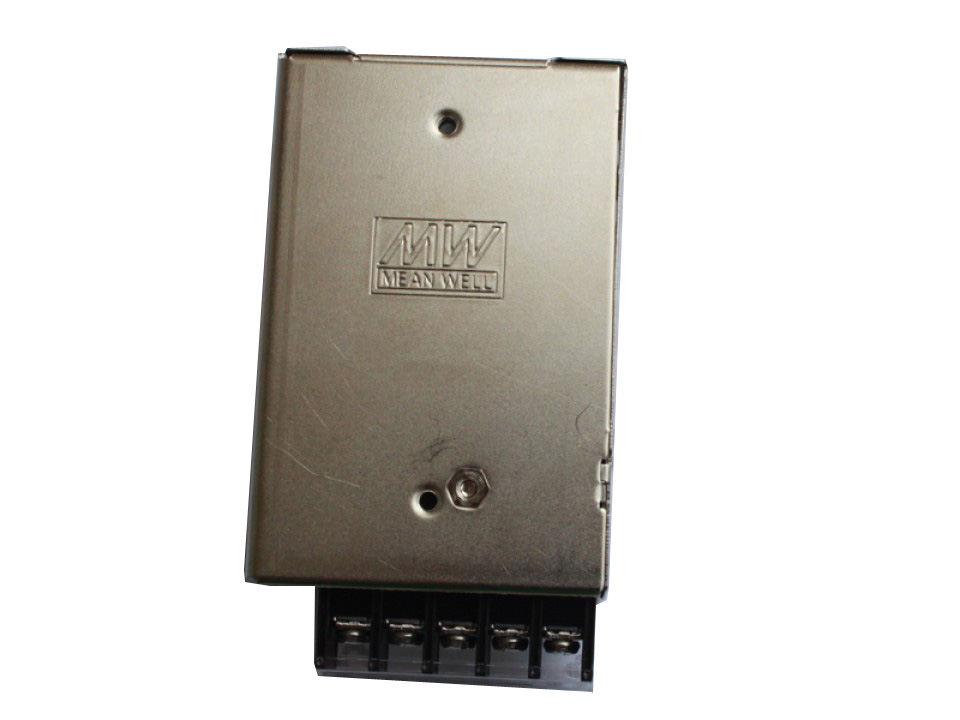

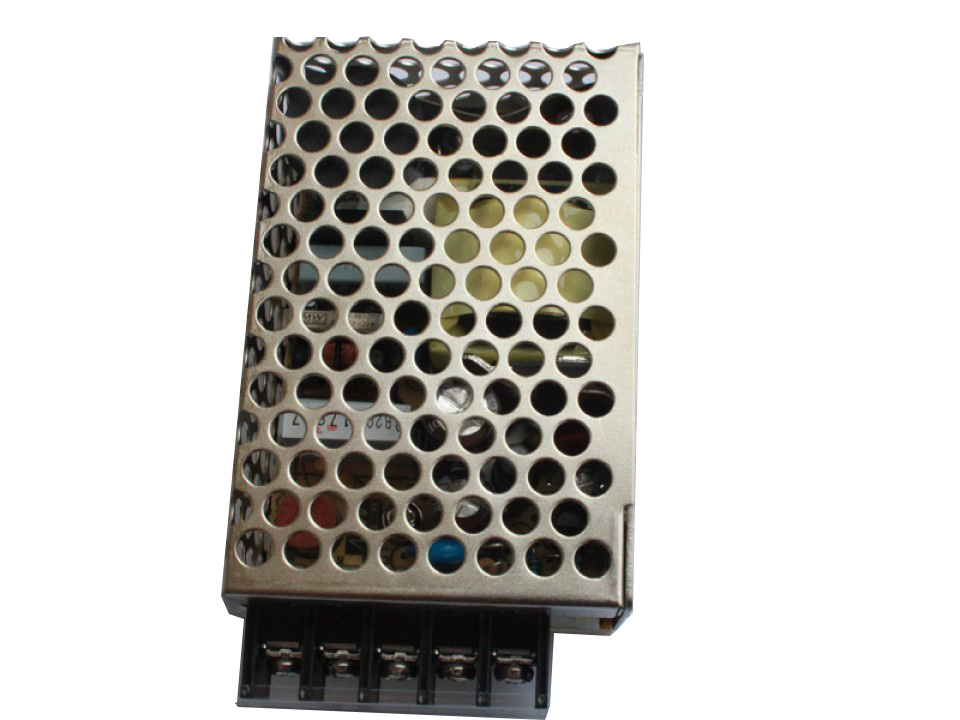

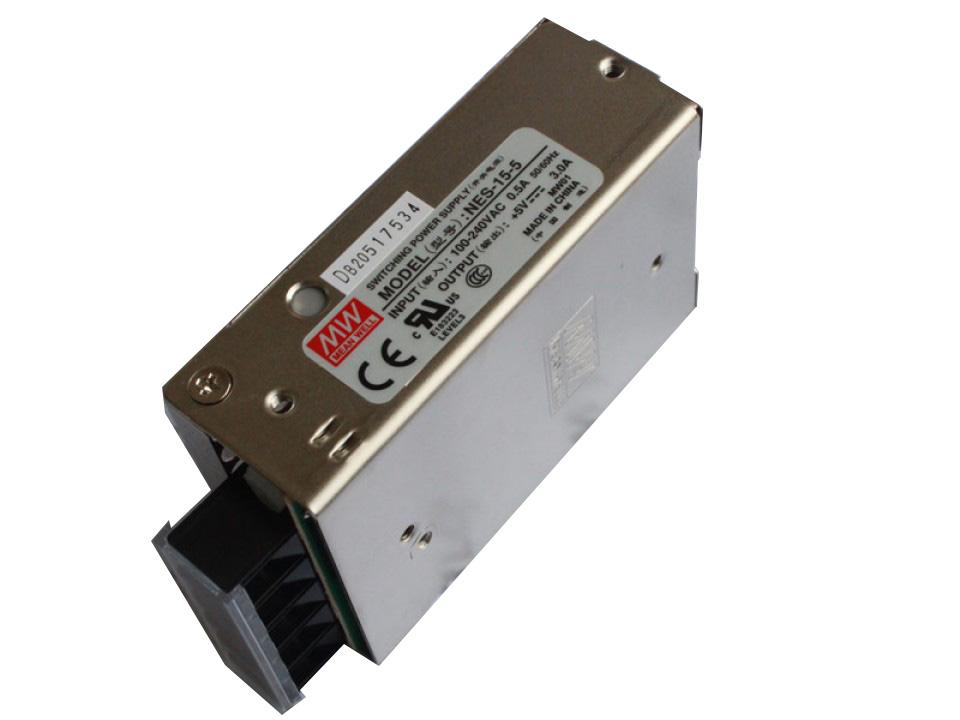

MEANWell NES-15-5 Switching Power source

MEANWELL
Compare

Low cost high reliability
Built-in EMI filter
Low output ripple&noise
Protections Over load/Short circuit
1 year warranty
Case:806 Size:78*58*28mm

$11.50

500 in stock

SKU: NES-15-5 Category:

Description

MEANWell NES-15-5 Switching Power source Features :
Low cost high reliability
Built-in EMI filter
Low output ripple&noise
Protections Over load/Short circuit
1 year warranty
Case:806 Size:78*58*28mm
AC input voltage range———85-264VAC/ 120-370VAC selected by switch
Input frequency———————————47-63Hz
AC inrush current——————————–Cold start 45A/230VAC
DC adjustment range—————————–±10% rated output voltage
Line regulation full load———————–≤0.5%
Output over load protection——-110%-150% hiccup mode auto-recovery
Rise,hold up time——————–50mS,20mS at full load(typical)
Withstand voltage——-I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
Working temperature—– -10~+40 @100% +60 @60% load
Storage temperature—– -20 ~+85 20%~95%RH(non condensing)
Safety standards——Design refer to GB4943 UL60950-1,EN60950-1
EMC standards——- Design refer to GB925 EN55022 class A
Cooling method———————Free air cooling convection

Additional information

Weight 0.18 kg
