Meanwell RCB-1600-48 Power

Description

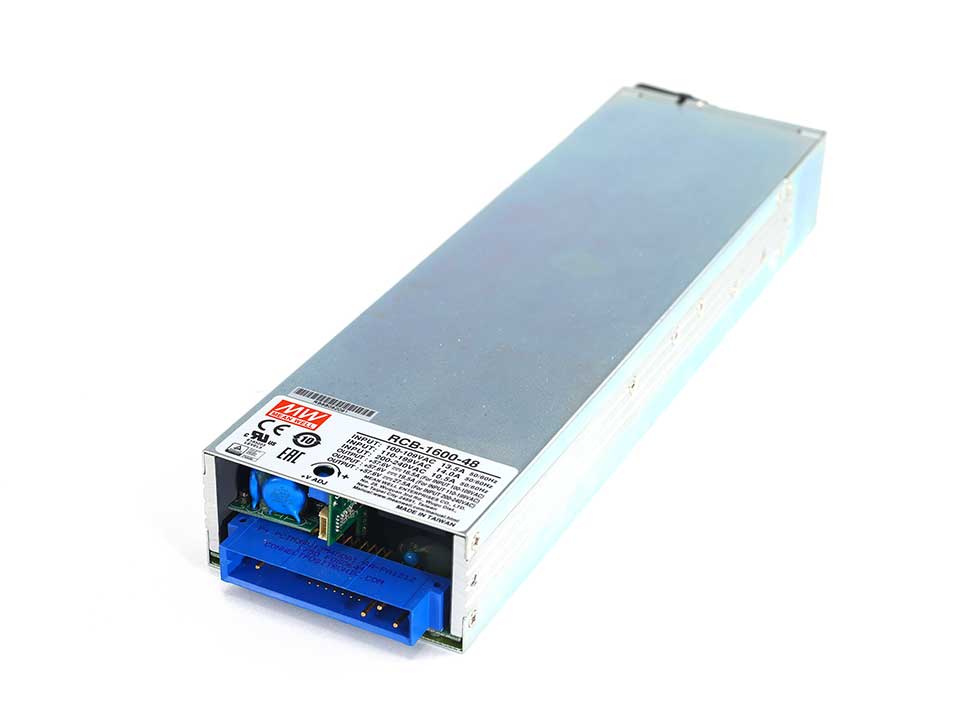

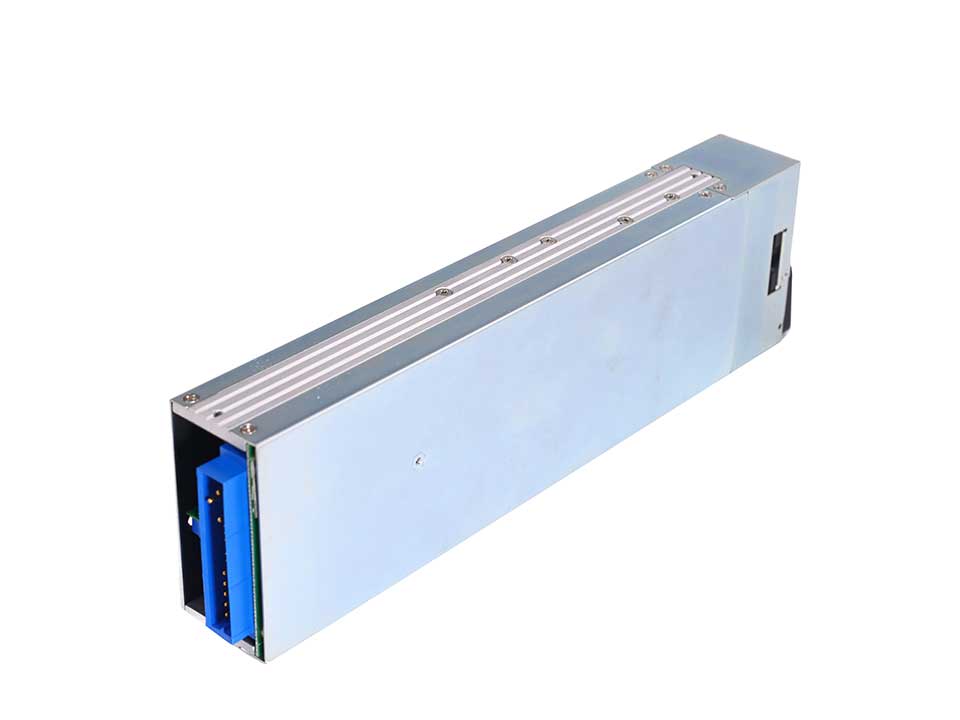

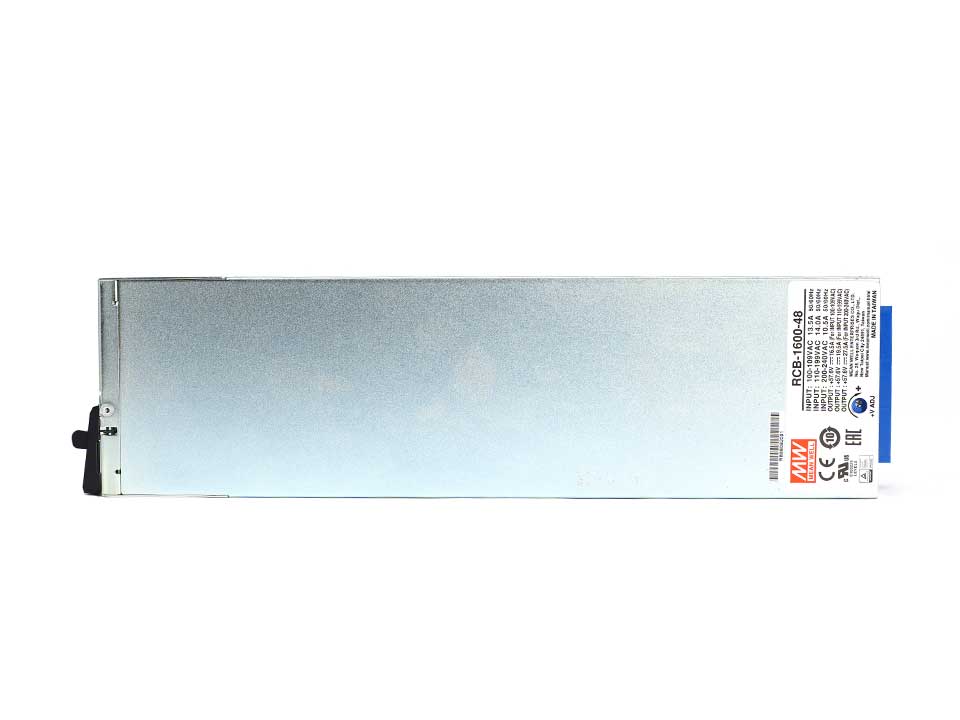

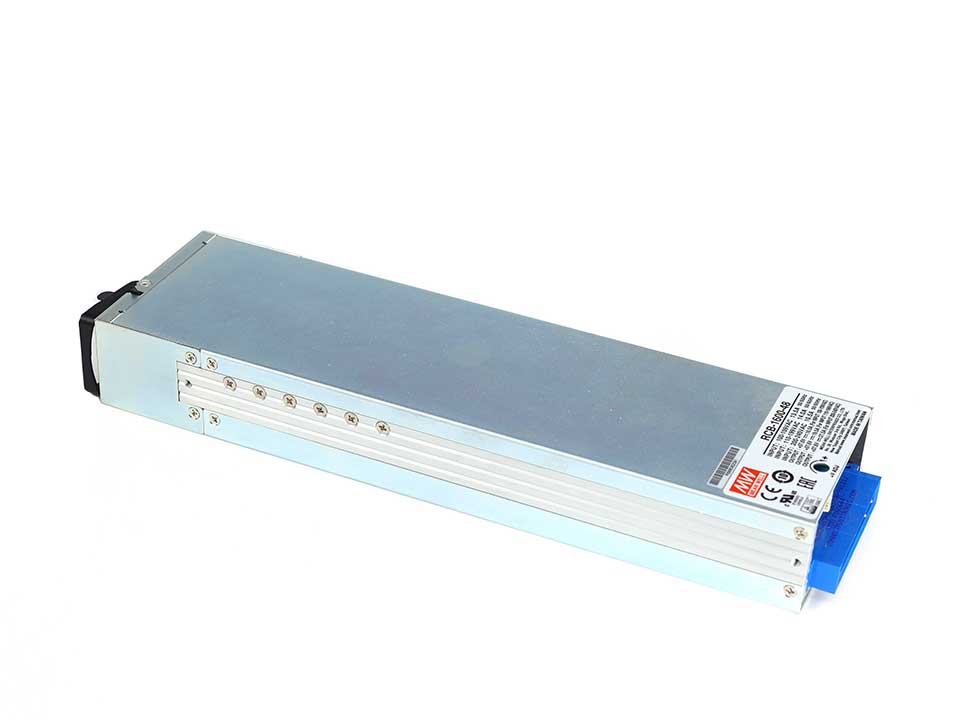

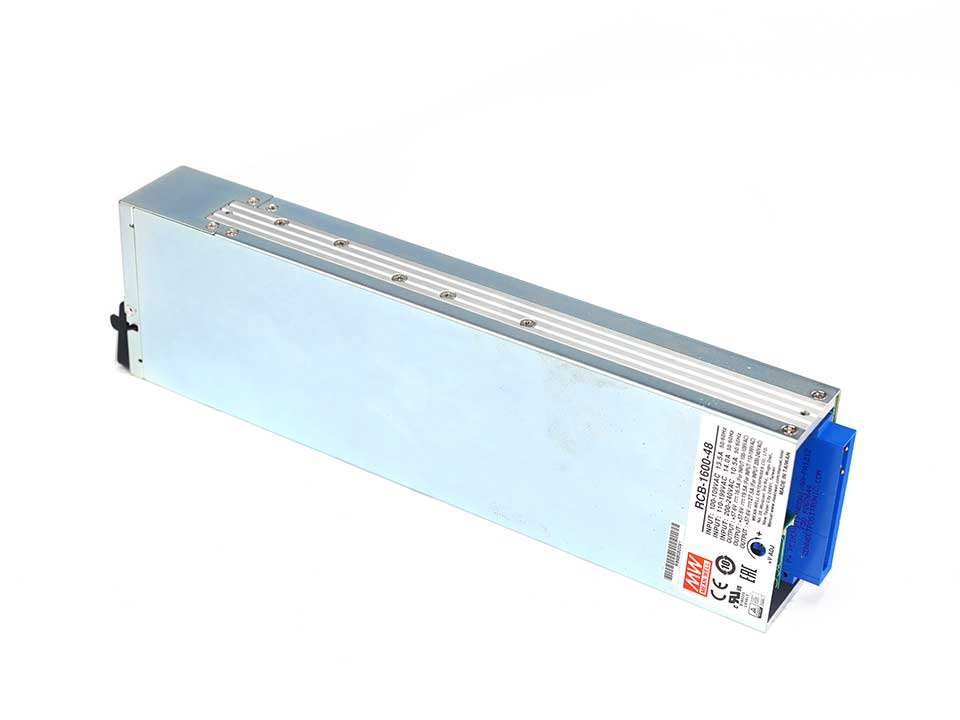

RCB-1600-48 is a single output 1600W AC/DC charger with 1U low profile (41 mm). It is an intelligent charger with embedded charging curves which are programmable. Users are also able to adjust the charging voltage and current via the built-in potentiometer, output programmable functions, PMBus, or CANBus to charge different types of batteries, such as lead-acid batteries and li-ion batteries.

1. Key Features
Power Output: 1600W (max)
Input:
Universal AC: 90–264VAC / 250–370VDC (withstands 300VAC surge for 5s)
Active PFC: Power factor ≥0.97 (full load)
Efficiency: Up to 93%
Output Voltage Options:
48V (47.5–58.8V)
Charging Curves:
3-stage default (boost/constant voltage/float) for lead-acid (Gel, AGM, flooded) & Li-ion (LiFePO₄, LiMn)
Programmable via PMBus/CANBus (optional) or built-in potentiometer (SVR)

2. Advanced Functions
Current Sharing: Supports parallel operation (up to 8000W per 19″ rack shelf)
Hot-Swap Ready: Built-in OR-ing FET for uninterrupted power switching
Protections:
Over-voltage (OVP) / Over-temperature (OTP) / Short-circuit / Battery low/disconnect
Temperature Compensation: -3mV/cell/°C (auto-adjusts voltage based on battery temp)
Remote Control:
ON/OFF via dry contact or TTL signal
PMBus 1.1 (standard) / CANBus (optional) for monitoring/configuration

3. Mechanical & Environment
Dimensions: 300×85×41mm (1U rack-mountable) | Weight: 1.78kg
Operating Temp.: -30°C to +70°C (derating above 50°C)
Cooling: Forced air (built-in DC fan) | Noise: 45dB(A)
Certifications: UL62368-1, TUV EN62368-1, EAC TP TC 004

4. Interfaces & Indicators
Front Panel:
LED status (Green = Float, Orange = Charging, Red = Fault)

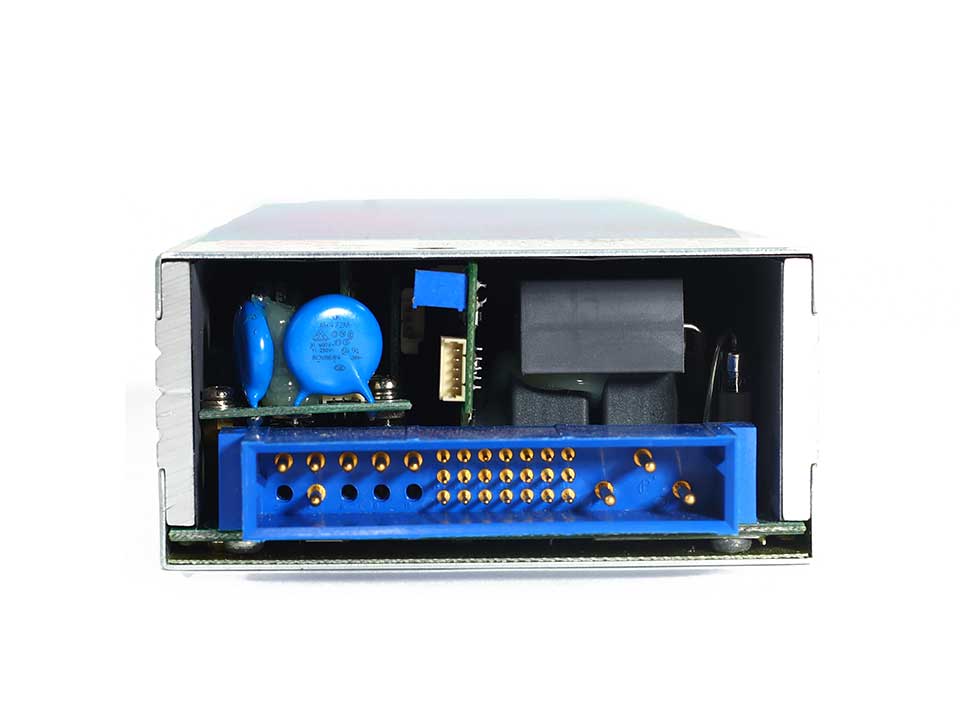

Rear Panel:
Input: 3-pin terminal (AC/L, AC/N, FG)
Output: High-current terminals (+V/-V)
Auxiliary Power: [email protected], [email protected] (isolated)
Control Ports:
PMBus (SDA/SCL) / CANBus (CANH/CANL)
Remote voltage/current programming (PV/PC)

5. Typical Applications
Industrial DC UPS systems
EV charging stations / Marine batteries
Renewable energy storage
Electrolysis/wastewater treatment
