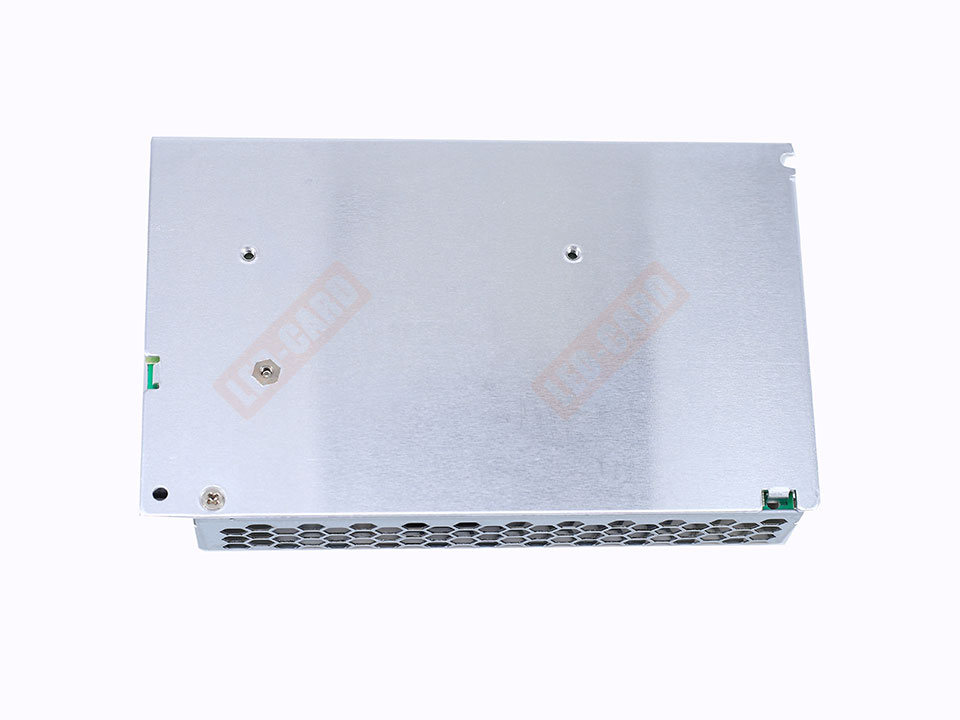

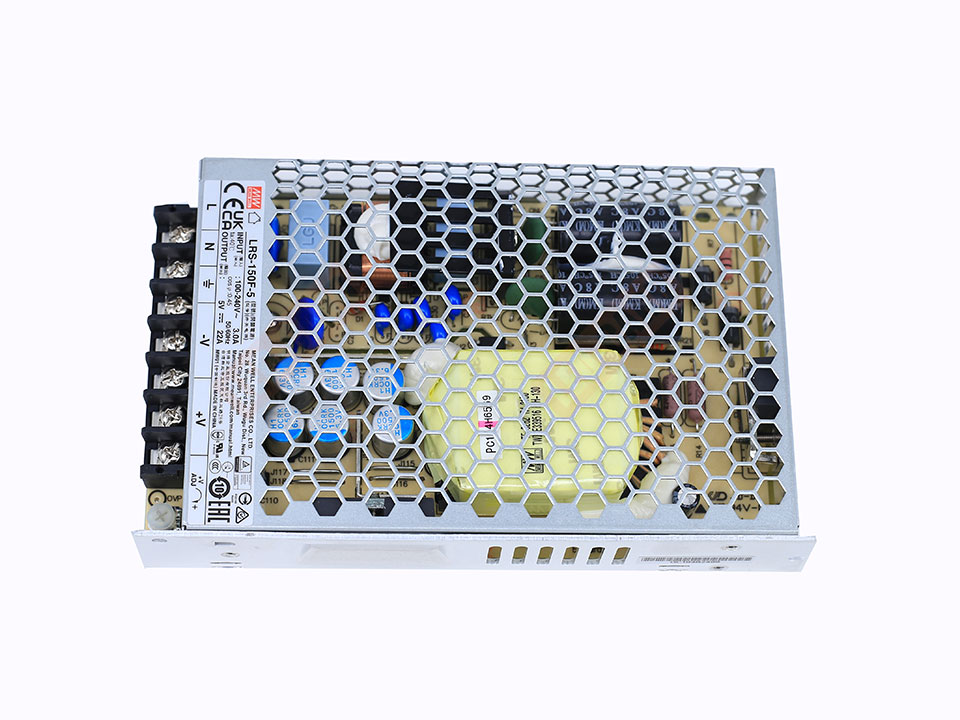

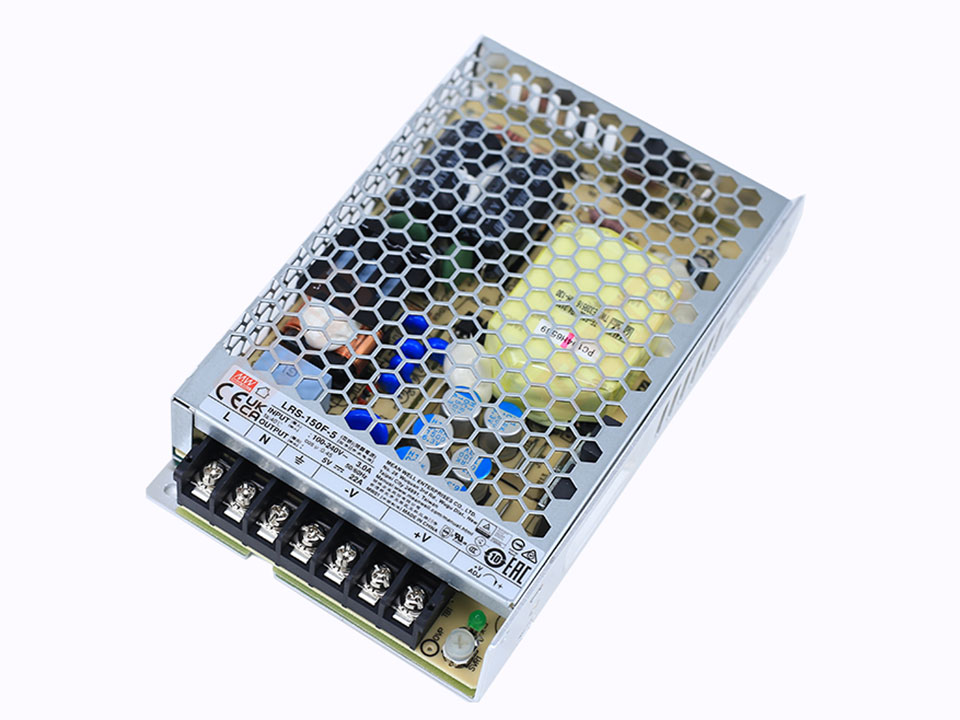

Meanwell Switching Power LRS-150F-5

MEANWELL
Compare

Power: 5V 22A 110W
Voltage Tolerance: 2%
Setup, Rise Time: 500ms, 30ms/230VAC 500MS,30ms/115VAC at Full load

$23.00

SKU: LRS-150F-5 Category: Tags: , , ,

Description

LRS-150F-5 is a 150W single group output closed power supply, with a 30mm low profile design, using 85 ~ 264Vac full range AC input. The whole series provides 5V, 12V, 15V, 24V, 36V and 48V output  in addition to the efficiency of up to 90%, the design of metal mesh shell strengthens the heat dissipation capacity, so that lrs-150f can work in the temperature range of – 30 ℃ to + 70 ℃ without fan. Provide ultra-low no-load power consumption  less than 0.5W  so that the terminal system can easily meet the international energy requirements. Lrs-150f has complete protection function and anti 5g vibration ability; It complies with TUV BS EN / en62368-1, BS EN / EN60335-1, BS EN / en61558-1 / – 2-16, ul62368-1 and gb4943 international safety regulations. Lrs-150f series provides a cost-effective solution for various industrial applications.

Output:
Power: 5V 22A 110W
Voltage Tolerance: 2%
Setup, Rise Time: 500ms, 30ms/230VAC 500MS,30ms/115VAC at Full load

Input:
Voltage Range: 85-264VAC / 127-431VDC
Frequency: 47-63HZ
Efficiency: 89.5%

Over load: 110-140% rated output power
Over Voltage: 5.75-6.75V
Working Temp: -60 to +70 degree
Working Humidity: 20-90% RH non-condensing

Authentication: BSMI RCM CCC UL TUV EAC CB EMC CE
Size: 159*97*30mm
Weight: 0.48KG

Additional information

Weight 0.5 kg
Dimensions 16 × 10 × 3 cm
