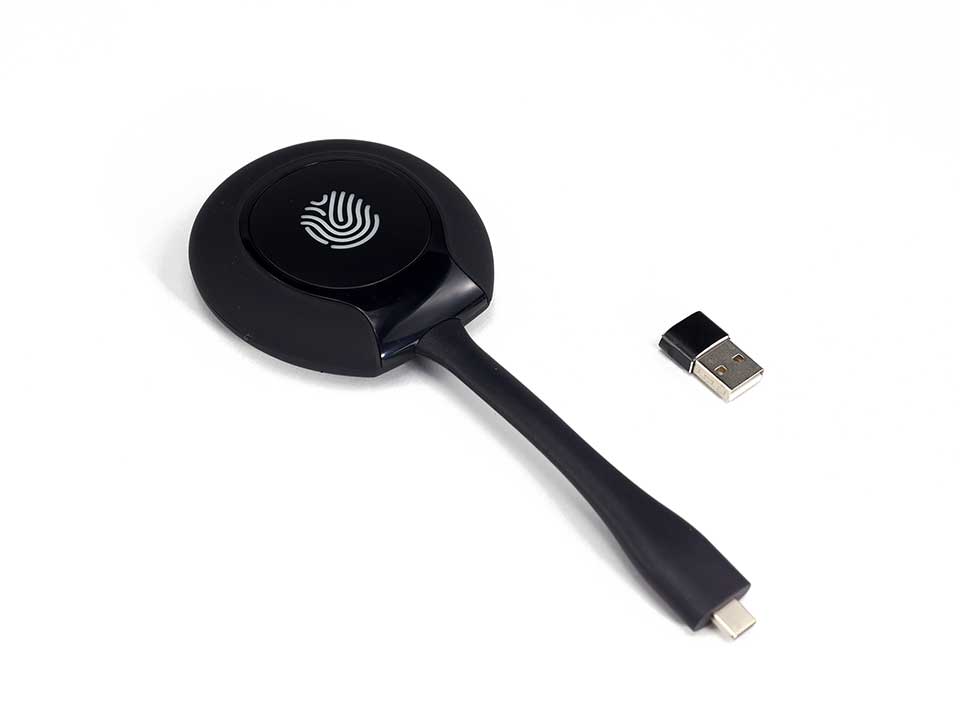

MEEXUS PTB1304 Mirroring Dongle

Description

Novastar PTB1304 Mirroring Dongle Technical Specifications

1. Product Overview
The PTB1304 is a professional-grade wireless mirroring dongle designed to create interactive audio-visual environments when paired with NovaStar’s TU playback processors and MEE meeting boards. This compact Type-C device enables presenters to effortlessly share content from smart devices to LED displays with cinema-grade quality.

2. Core Features

Ultra-Fast Connection: Achieves screen mirroring in just 3 seconds from activation
Low-Latency Transmission: <80ms delay for real-time presentation control
Long-Range Operation: Stable wireless transmission up to 15 meters
Plug-and-Play Simplicity: No drivers required for Windows/macOS systems
Visual Status Indicators: Multi-color LED signals different operation modes
3. Technical Specifications

3.1 Hardware Configuration

Processor: 900MHz high-performance CPU
Memory: 512MB DDR3 + 128MB NAND flash
Wireless Module: Dual-band 5GHz/2.4GHz Wi-Fi (867Mbps bandwidth)
Connectors: Type-C for both power and data transmission
Input/Output: Supports mouse touch feedback through host device
3.2 Performance Parameters

Video Resolution: 1920×1080 Full HD
Frame Rate: 60fps input/output capability
Startup Time: <15 seconds to operational ready state
Compatibility: Windows 7/10/11, macOS 10.12+
Operating System: Custom Linux-based firmware
3.3 Physical Specifications

Dimensions: Compact dongle form factor (exact dimensions not specified)
Weight: Lightweight portable design
Power: Powered directly through Type-C port
4. Environmental Specifications

Operating Temperature: +5°C to +38°C (41°F to 100.4°F)
Storage Temperature: -20°C to +50°C (-4°F to 122°F)
Humidity Range:
Operating: 0-90% RH (non-condensing)
Storage: 0-85% RH (non-condensing)
5. Functional Details

5.1 Screen Mirroring Workflow

Insert dongle into device’s Type-C port
Automatic connection establishment (≤3 sec)
Seamless screen replication to display system
5.2 Status Indicator System

Flashing Blue:
Pairing mode when connected to receiver
Software connection in progress when connected to computer
Solid Bright Blue:
Pairing complete/firmware updated
Ready state for mirroring
Solid Dark Blue: Active content mirroring
6. Pairing Configuration

6.1 Pairing Requirements

Required for initial Wi-Fi credential configuration
Ensures software version compatibility
Establishes master dongle priority in multi-dongle setups
6.2 Pairing Procedure

Connect dongle to receiver’s USB port via Type-C adapter
Wait approximately 10 seconds
“Connection successful” confirmation appears
Ready for wireless operation
7. Use Case Scenarios

Corporate Meetings: Wireless presentations in boardrooms
Education: Classroom screen sharing without cables
Digital Signage: Dynamic content updates for retail displays
Event Production: Quick setup for temporary AV installations
Gallery Exhibits: Interactive display systems
8. System Advantages

Enterprise Reliability: Industrial-grade components for continuous operation
Military-Grade Stability: Robust connection in crowded RF environments
Professional Integration: Designed for NovaStar’s professional AV ecosystem
Future-Ready: Firmware upgradeable for new features

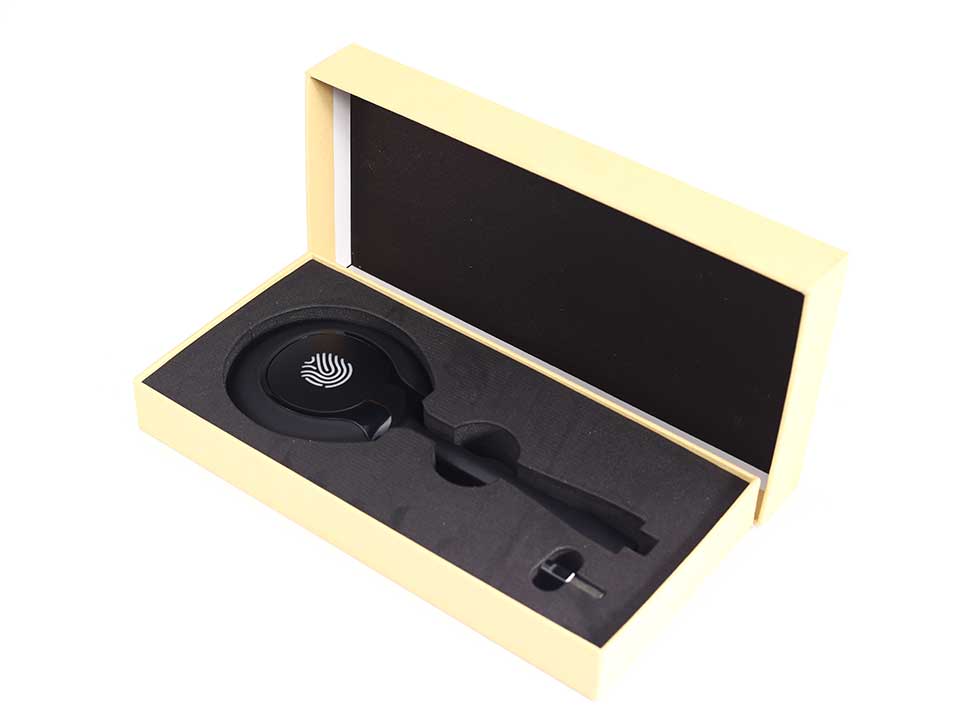

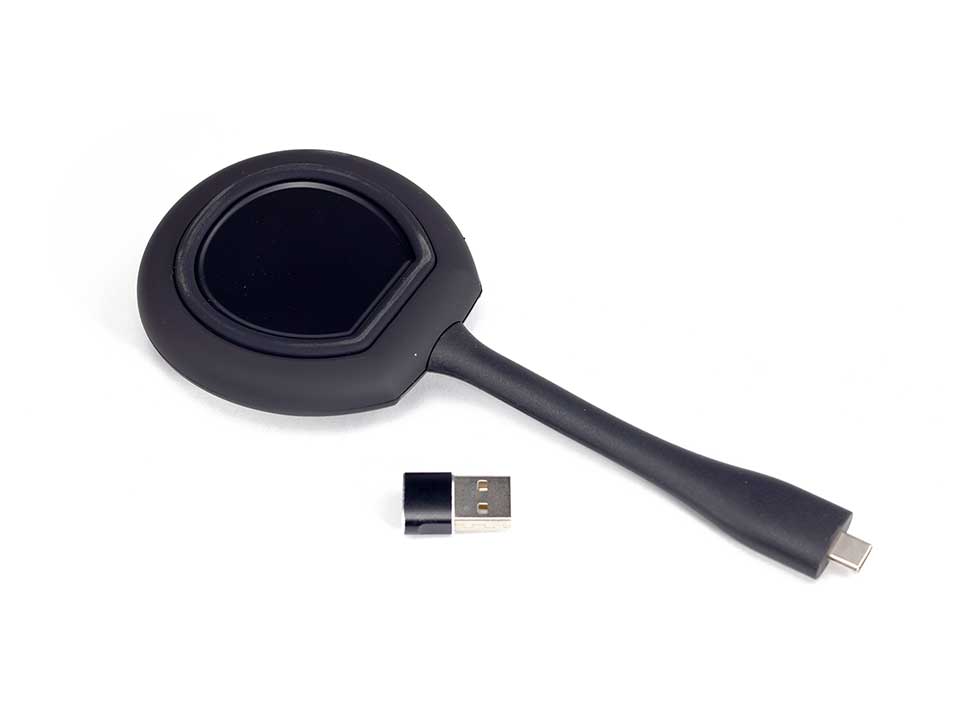

9. Included Accessories

Type-C to USB adapter (for pairing)
Basic operation manual
Warranty documentation
10. Certifications & Compliance

FCC/CE/RoHS certified
