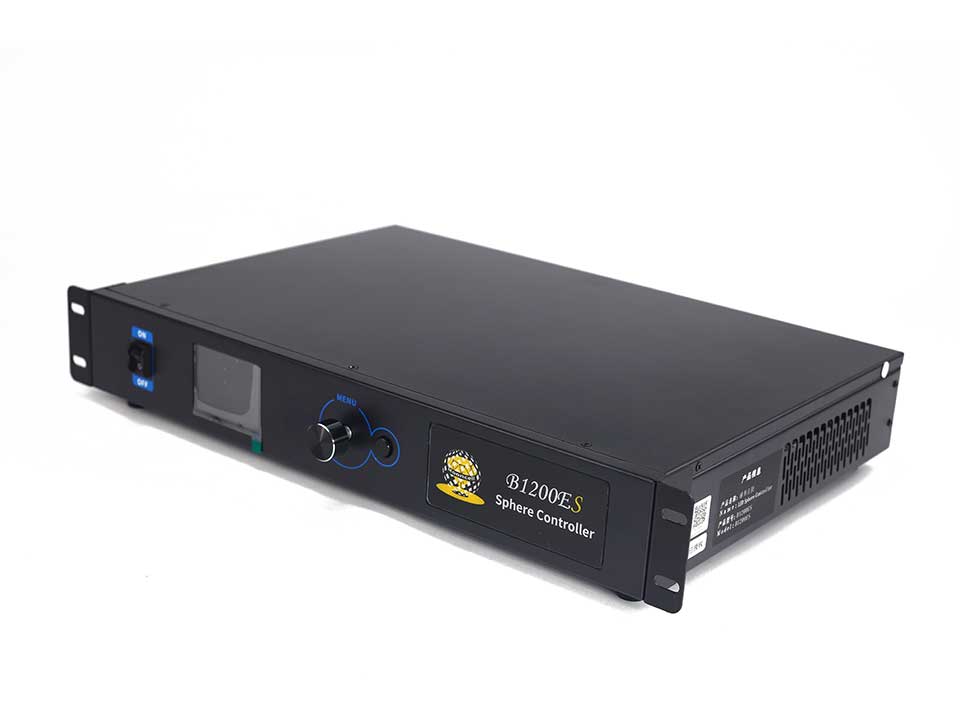

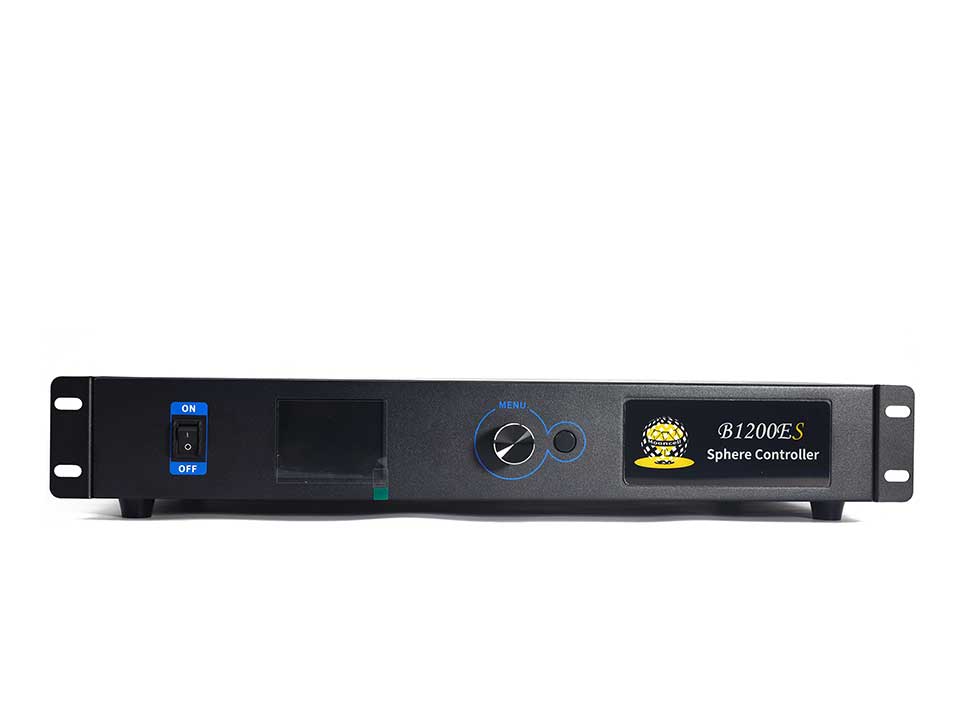

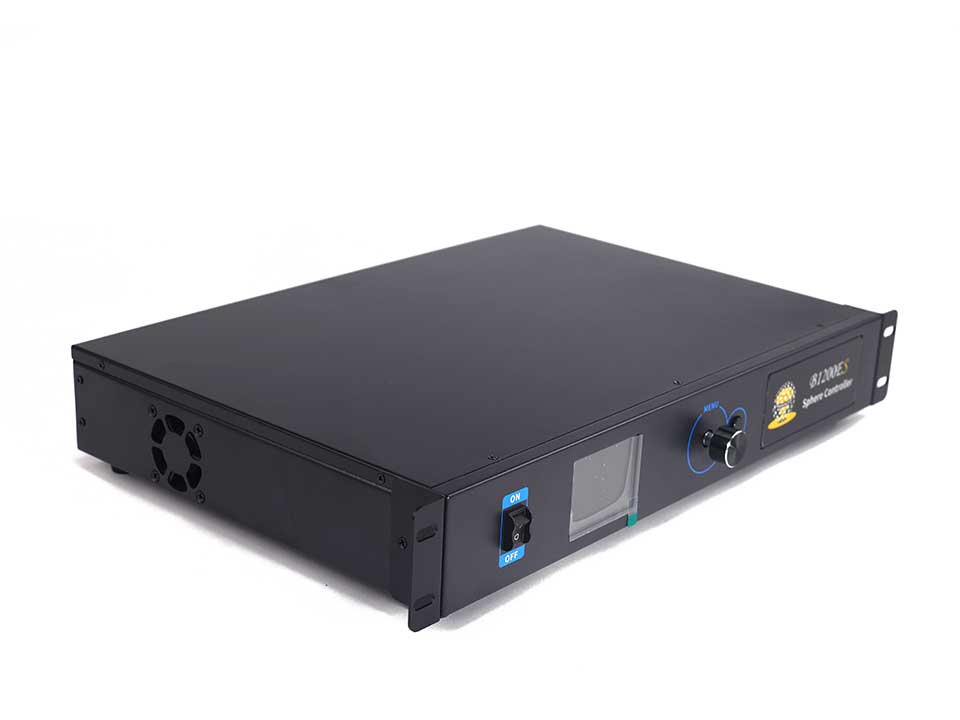

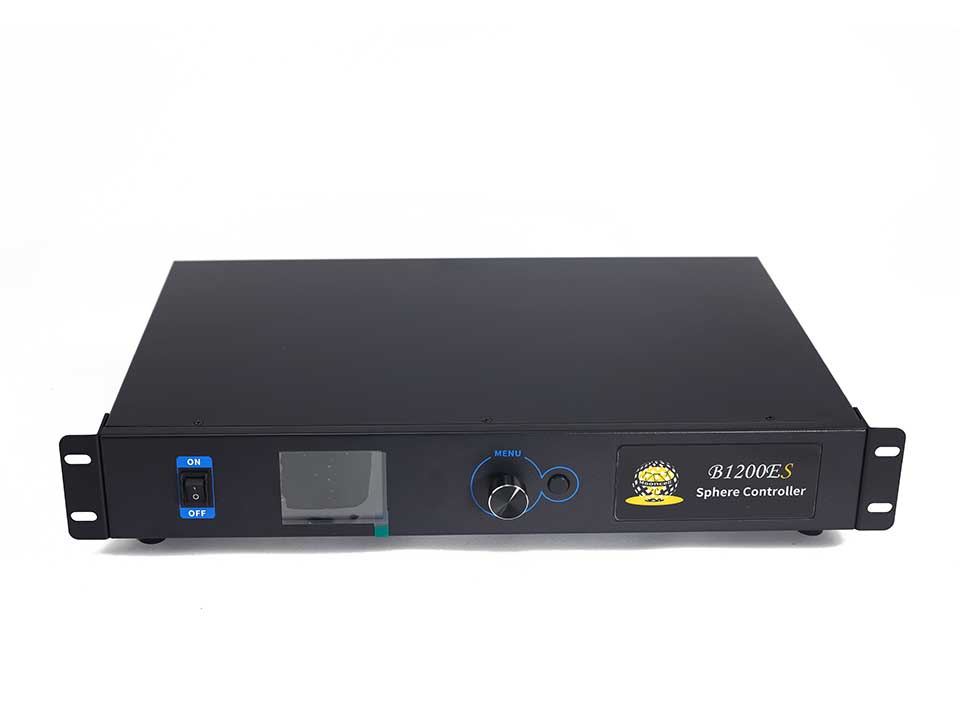

Mooncell B1200ES special shape controller

Description

Mooncell B1200ES special shape controller is an independent controller with customized 12 Gigabit Ethernet ports output; Carrying up to 7.8 million pixels; And it has powerful processing capabilities to effectively improve load utilization, perfectly supporting any 4K resolution; It has powerful processing capability, ultra stable performance, and ultra-high cost-effectiveness.

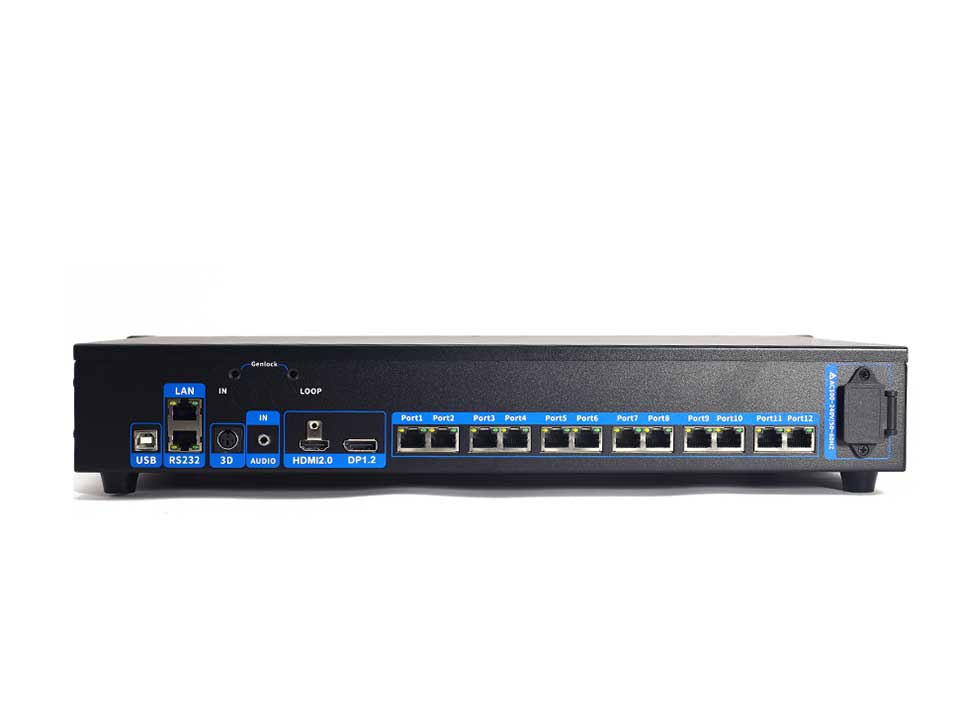

1*DP1.2 and 1*HDMI 2.0 video signal input
1*AUDIO audio input, synchronously transmitted through Ethernet cable
12*Gigabit Ethernet ports output, supporting arbitrary splicing of two up and down, left and right sides
1*USB interface communication, capable of connecting multiple sending cards on the same PC for control. Expanded 3D interface
Support network port loop backup and dual master control backup
Compatible with multiple frame rate inputs such as 30HZ, 50HZ, 60HZ, 120HZ, etc
Support upper computer software to monitor and send card operating parameters and status
Support configuration parameter readback
Support gigabit network error rate detection
Support max 7.8M dots( 8192 max width and 4096 max height )
Size: 437*258*67mm
Weight: 3470G
