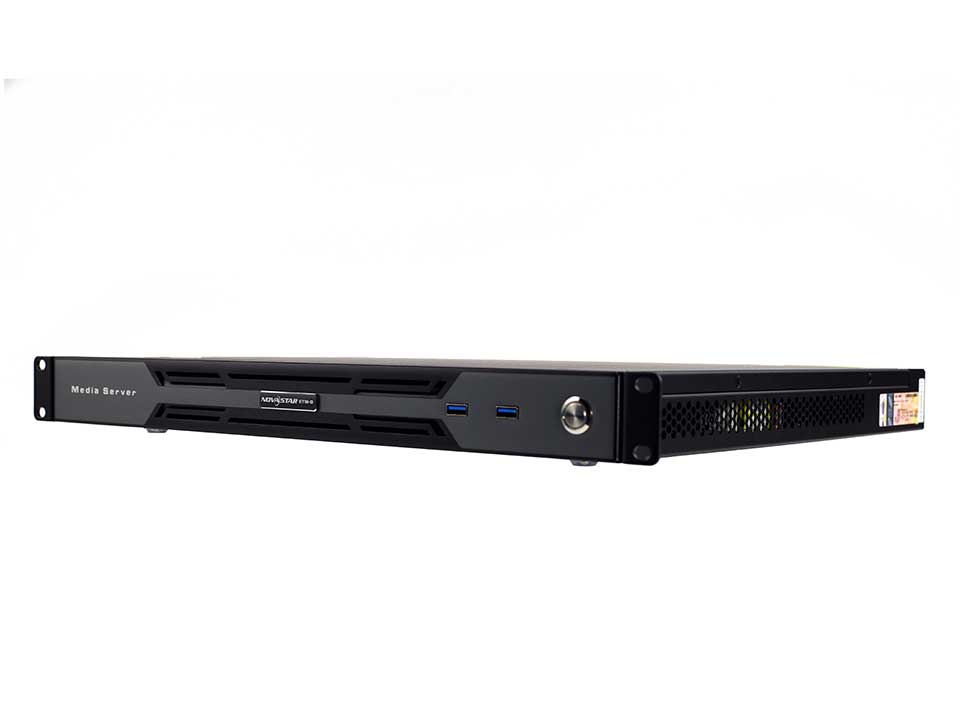

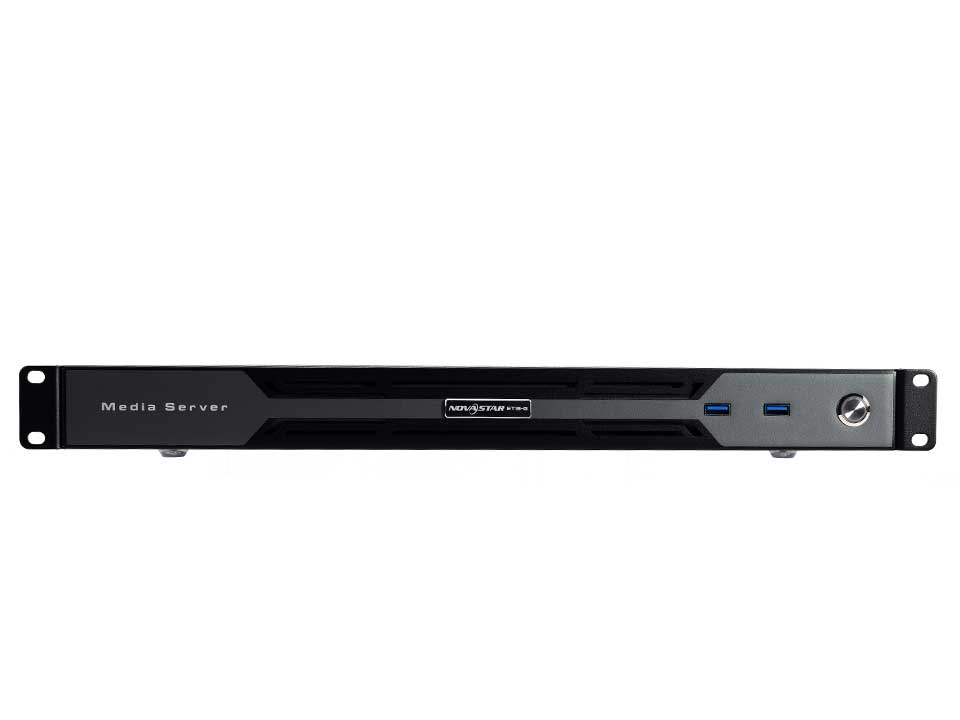

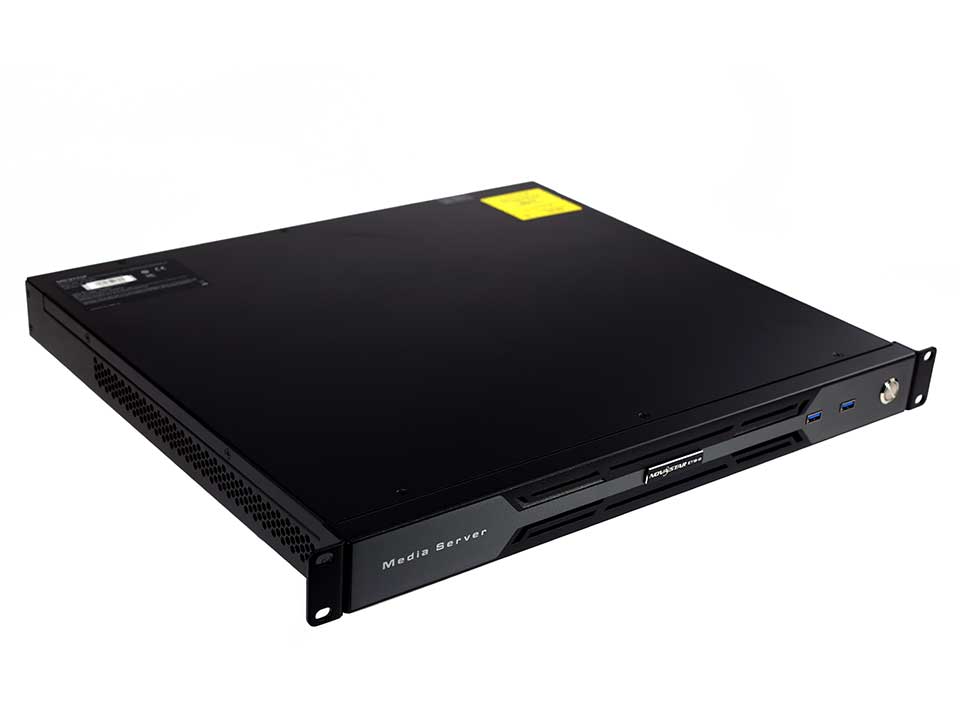

Novastar ET1S-G Media Server

Description

ET1S-G Media Server Specifications
1. Core Features
Output: 1× 4K@60Hz (DP 1.2)
4x HDMI 1.3 together copy DP 1.2 output content
1x HDMI 2.0 copies DP 1.2 output content
Partitioning: Single output split into ≤1024 zones for flexible mapping
Playback: 4 media layers + 1 audio, supporting video/image/PPT/NDI/streaming
Software: Built-in Kompass FX1 for intuitive control (auto-playback, layer masking, crossfade)
2. Hardware
CPU: AMD Ryzen 5th Gen
Memory: 16GB DDR4
Storage: 250GB SSD
OS: Windows 10 Enterprise LTSC
Power: 80W (100–240V)

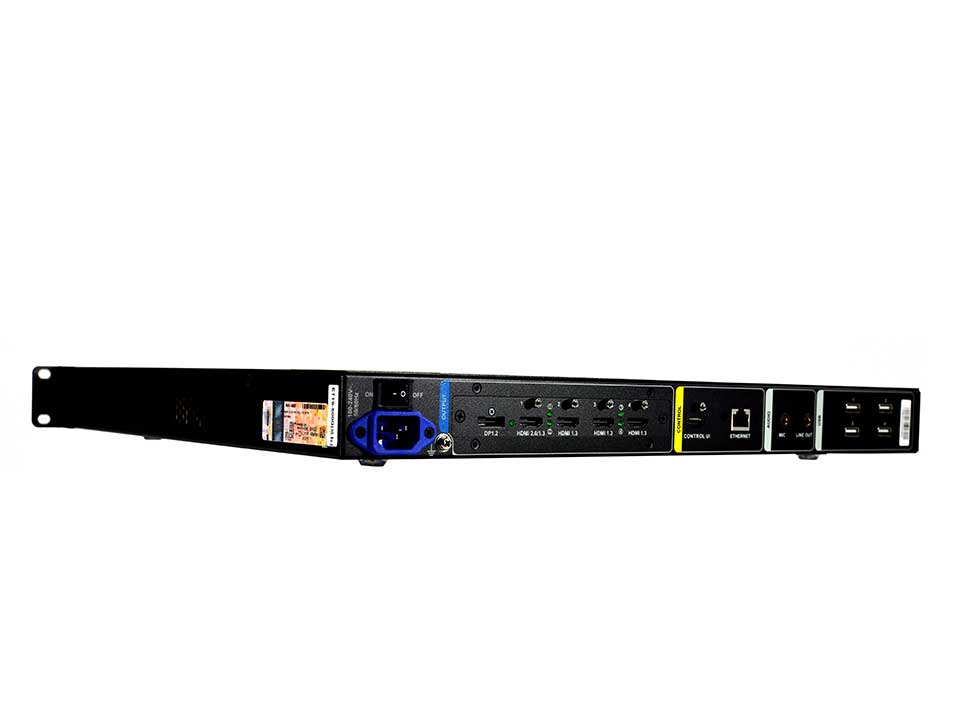

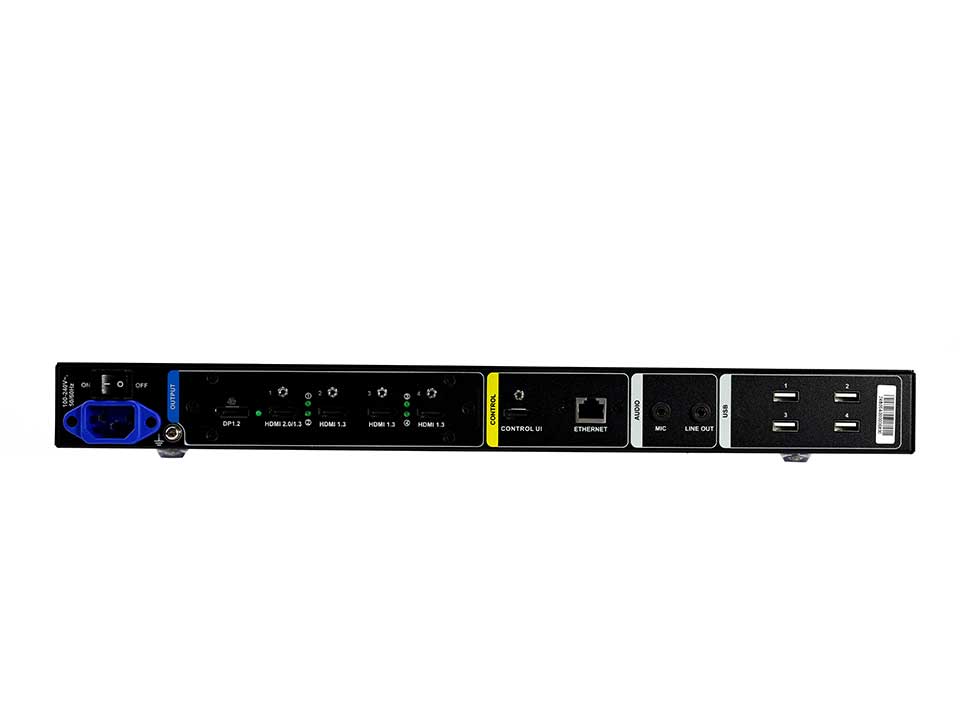

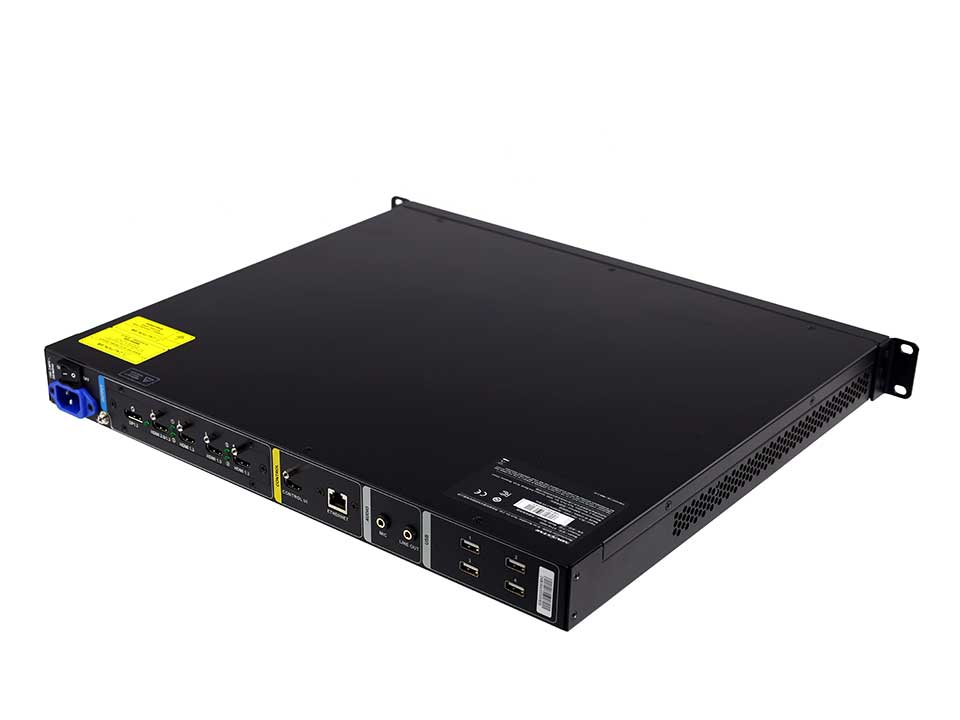

3. Connectivity
Video: DP 1.2, HDMI 2.0 (4K), 4× HDMI 1.3 (2K mirrored)
Audio: 3.5mm MIC input + Line OUT
Control: 6× USB (2x 3.0 + 4x 2.0), Ethernet (1Gb)
4. Environment & Dimensions
Operating Temp.: 0°C–45°C
Size: 482.6×43.6×400mm (rack-mountable, 5.2kg)
5. Certifications
CE, FCC, RoHS

Weight: 5.2KG
Size： 482.6*400*43.6mm
Power connector 100–240V~, 60/50Hz
Power consumption 80 W
