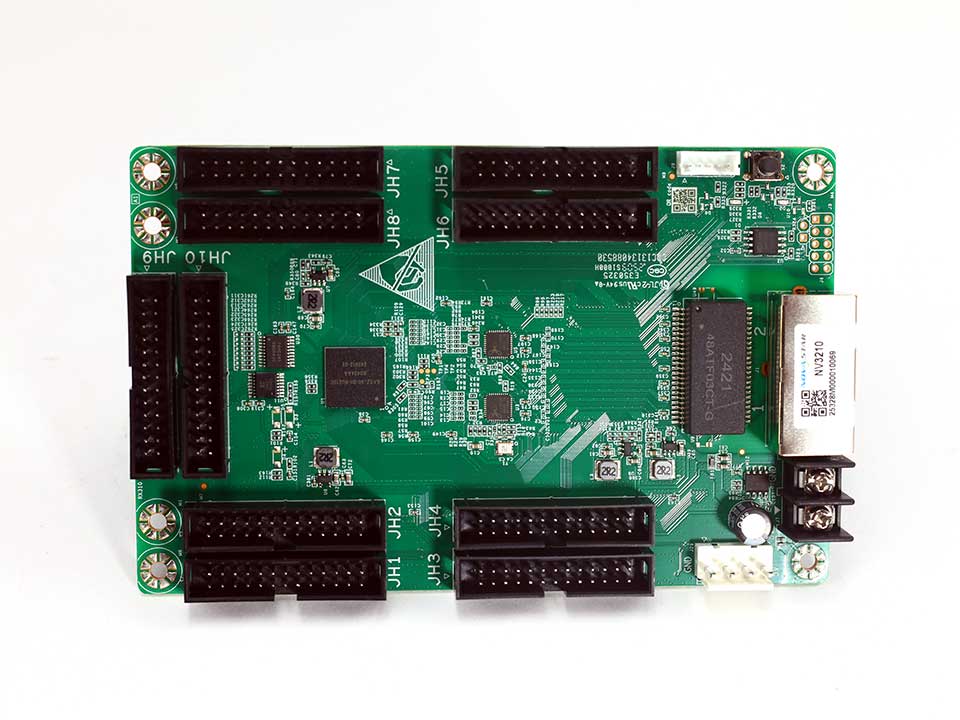

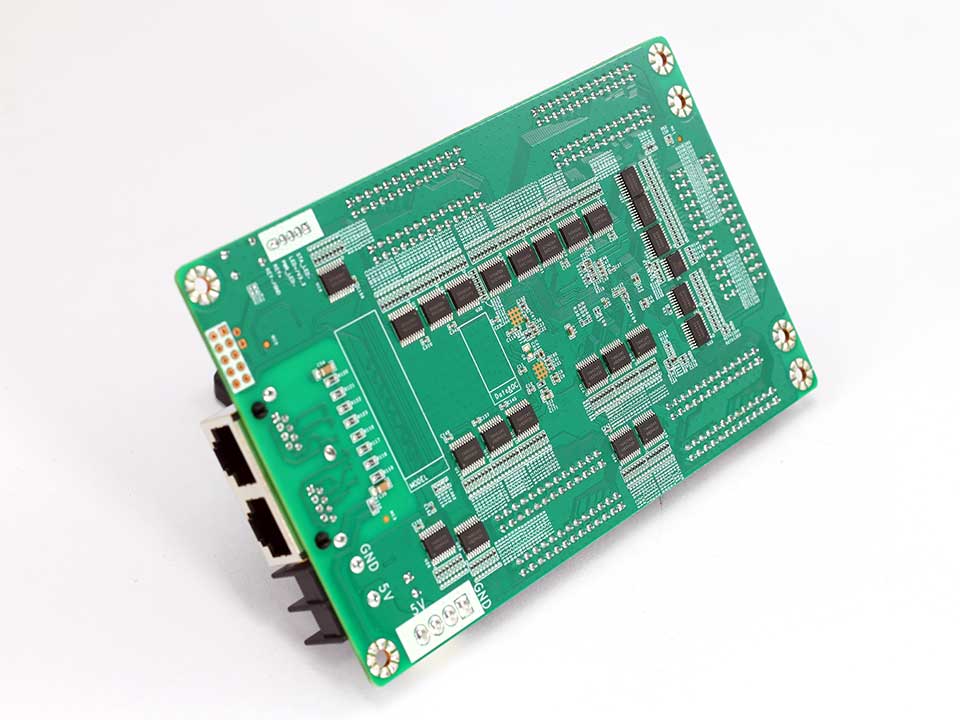

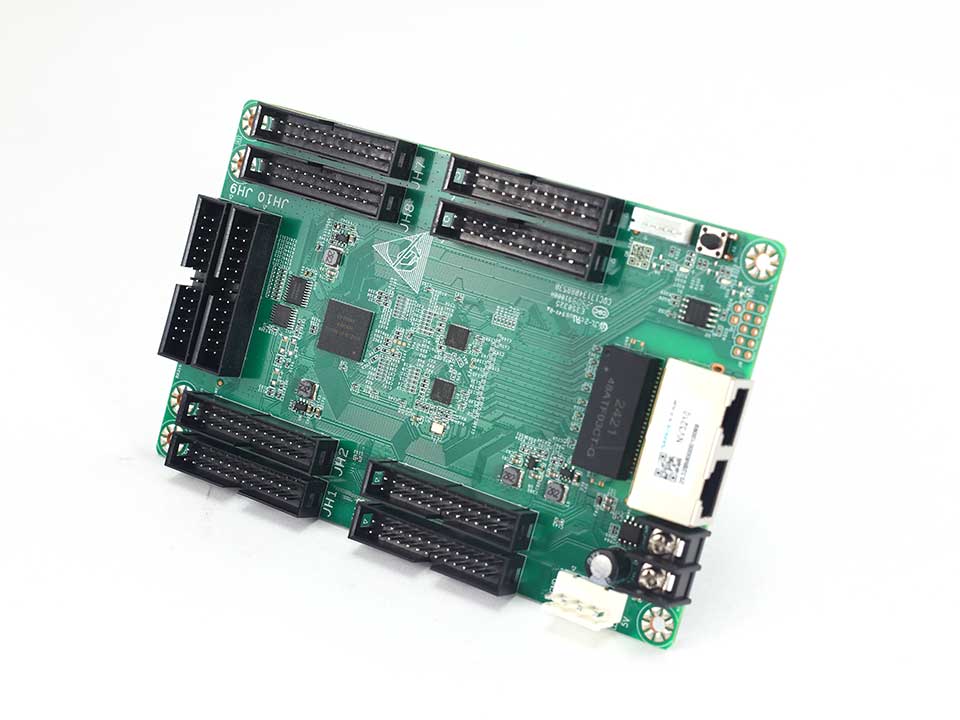

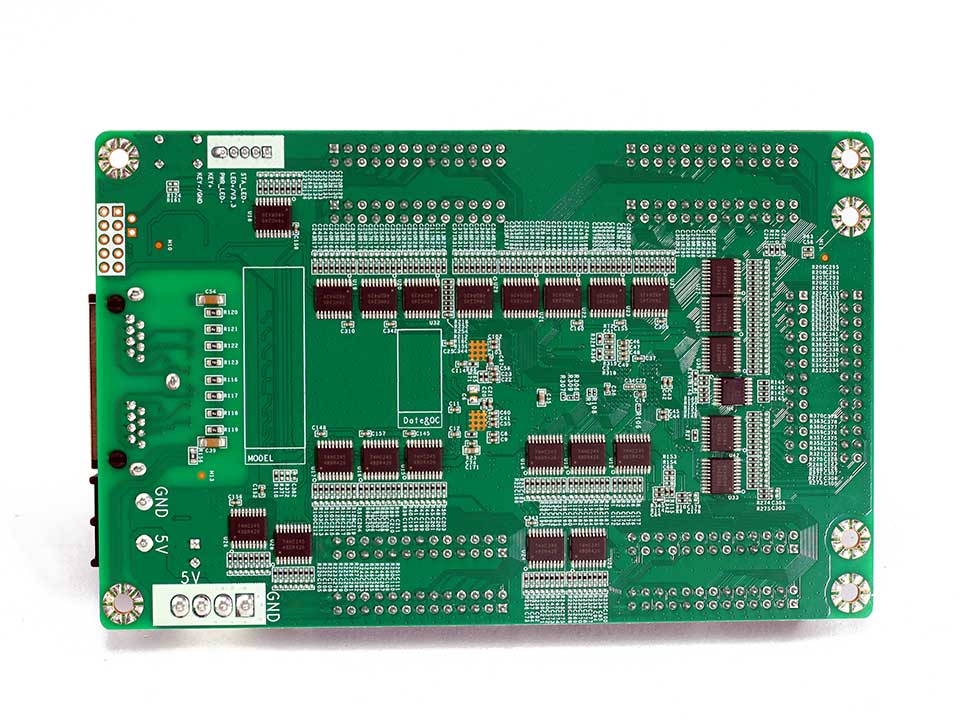

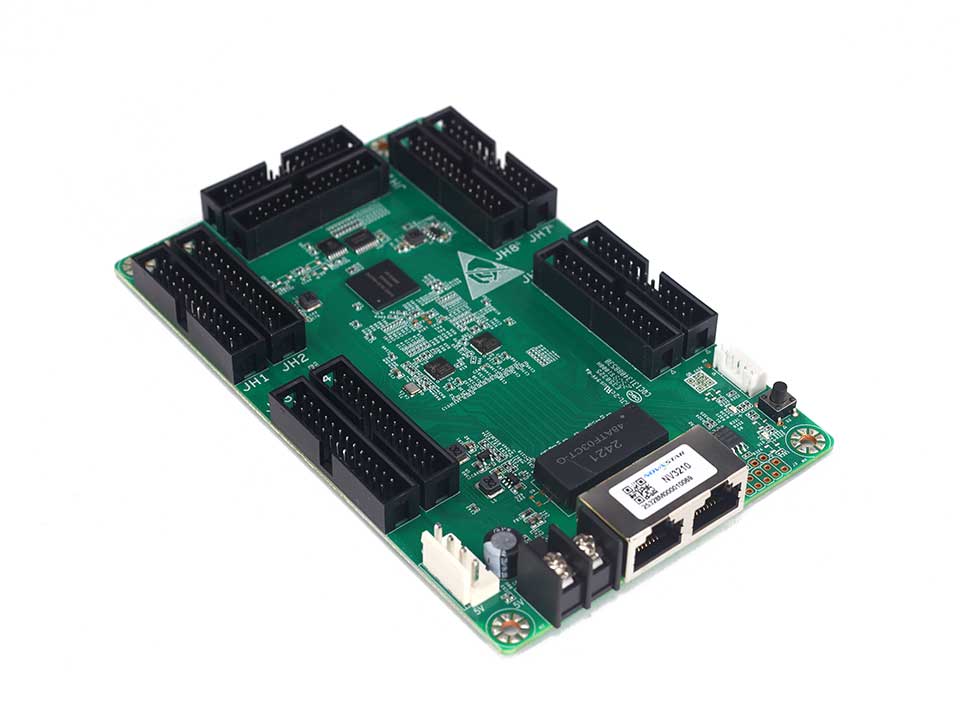

Novastar NV3210 Receiver Card

Description

NV3210 is a receiving card launched by Xi’an Nova Nebula Technology Co., Ltd. (hereinafter referred to as “Nova Nebula”), which supports color management, 18bit+, HDR, color correction on a per light basis, fast brightness and dark line adjustment, multi batch adjustment, low latency, 3D, RGB independent gamma adjustment, and 90 degree rotation of the screen, improving the display effect and enhancing the user experience. In addition, the product supports Flash management of the light board, which can store and retrieve correction factors and light board IDs.
NV3210 uses 10 standard HUB320F interfaces for communication, with high stability, supporting up to 40 sets of RGB real pixel data, 40 sets of 3-light dynamic sub-pixel data, or 30 sets of 4-light dynamic sub-pixel data.
For PWM driver ICs, the maximum load resolution per card is:
− 512× 512@60Hz (The video source bit depth is 8-bit)
− 512× 256@60Hz (Video source bit depth is 10 bits and 12 bits)
For general driver ICs, the maximum load resolution per card is:
− 512× 512@60Hz (The video source bit depth is 8-bit)

Input voltage: DC 3.3v-5.5v,
Constant current: 0.5A
Rated power: 2.5W
6 standard HUB320F connectors
Consumption temperature: – 20℃- + 70℃
Humidity: 10%RH-90%RH, non condensing
Temperature: – 25 ℃ – + 125 ℃
Size: 14.6mm x 91.5mm x 16.3mm
Weight: 104.5g
Passed: RoHS, EMC class A
