P1.53 indoor GOB Modules

SMD LED module
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.

Pixel pitch:1.53 mm GOB;Module Size:320X160 mm;Model Pixel:208*104Pixels;
lattice density:42250 dots/square meter;Pixel form:1R1G1B SMD1212

$62.50

Description

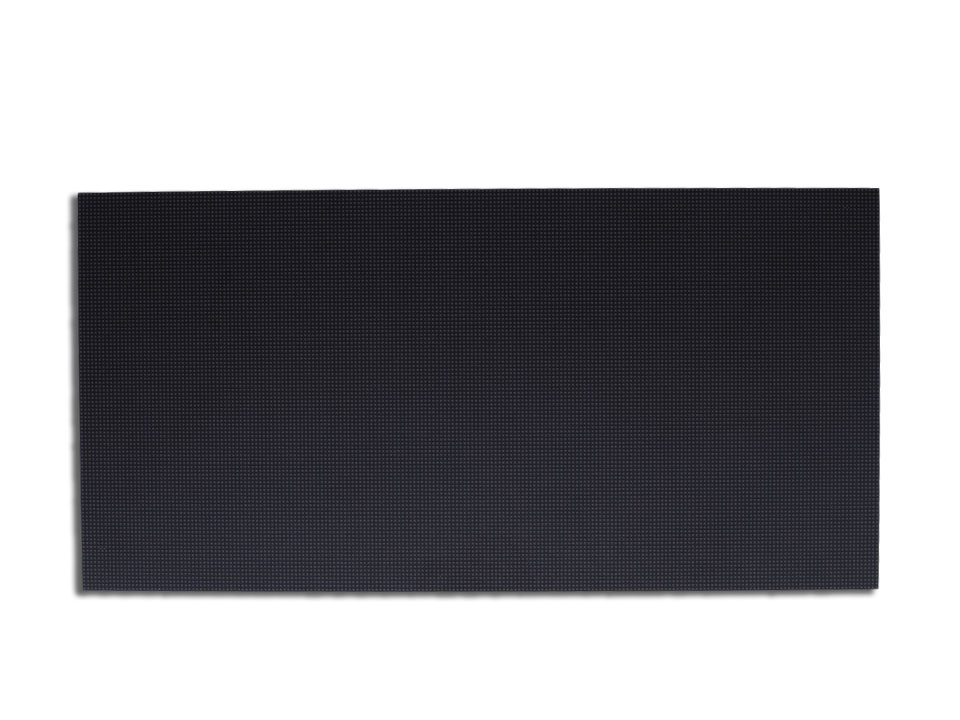

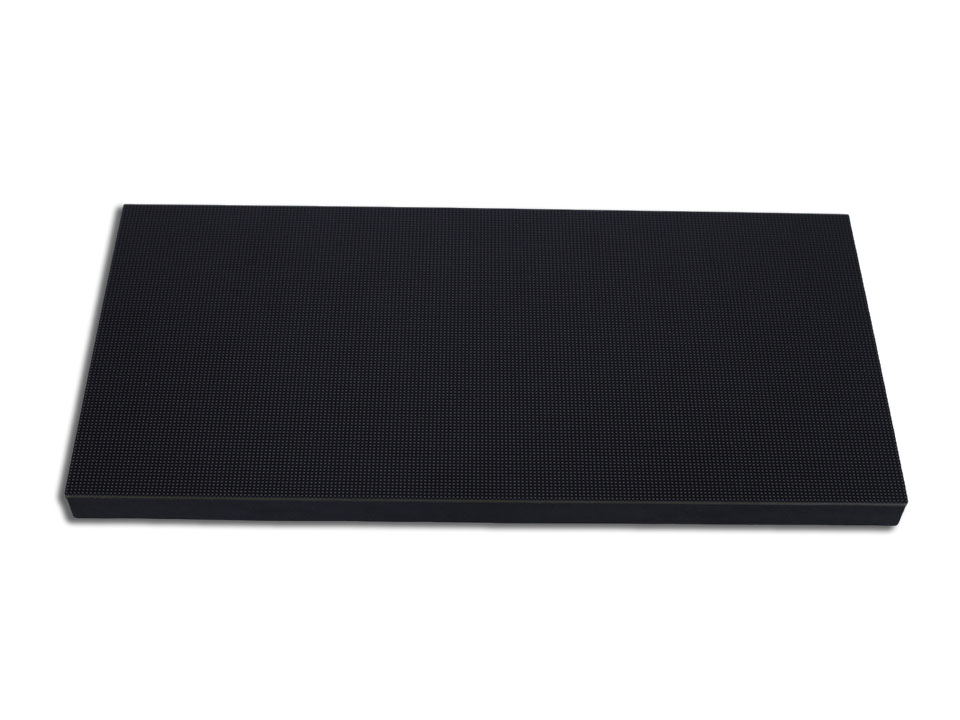

P1.53 indoor GOB Modules

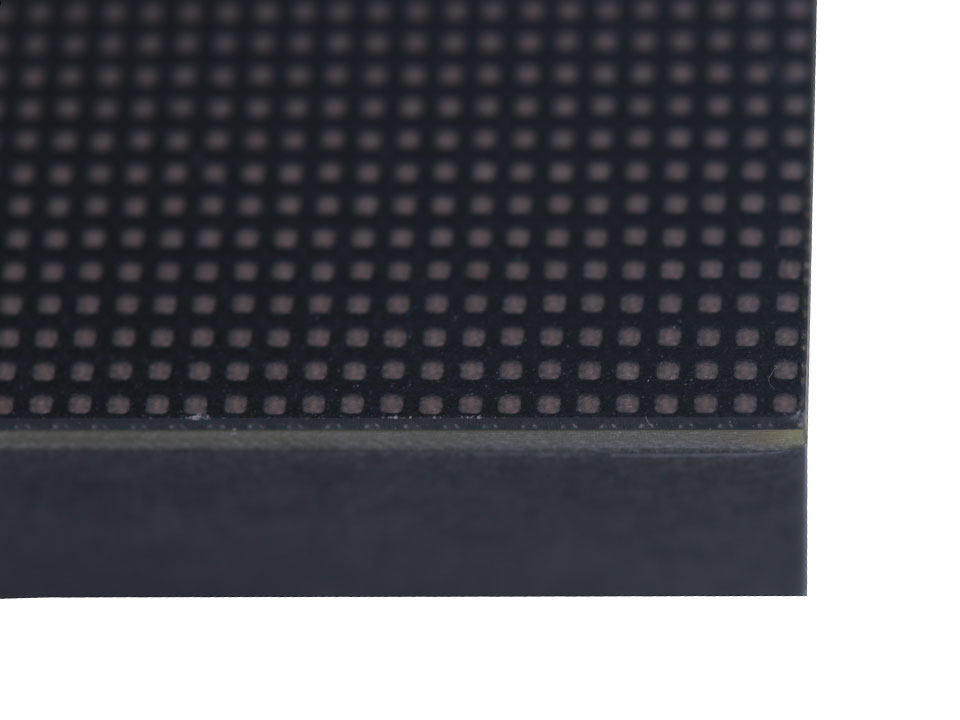

To solve the problem of light bead protection for small pitch LED modules, GOB modules are specially introduced.
This module uses high-performance and highly transparent resin to provide additional protection for LED beads.

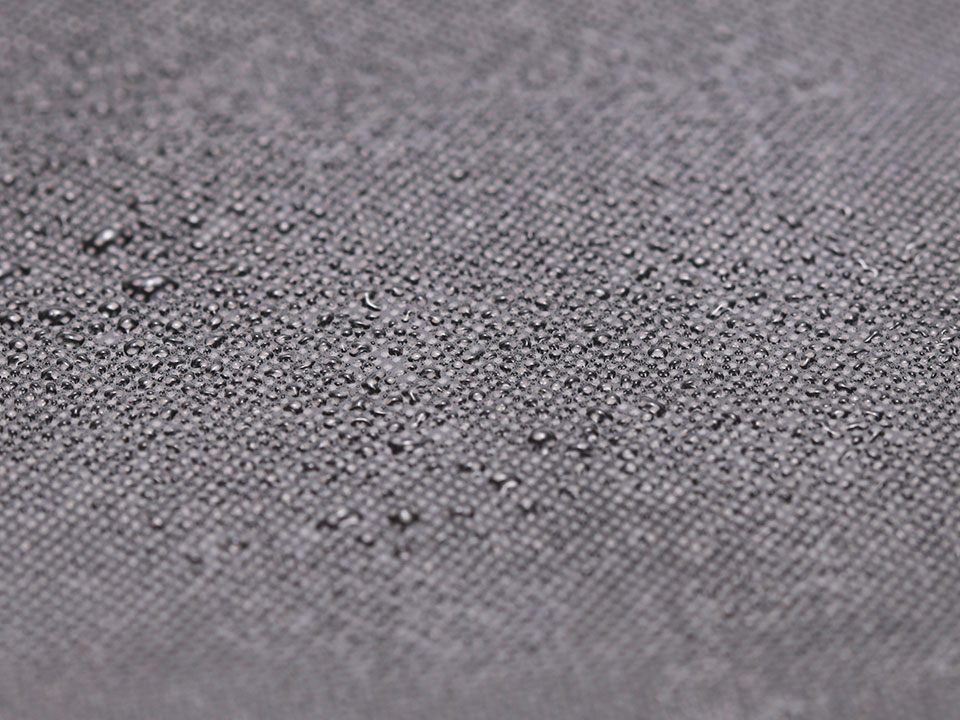

Thus achieving better waterproofing and moisture-proof performance for the LED module anti collision, anti vibration, anti oxidation, anti static effects, etc.

Pixel pitch 1.53 mm GOB
Module Size 320X160 mm
Model Pixel 208*104Pixels
lattice density 42250 dots/square meter
Pixel form 1R1G1B SMD1212
Best viewing distance 1m~20 m
Max power consumption 700W/square meter
Ave power consumption 300W/square meter
Max power per module 20W
warranty 1 year
Drive mode( Optional) Constant current 1/52 scan
Control system DVI card+Full color control card
Pixel type Real pixel
refresh frequency >=1200HZ
Horizontal View Angel > 110 degree
Working Environment
Temp:-20Celsius degree-+60Celsius degree
Humidity : 10%-90%
Working voltage
DC 5V
Lifetime >=100000 hours
Gray scale 12 bit/ 1 color
Color display manual adjust
Brightness >600 cd/square meter
Blind spot rate <0.00001
Waterproof Class IP43
Software Support window series system

You’d better buy all modules at a time for one led screen, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
So our modules can’t work together with your previous or later modules.
If you have some other special requirements, please contact our online sales.

Additional information

Weight 0.8 kg
Dimensions 32 × 16 × 2 cm
