P1.875 indoor GOB Modules

LED-CARD
Compare
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.

Pixel pitch:1.875 mm GOB;Module Size:300X60 mm;Model Pixel:160*32Pixels;
lattice density:28444 dots/square meter;Pixel form:1R1G1B SMD1515
particular suitable for LED Shelf Digital Signage

$55.00

Description

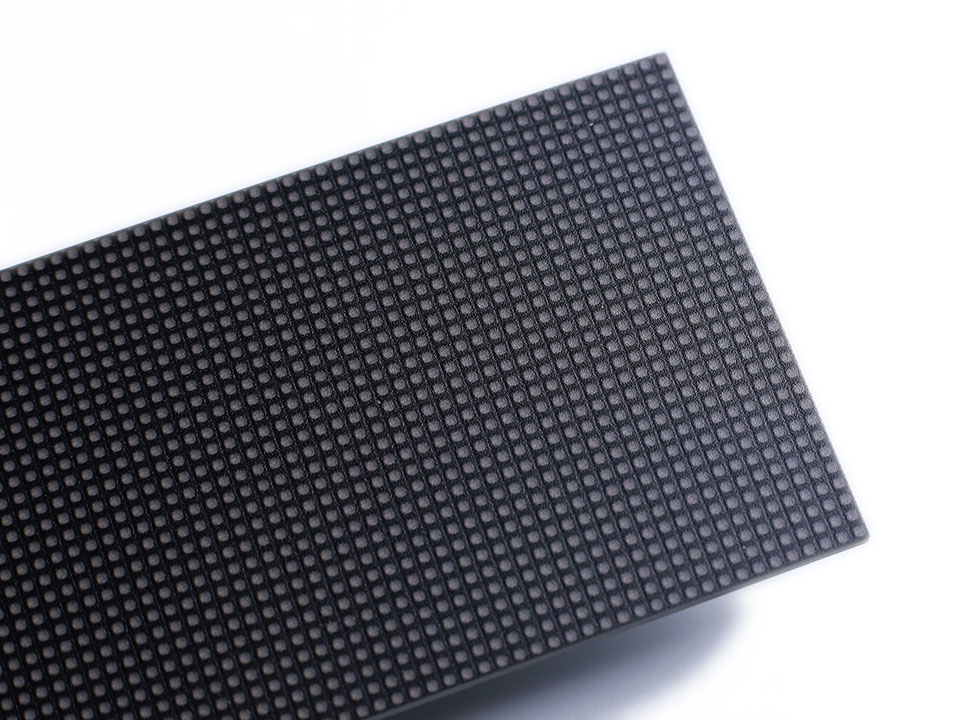

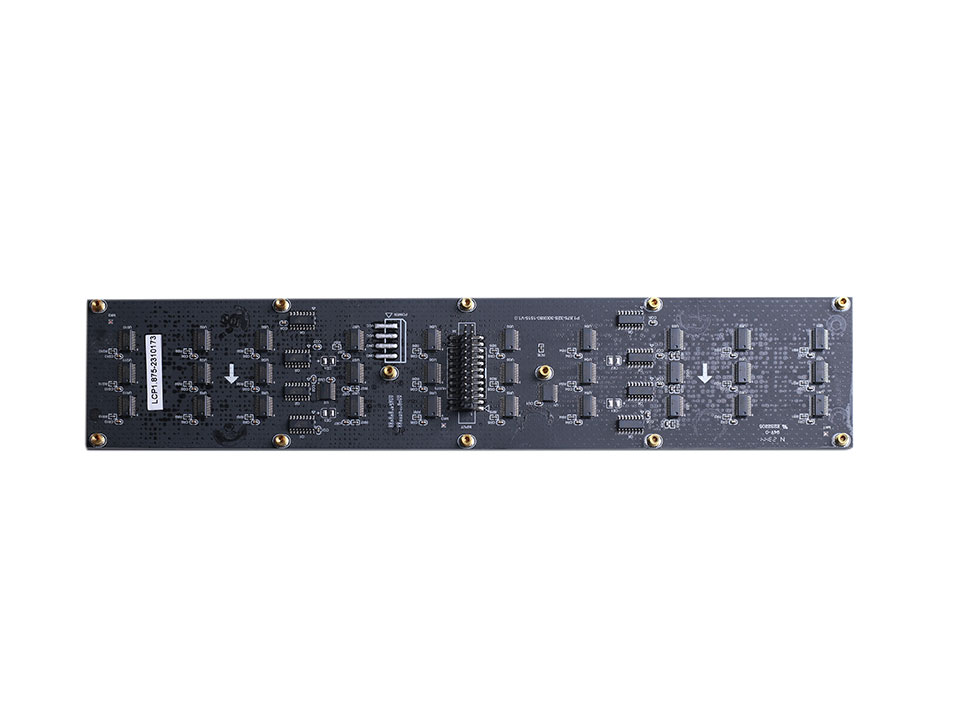

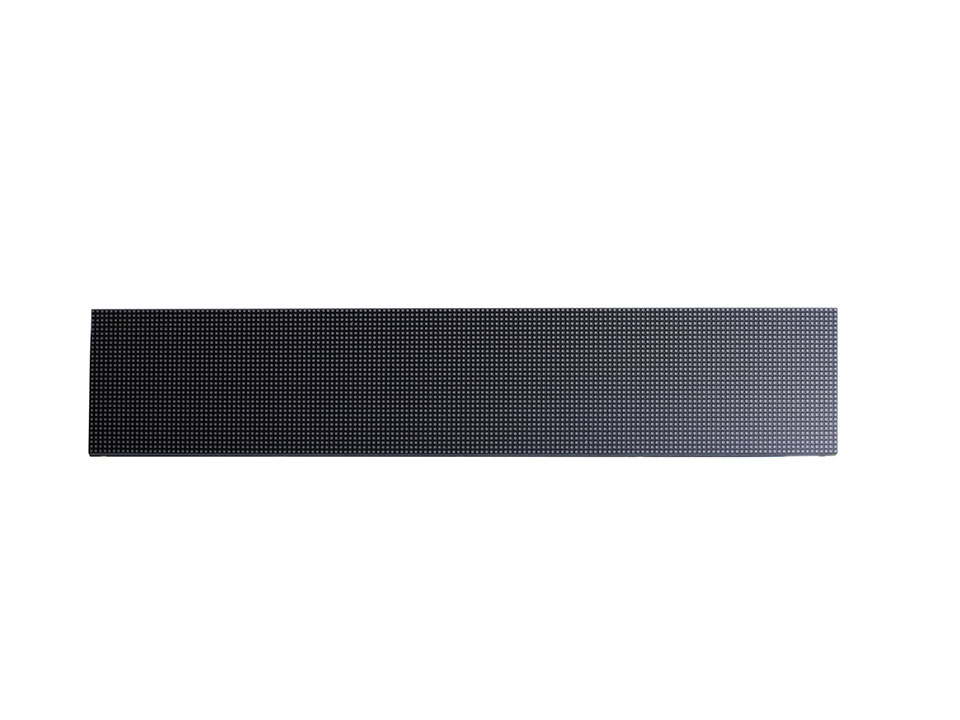

P1.875 indoor GOB Modules

To solve the problem of light bead protection for small pitch LED modules, GOB modules are specially introduced.
This module uses high-performance and highly transparent resin to provide additional protection for LED beads.
Thus achieving better waterproofing and moisture-proof performance for the LED module anti collision, anti vibration, anti oxidation, anti static effects, etc.

Pixel pitch1.875 mm GOB
Module Size300X60 mm
Model Pixel160*32Pixels
lattice density28444 dots/square meter
Pixel form1R1G1B SMD1515
Best viewing distance0.3m~20 m
Max power consumption700W/square meter
Ave power consumption300W/square meter
Max power per module18W
warranty1 year
Drive mode( Optional)Constant current 1/32 scan
Control systemasynchronous card
Pixel typeReal pixel
refresh frequency>=1200HZ
Horizontal View Angel> 110 degree
Working Environment
Temp:-20Celsius degree-+60Celsius degree
Humidity : 10%-90%
Working voltage
DC 5V
Lifetime>=100000 hours
Gray scale12 bit/ 1 color
Color displaymanual adjust
Brightness>600 cd/square meter
Blind spot rate<0.00001
Waterproof ClassIP43
SoftwareSupport window series system

You’d better buy all modules at a time for one led screen, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
So our modules can’t work together with your previous or later modules.
If you have some other special requirements, please contact our online sales.

Additional information

Weight0.2 kg
Dimensions30 × 6 × 2 cm
