Description

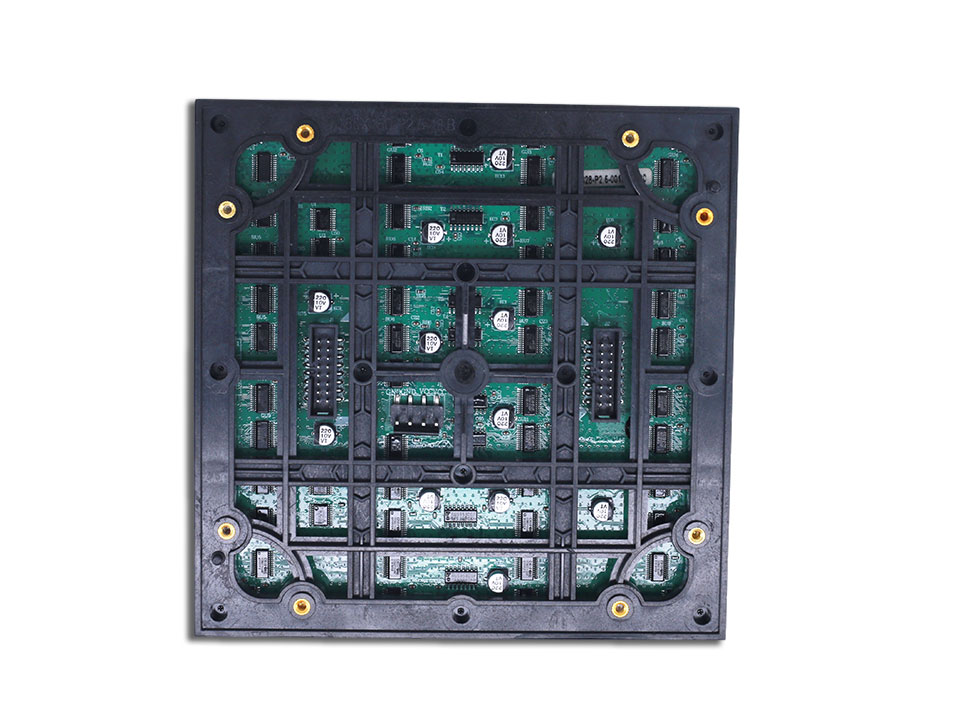

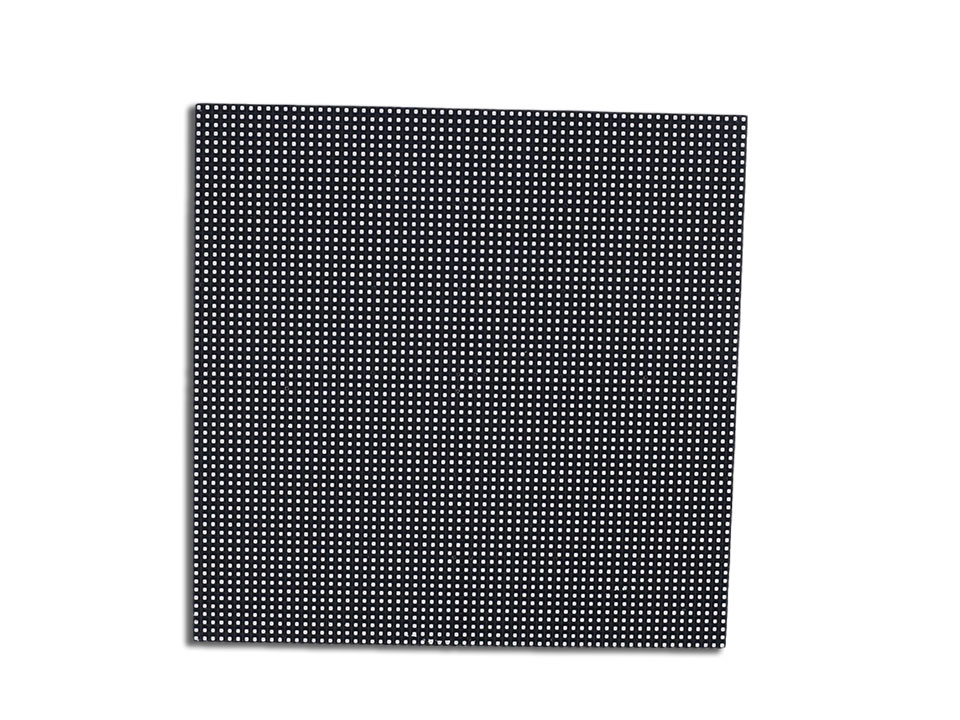

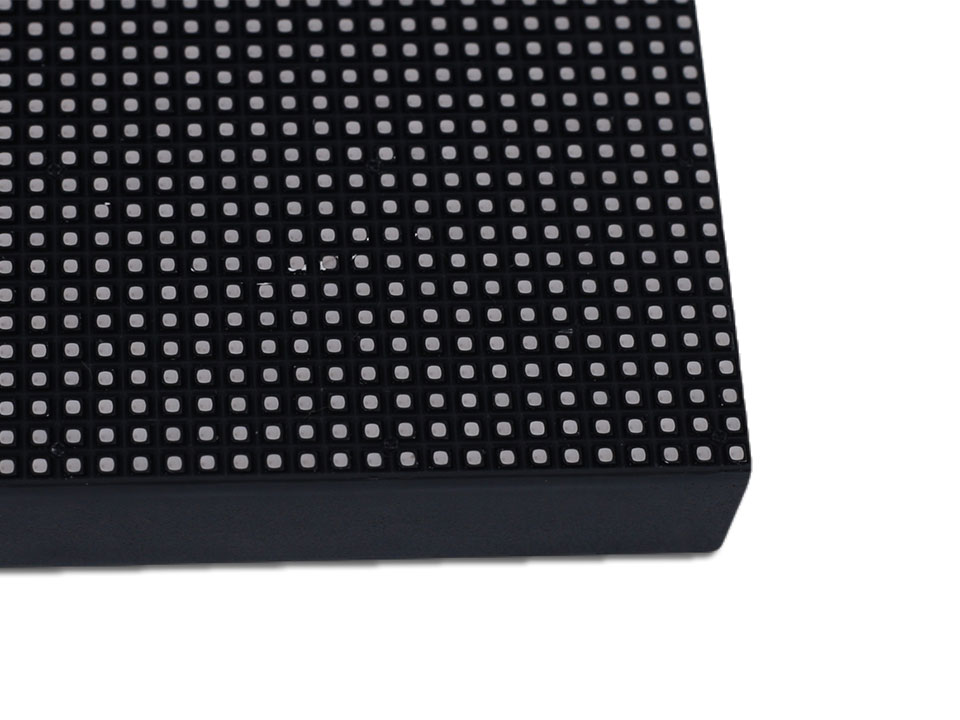

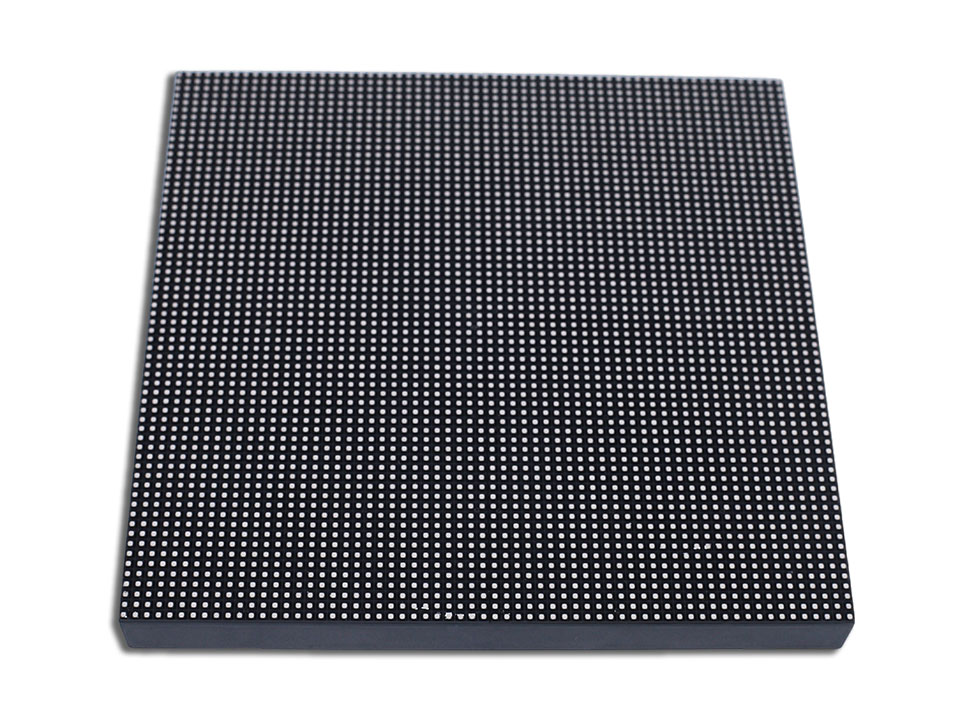

P2.5 outdoor LED Modules 160*160
Module:P2.5 Outdoor SMD LED module
Pixel pitch: 2.5mm
Pixel composition:NationStar SMD1415
Module Size (W *L)mm:160*160mm
Module Size (W * L) Pixel:64*64 dots
Drive modetd:16 Scan
Color:16,384 grey grades, totally 4,398 x 109M colors
Weight:0.4KG
Max brightness(CD/m²):≥5,000
Power consumption(Max per Module):50W/Module
Power consumption(Max):800W/SQM
Power consumption(average):250W/SQM
Viewing distance (Meter):2 – 200
Brightness adjustment:256 grades adjust
Viewing angle:≥120°
You’d better buy all modules at a time for one led screen, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
So our modules can’t work together with your previous or later modules.
If you have some other special requirements, please contact our online sales.
