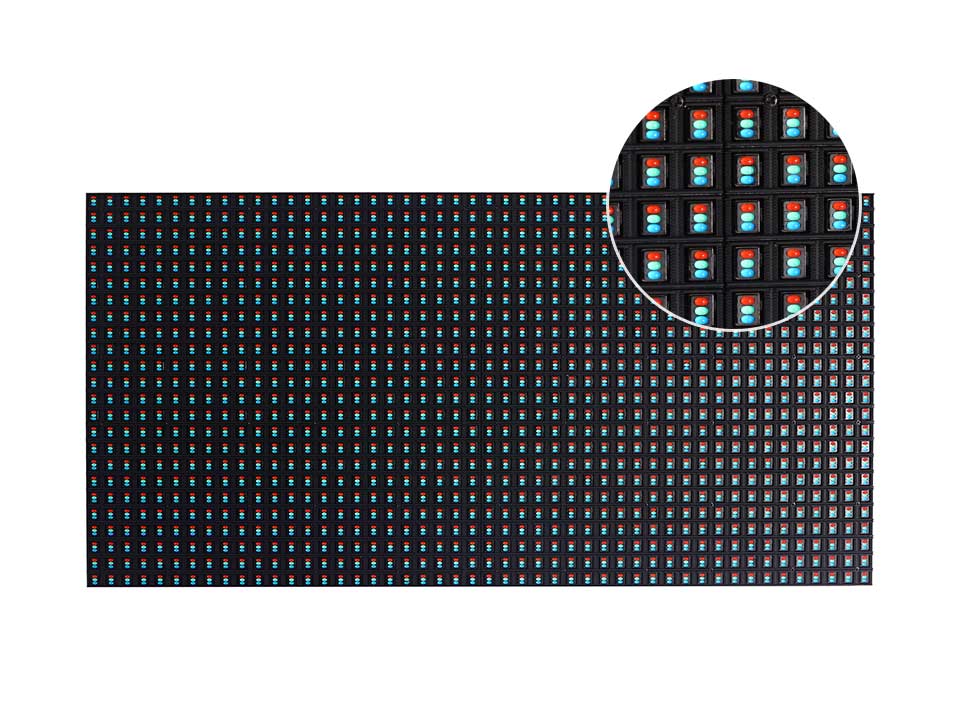

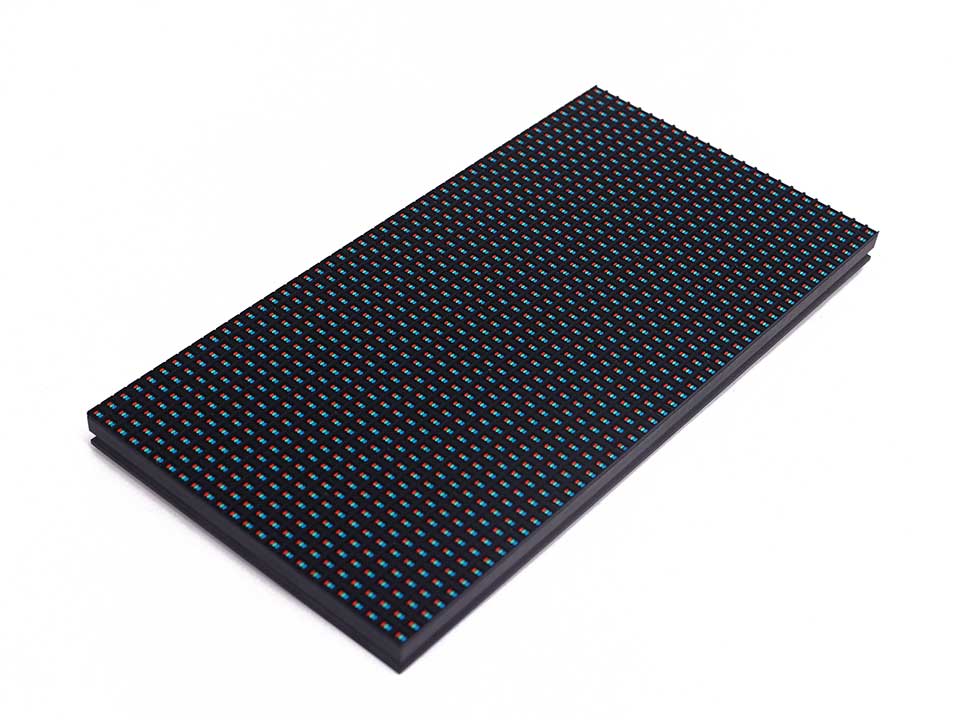

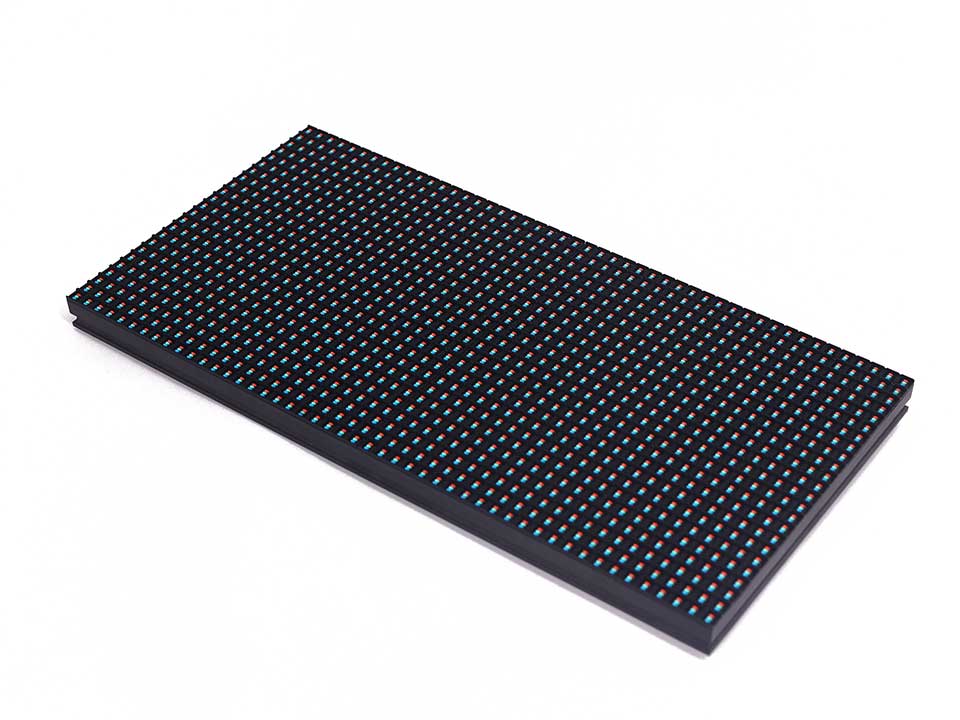

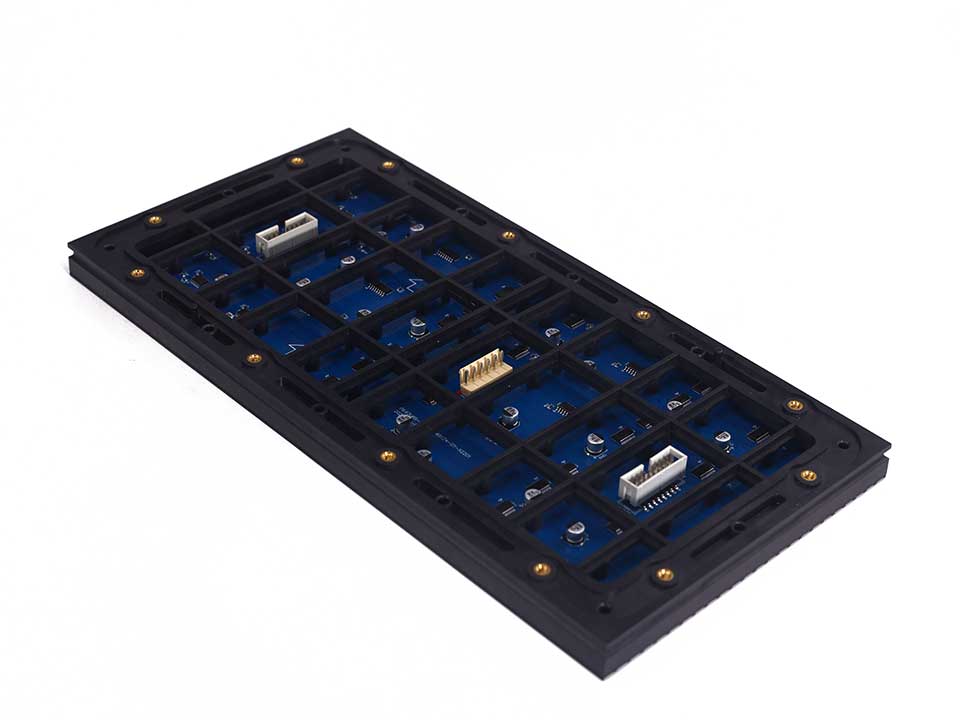

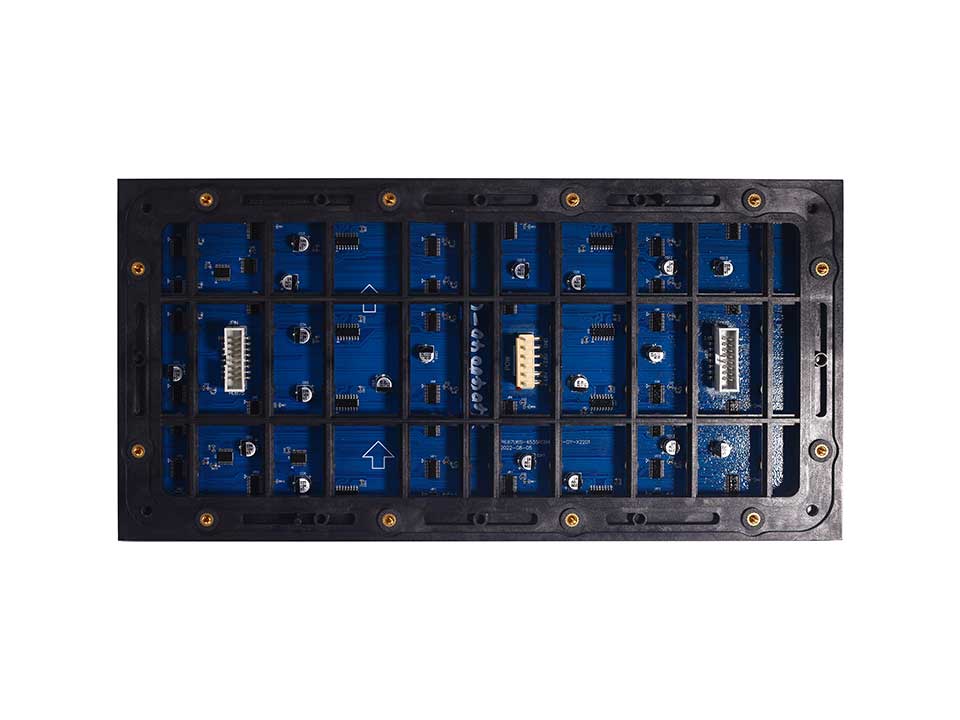

P6.67 High brightness LED Module 14000CD

Description

High brightness & energy-saving ICE LEDs (2.8/3.8V low voltage)
Superior image quality with circuit blanking & no low-gray color shift
Versatile for fixed/rental use in stadiums, traffic screens, ads & public displays

Pixel pitch: 6.67 (mm)
Brightness: 14000 nit
Driver mode: 1/6 Duty ICND2069AP
Weight: 0.55 (kg)
Pixel configuration: 1R1G1B
Module dimensions (W×H): 320×160 (mm)
Module dimensions (W×H): 12.6×6.3(Inch)
Pixel density: 22497 pixels/sq.m.
Refresh rate: ≥1920 Hz
Gray scale per color: 16384 level
Best View distance: 5-250M
Viewing angle (H/V): 100/50 deg
IP rating (Front/Rear): IP65/IP54
Power consumption (max/avg): 480/200 W/sq.m.
Max power per module: 24W
Input voltage (AC): DC 3.3V
HUB： HUB75
Operating temperature: -20~+ 50℃
Operating humidity: 10~90%

You’d better buy all modules at a time for one led screen, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
So our modules can’t work together with your previous or later modules.
If you have some other special requirements, please contact our online sales.
