(3 customer reviews)


One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.

VDWALL LedSync820H LED VIDEO PROCESSOR LedSync820C Online Shopping for LED Card, LED Display Parts, LED-CARD Shopping, Over 500 USD free of UPS/DHL Shipping

$520.00 $490.00

Out of stock

SKU: LedSync820H Category:

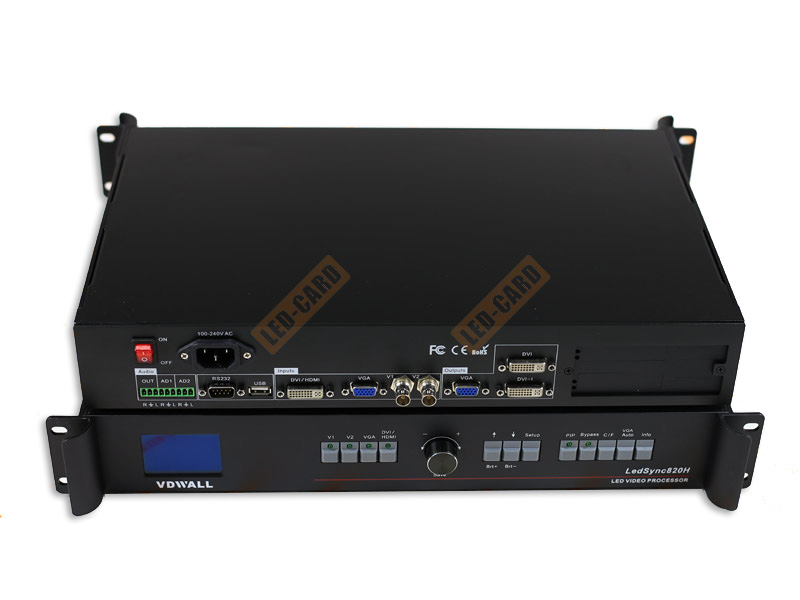

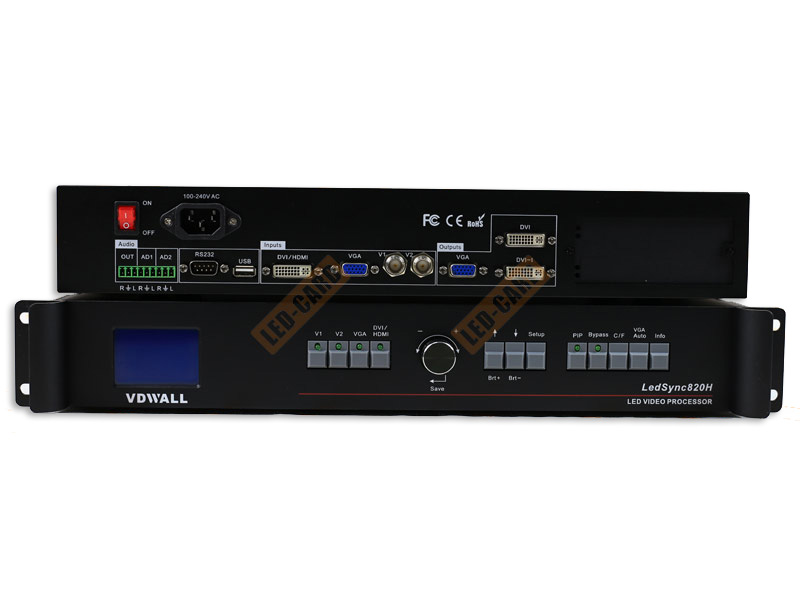

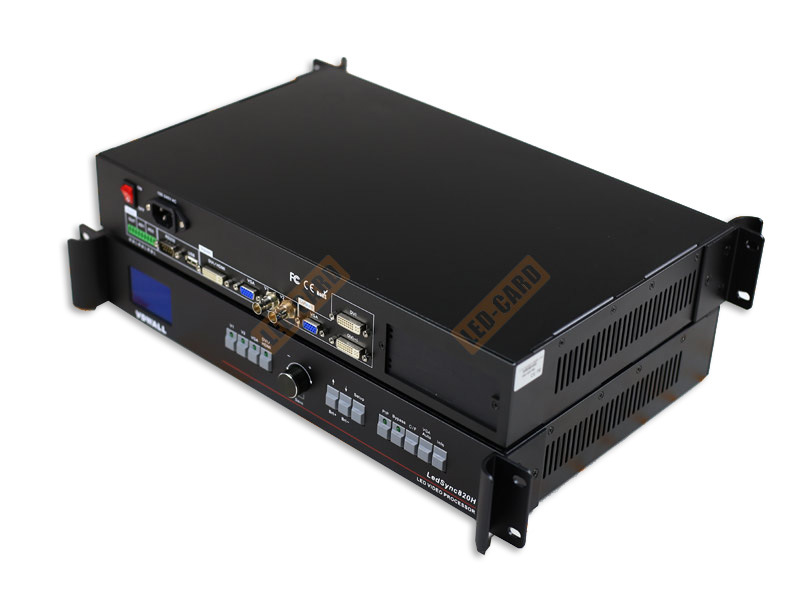

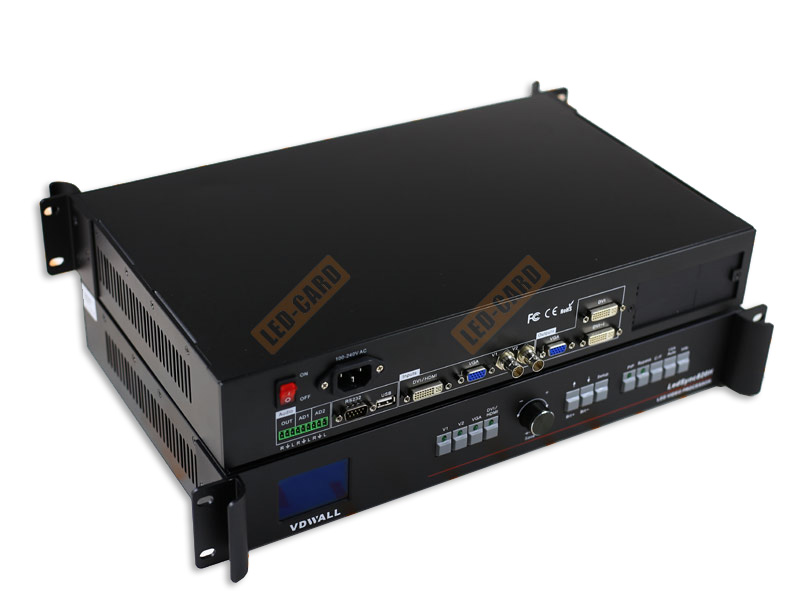

VDWALL LedSync820H LED VIDEO PROCESSOR ( Compatible LedSync820C )


Stopped production, latest Version is LVP615

< Free of DHL shipping >

  1. 10+ Bit Faroudja® DCDI Cinema Processing
  2. New Faroudja® Real Color®
  3. Faroudja® TureLife™ Video Enhancer
  4. Advanced 4×4 Pixels Interpolation Scaling Algorithm
  5. HDMI 1.3a with HDCP, HD 1080p input
  6. 10-bit Processing
  7. Seamless Switching, Fade-in / Fade-out and blend switching
  8. PIP/POP display
  9. 1920×1080 output for single machine
  10. Easy setup and adjustment through knob and keys on the panel. Full design RS232 command for operating and setting.
  11. Press keys on frontal panel to directly select 10-channel input signal source,
  1. 2 channels can be configured to connect external stereo audio, plus DVI/HDMI audio, there are 3-channel audio for synchronous switch
  2. 2 LED Transmission Cards Built-in ability (sending cards are optional)
  3. 24/7 ApplicationSpecifications
Nums/Type 2*Composite
1*VGA ¼(RGBHV ¼‰
1*DVI ¼(HDMI ¼‰ ¼(1.3a with HDCP ¼‰
Video system PAL/NTSC
Composite Video
1V ¼(p_p ¼‰/ 75Ω
VGA Format PC ¼(VESA ¼‰ ≤2048×1152 @60Hz
VGA Scope/Impedance R、G、B = 0.7 V ¼(p_p ¼‰/ 75Ω
DVI /HDMI 1.3 Format
( HDCP )
SD/HD ¼(CEA-861 ¼‰ ≤1920x1080P @60Hz
PC ¼(VESA ¼‰ ≤2048×1152 @60Hz
AUDIO Scope/Impedance 2.0Vp-p/10KΩ
Input Connectors VGA ¼š15pin D_Sub(Female)
DVI ¼š24+1 DVI_D
Composite ¼šBNC
Nums/Type 1*VGA ¼(RGBHV ¼‰
VGA/DVI Format 1024*[email protected]/75Hz
1280*[email protected]/75Hz
1600*[email protected]
1920*[email protected]/60Hz
1366*[email protected]
1440*[email protected]
VGA Scope/Impedance R、G、B = 0.7 V ¼(p_p ¼‰/ 75Ω
Output Connectors VGA OUT ¼š15pin D_Sub(Female)
DVI OUT1 ¼š24+5 DVI_I
DVI OUT2 ¼š24+1 DVI_D
Control Panel Button,RS232/USB
Power 100-240VAC 35W 50/60Hz
Operating Temp 5-40 ℃
Humidity 15-85%
Dimensions ¼(Package ¼‰ 145 mm (height) *370mm (width) *535mm (length)
Weight ¼(G.W. ¼‰ 5.0 Kg
Weight ¼(N.W. ¼‰ 3.2Kg
No included the sending card.

But it’s Perfect compatibility with Linsn sending card , Novastar Sending card , Dbstar , C&light sending card.

More Detail: VDWALL LEDSync820H LED Video Processor (PDF)

Additional information

Weight 6.5 kg

3 reviews for VDWALL LedSync820H LED VIDEO PROCESSOR ( LedSync820C )

  1. Örjan Eriksson (verified owner)

    Very simple to install and the picture quality is excellent. good choice!

  2. ruben gonzalez (verified owner)

    arrived within 5 days by ups,works pretty well, highly recommended

  3. Ramunas

    Very Fast

    It’s real fast, we get it in 2 days after we paid it by paypal.

Add a review
