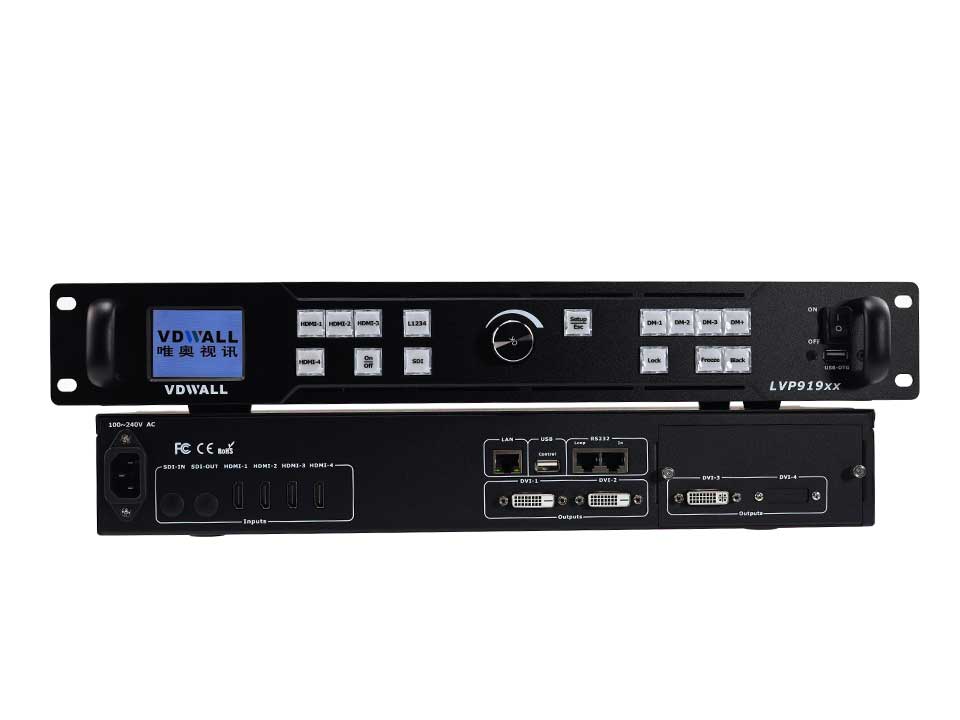

Vdwall LVP919D LED Video Processor

Description

1. LVP919D Core Features

• Multi-Layer Processing: Supports 3 image layers with PIP/POP display and 5 preset modes for flexible screen layouts.
• Seamless Switching: Smooth transition between inputs/outputs with no blackouts or blurring.
• Customizable Outputs: Adjustable size, position, and cropping for up to 4 synchronized DVI outputs (mosaic mode supported).
• Color & Brightness Control: Features gamut adjustment, brightness tuning, and low-gray correction for accurate LED display performance.
• User-Friendly Controls: Knob adjustments, freeze/black screen functions, and LAN/RS232/USB control (open protocol).

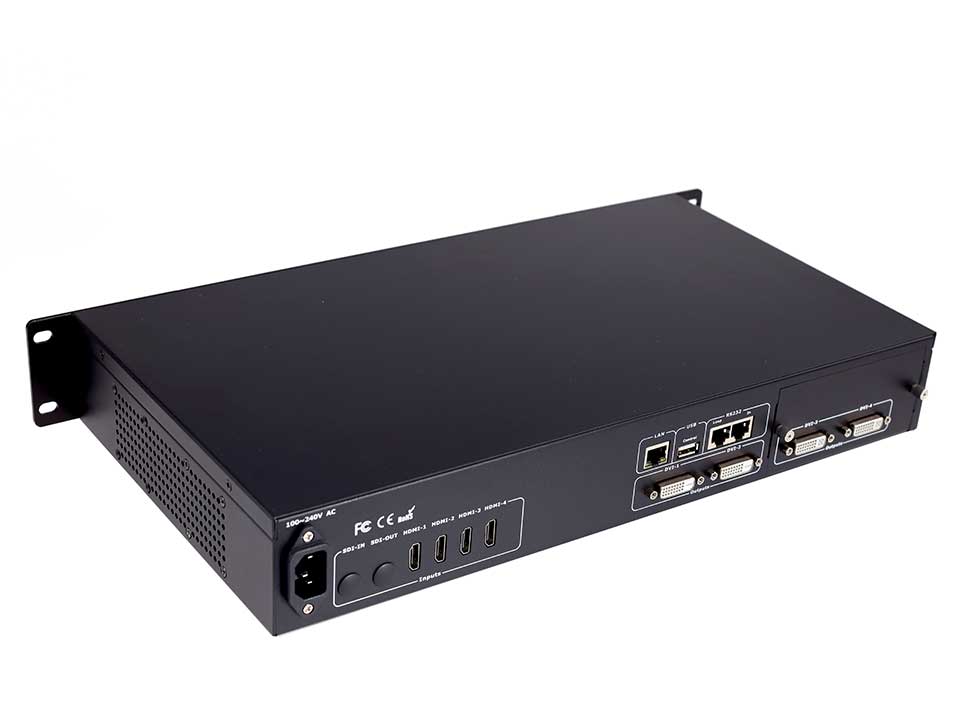

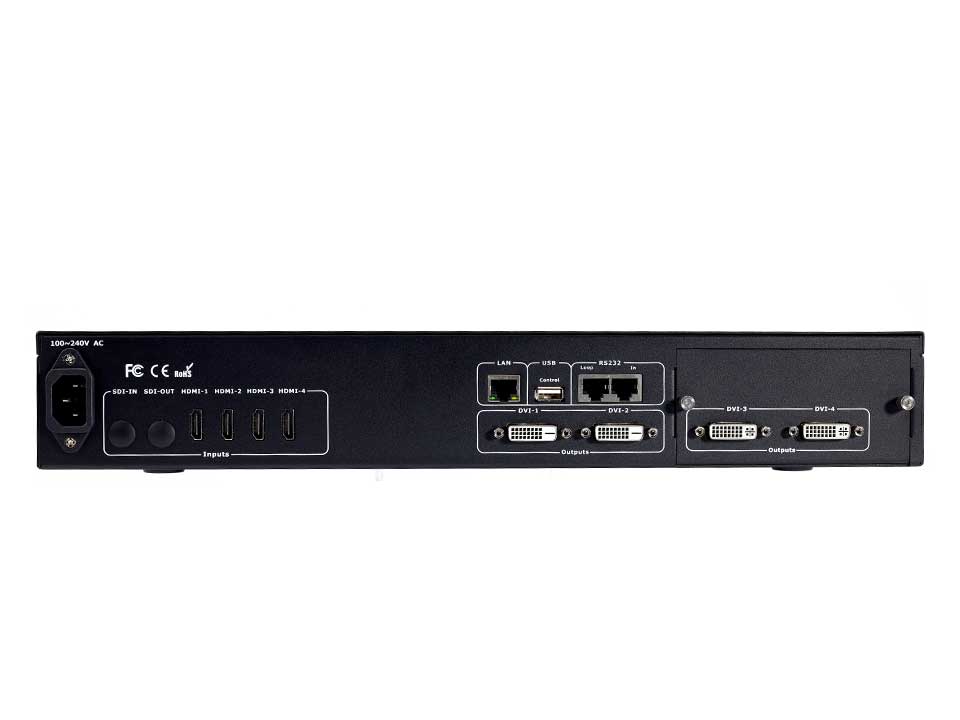

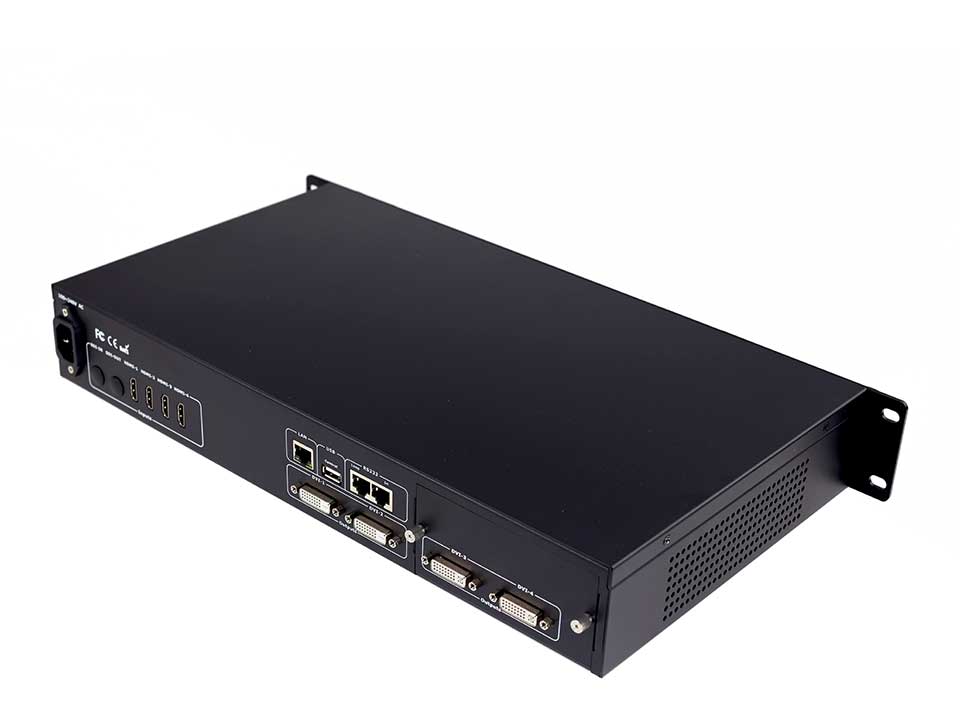

2. I/O Configuration

• Inputs:
  • 4× HDMI 1.4b (CEA-861-D compliant, max 1920×1080@60Hz; DVI-compatible).
• Outputs:
  • 4× DVI (24+1 pin) with preset resolutions (e.g., 3296×644, 2656×798, 1200×1600@60Hz) and custom resolutions (max 3936×3936@60Hz).

3. Technical Parameters

• Power: 100–240V AC, ≤35W consumption.
• Environment: 0–45°C operating temp, 15–85% humidity.
• Dimensions: 482.6×274×66.6mm (1U rack size); weight: 3.6kg (net).
• Reliability: Designed for 24/7 operation.

4. Additional Features

• LED Sending Card Slot: Compatible with third-party LED controllers (optional).
• Ultra-Wide/Tall Resolutions: Supports user-defined output scaling for unconventional display setups.

5. Compliance & Packaging

• Standards: HDMI (CEA-861-D), DVI 1.0.
• Package Size: 535×400×145mm.

Ideal for: Large LED video walls, control rooms, and multi-screen displays requiring real-time processing and synchronization.
