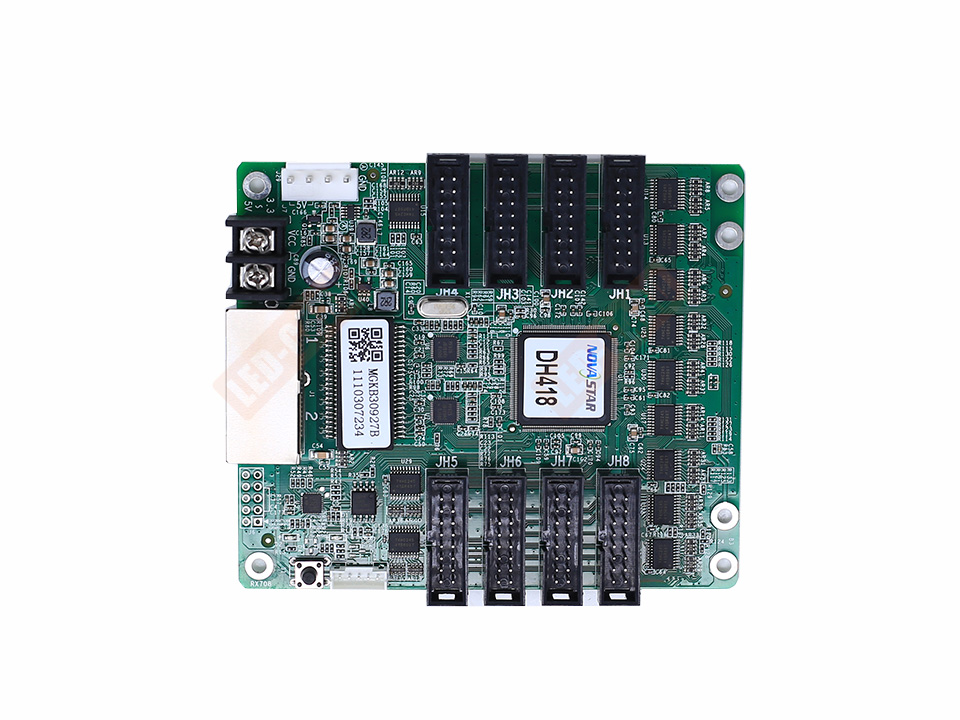

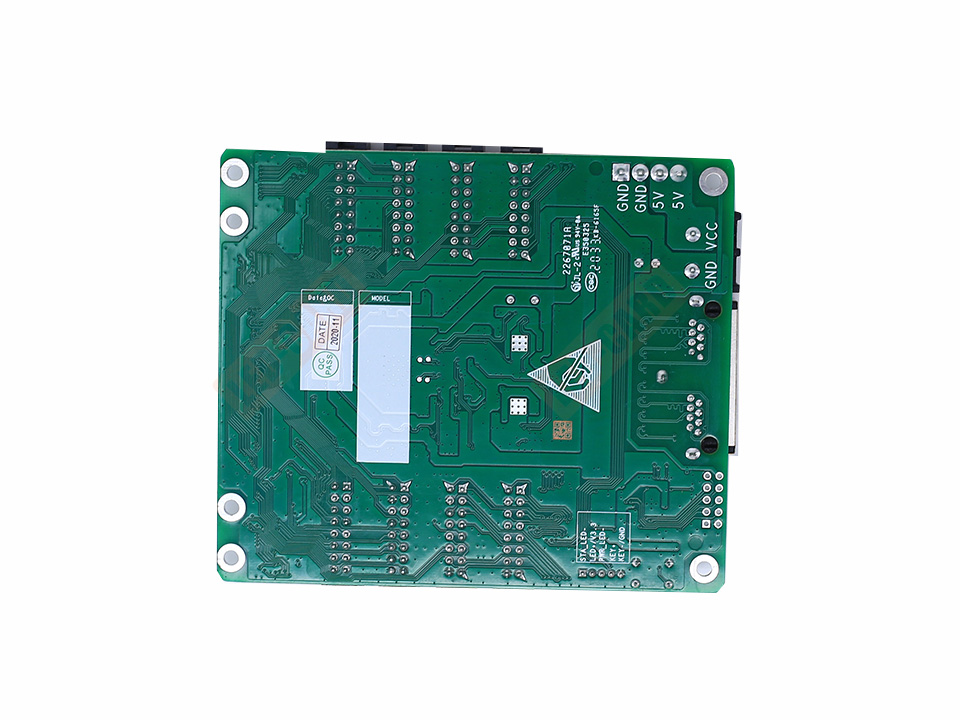

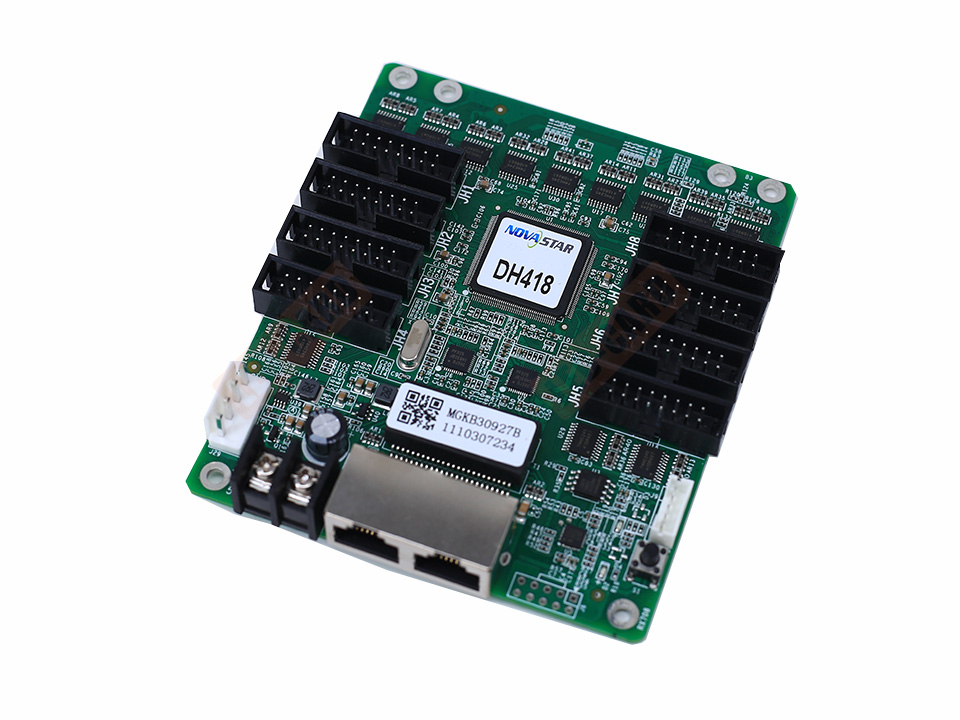

Novastar DH418 LED Receiver Card

Nova star, Nova star
Vergleich
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.

DH418 receiver card with 8 HUB75E interfaces, max 256*256 pixels control.

$19.00 $15.00

Nicht vorrätig

Artikelnummer: DH418 Kategorie: ,

Beschreibung

DH418 is a universal receiving card launched by Novarstar. The maximum load of single card is 256*256 pixels . supports brightness correction, fast line adjustment, 3D and RGB independent gamma adjustment, so as to improve the display effect of the screen, and improve the user experience of dh418 to communicate with 8 standard hub75e interfaces, which has high stability and supports up to 16 sets of RGB well data, Use of words in a variety of field environments.

Input voltage: DC 3.3v-5.5v,
Constant current: 0.5A
Rated power: 2.5W
Consumption temperature: – 20℃- + 70℃
Humidity: 10%RH-90%RH, non condensing
Temperature: – 25 ℃ – + 125 ℃
Size: 95.5mm x 109mm x 18.4mm
Weight: 72.5g
Passed: rohs, EMC class A

Zusätzliche Information

Gewicht 0.2 kg
