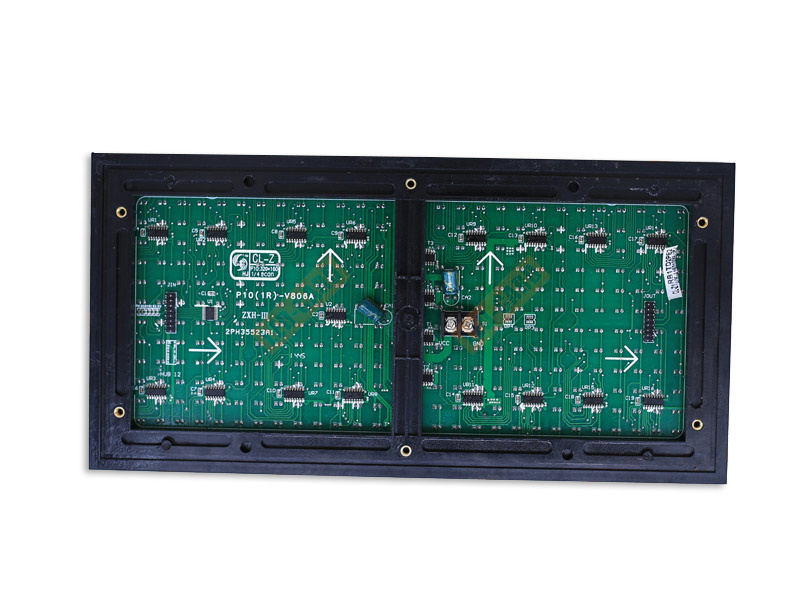

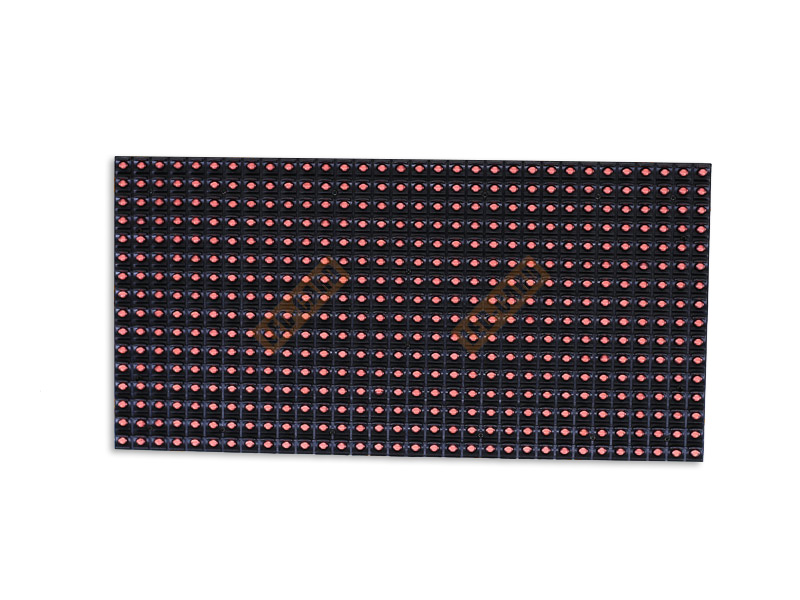

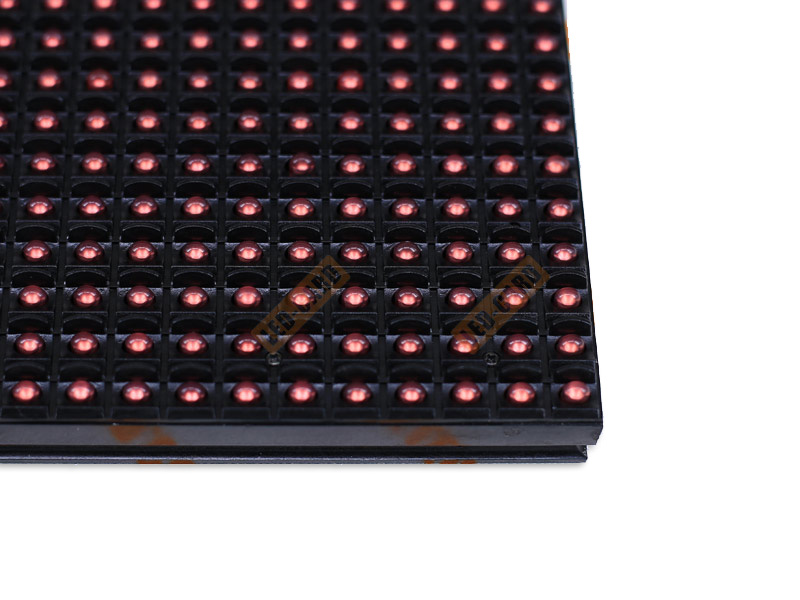

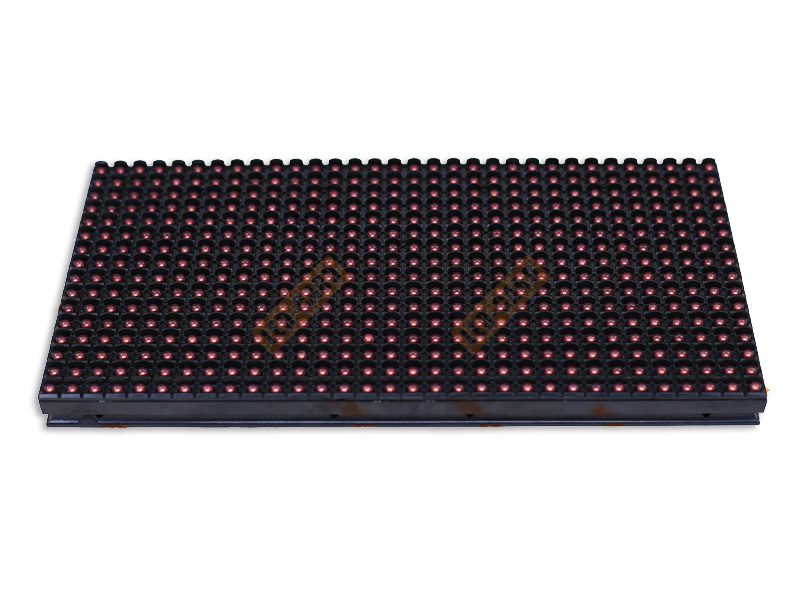

P10 outdoor single RED LED module (40 PCS)

DIP LED module
Compare
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.

Dot Pitch:10mm
Pixel density:10000/m2
Pixel Configuration:1R EPISTAR 8MIL
Module Dimension:320mm(L)*160mm (H)
Module Resolution:32pixel(L)* 16pixel(H)
Viewing Distance:10~25M

$660.00

170 in stock

Description

P10 outdoor single RED color LED module 40 PCS

ITEM
technical parameter
Dot Pitch
10mm
Pixel density
10000/m2
Pixel Configuration
1R EPISTAR 8MIL
Module Dimension
320mm(L)*160mm (H)
Module Resolution
32pixel(L)* 16pixel(H)
Viewing Distance
10~25M
Viewing angle-Horizontal
90°-120° degree
Viewing angle-Vertical
30°-60° degree
Operating temperature
-40°C—+85°C(for storage);-20°C—+50°C (for working)
Max-power consumption
≤300 W/m2
Max power per module
15W
Drive type
1/4 constant current
Video frame rate
>=60(FPS)
Refresh rate
>=180 FPS
LED encapsulation type
346 DIP Style LED
Red wavelength(dominant)
625 nm (+2.5nm/-2.5nm)
Brightness adjusted by
Software (0-100levels adjustable)
Malfunction dot rate (the radio of out of control of all screen)
< 0.0002
Brightness
≥2000 cd/m2
Life-span
100000 hours
MTTF
>=4500 hours
Humidity
10%-99%

You’d better buy all modules at a time for a led screen, in this way, we can make sure that all of them are of the same batch.
For different batch of LED modules have a few differences in RGB rank, color, frame, brightness etc.
So our modules can’t work together with your previous or later modules.
If you have some other special requirements, please contact our online sales.

Additional information

Weight 24 kg
