P10 Outdoor SMD LED Display

SMD LED module
Compare

Module size(mm): 320(L) * 320(H) * 25(D)
Module resolution (pixels): 32(L) * 16(H)
Module quantity in a cabinet: 3(L) * 6(H)
Cabinet size(mm): 960(L)* 960(H)* 160(D)
Cabinet resolution(pixels): 128(L)* 128(H)

$650.00

Out of stock

Description

P10 Outdoor SMD LED Display

1.Pixel
LED type: SMD3535
Pixel configuration: 1R, 1G, 1B
Wave length(nm): R: 622.5-625,G: 522.5-525,B: 465-467.5
Pixel Pitch(mm): 10
2.Module
Module size(mm): 320(L) * 320(H) * 25(D)
Module resolution (pixels): 32(L) * 16(H)

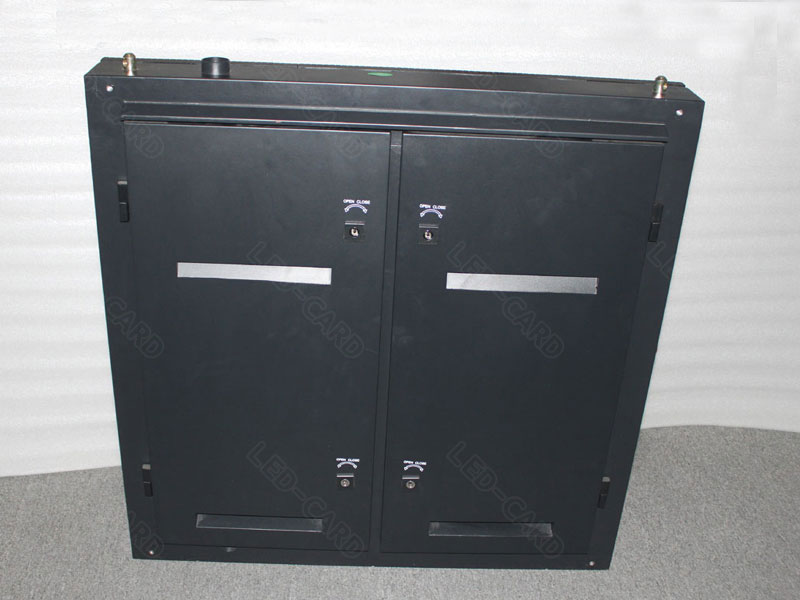

3.Cabinet
Module quantity in a cabinet: 3(L) * 6(H)
Cabinet size(mm): 960(L)* 960(H)* 160(D)
Cabinet resolution(pixels): 128(L)* 128(H)
Cabinet material: Steel
Weight (kg/cabinet): ≈45
4.Packaging
Packing Way: Three cabinets packed into one
Packing box material: Wooden case
Packing box size (mm: ) 1260 * 1060 * 600
5.LED Display Electricity parameter
Density(real): (pixels/m2) 10000
White balance brightness(cd/m2): ≥6500
Color temperature(K): 5000-9300
Brightness adjusted: 100 grades by software, or by Auto-optic induced.
Viewing angle: Horizontal 110°;Vertical 50°
Best viewing distance(m) : 6~200
Communication distance(m: ) Internet Wire:100, Multimode Fiber Cable:500
Driving mode: Constant current, 1/4 duty
Gray grades: 16384 levels for each color
Display color: 4,398,046,511,104
Refresh frequency (Hz): ≥2400
Frame frequency (Hz): ≥60
Picture display method: Dot to dot display synchronized with CRT
Signal interface: DVI
Input signal : Video: PAL/NTSC optioned. VGA, S-video, DVD,TV
Display format: 800 * 600,1024 * 768, 1280 * 1024
Software: Support windows series system
Protection grade: IP65(front); IP54(rear)
Working temperature(oC): -20~+60
Humidity(RH): 10%~90%
Stored temperature (oC) : -30~+70
Screen lifetime(hours): ≥100,000
Out of controlled pixels: ≤1/10,000 (Out of controlled pixels means the pixels of which the brightness and the wave length are both >10% depart to the normal one)
Whole display flatness: Less than 1mm Juncture
Maintenance way : Back-maintained, modules displaced
Switching power supply: 110V/60HZ,220V/50HZ (single phase)
Power consumption (w/m2 ): Max 800, Average: ≈250

More Detail: P10 outdoor LED display Technical Specification (PDF)PDF

Additional information

Weight 45 kg
