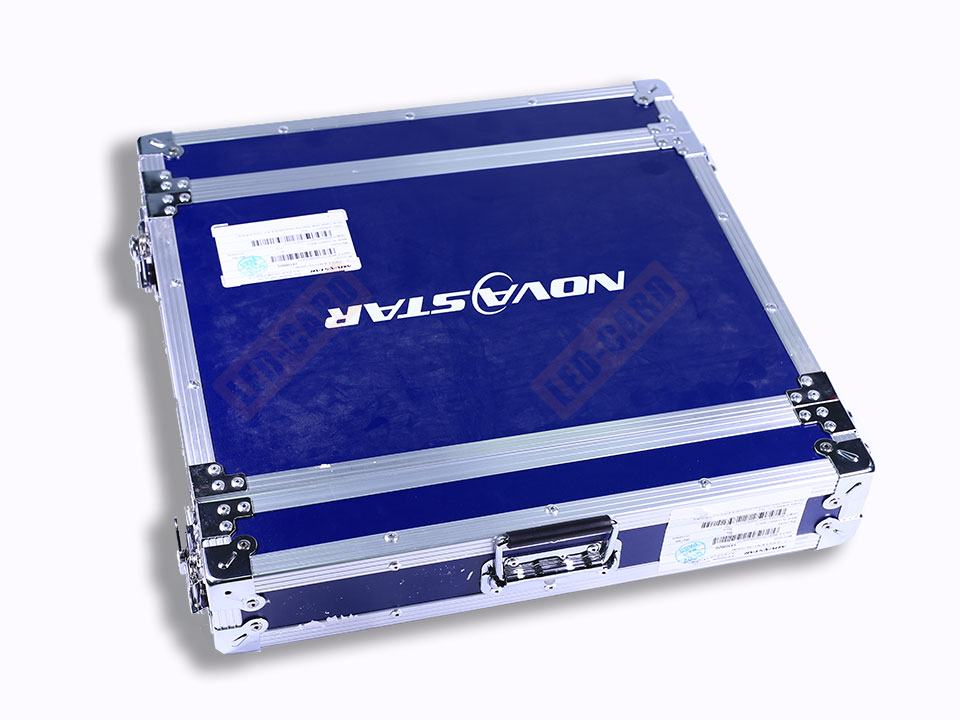

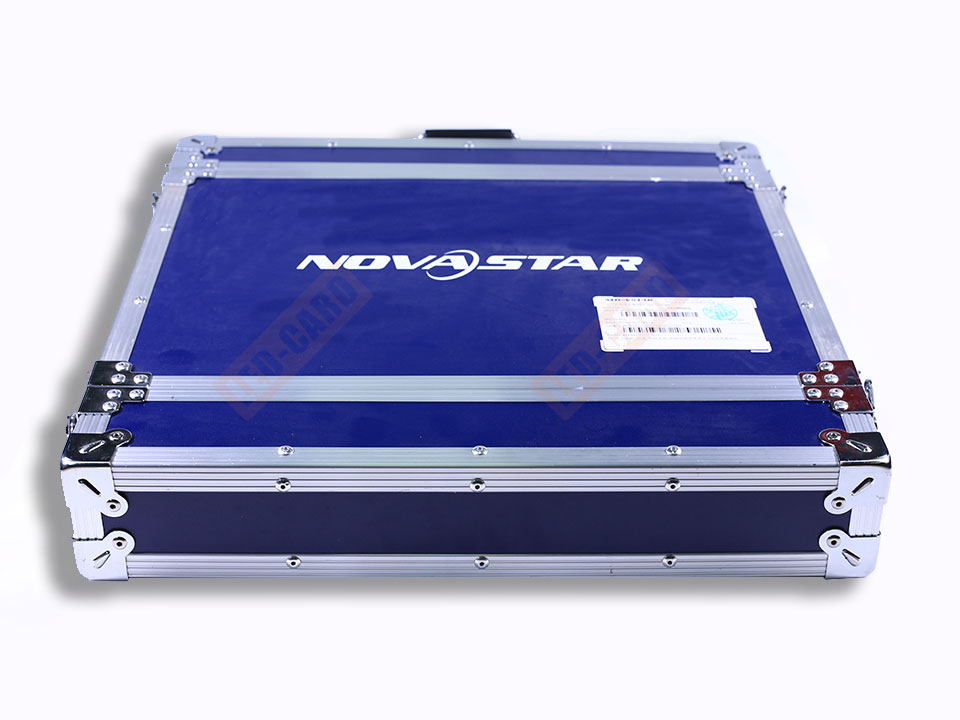

Novastar VX1000 Video Processor with Flightcase.
The VX1000 is NovaStar’s new all-in-one controller that integrates video processing and video control into one box.
VX1000 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch applications.
− 1x HDMI 1.4 (IN & LOOP)
− 1x HDMI 1.4
− 1x DVI (IN & LOOP)
− 1x DVI
− 1x 3G-SDI (IN & LOOP)
− 1x 10G optical fiber port (OPT1)
− 10x Gigabit Ethernet ports
A single device unit drives up to 6.5 million
pixels, with a maximum width of 10,240
pixels and a maximum height of 8192 pixels.
− 2x Fiber outputs
OPT 1 copies the output on 10 Ethernet
OPT 2 copies or backs up the output on 10
− 1x HDMI 1.3
For monitoring or video output
Self-adaptive OPT 1 for either video input or
sending card output
Thanks to the self-adaptive design, OPT 1 can
be used as either an input or output connector,
depending on its connected device.
Audio input and output
− Audio input accompanied with HDMI input
− Audio output via a multifunction card
− Output volume adjustment supported
