T16128R desktop LED display
Matrix LED module
One Order over 500 USD Free of delivery;
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.
Over 1500 USD 5% discount;
Over 3000 USD 10% discount.
Usage: Portable LED Mini Display board.Put on desk, showcase, information counter, shelf in the store, etc.
LED Chip Color :Red
Number of display color: Red Single Color
Pitch (mm): 2.5
$98.00
356 in stock
Description

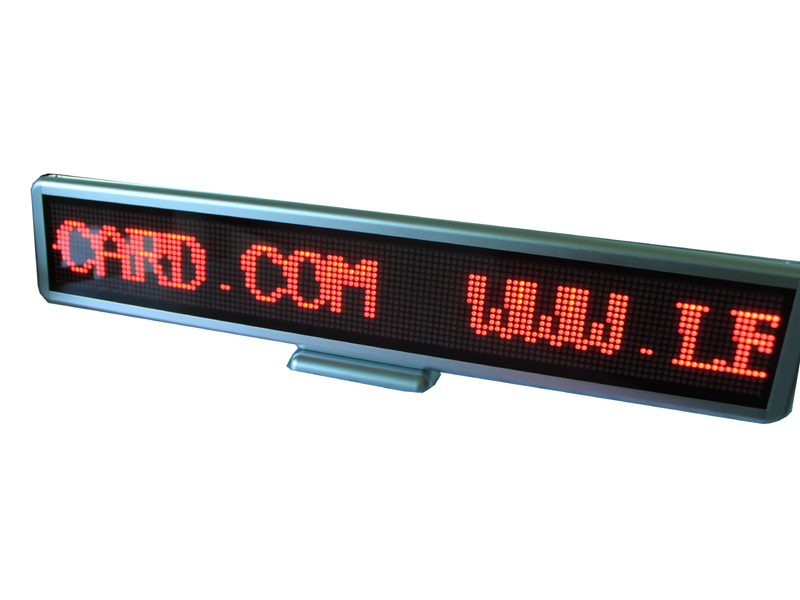

T16128R Desktop LED display
Basic Information
| Usage | Portable LED Mini Display board. Put on desk, showcase, information counter, shelf in the store, etc. |
| LED Chip Color | Red |
| Number of display color | Red Single Color |
| Pitch (mm) | 2.5 |
| Pixels | 16 x 128 |
| Number of LED color chip per pixel | 1 pcs |
| LED Type | SMD |
| Waterproof IP level | IP54 (life level waterproof) |
Dimension
| Frame Size (mm) | 550 x 110 (including 10 mm high Bottom Stand) x 20 |
| Screen Size (mm) | 522 x 76 |
| Module Size (mm) / ea | 32 x 32 mm COB module / 32 ea (2 x 16) |
| Net Weight (Gram, excluding accessories) | 920 |
Features
| Input method | USB Cable from PC / notebook |
| Support Language | English / Chinese (Simple & Traditional) / Japanese / Spanish / German / French / Korean / Thailand / etc.. |
| Max input letters (Western) | 1,500 characters |
| Max input letters (Oriental) | 750 characters |
| Max. number of letters In one screen | Western : 16 (text mode), 24 (graphic mode) Oriental : 8 (text mode), 12 (graphic mode) |
| Display Effects | 5 (Scroll from right to left / Snow / Flash / Hold / Hold with circle) |
| Max Row Lines | 1 |
| Customized Image (BMP) Support | Possible |
| Switch/Port on the body | On/off, Brightness, Message Selection, USB Port (mini-5 pin) |
| Brightness Control | 4 levels (25%, 50%, 75%, 100%) |
| Auto Brightness Control | N/A |
| Clock support | Time / Date / Year / Day / D-day |
| Power Supplying Method | Lithium-Polymer Battery Inside |
| Time for Full Charging | 3~4 Hours |
| Lasting time by Full Charge | 5 ~ 6 Hours at 25% Brightness |
| Charger Type | USB Adapter Enclosed (100~220V AC Input, DC 5V / 1,000 mA Output ) |
| Auto on/off Support | N/A |
| Supporting OS | Window 7, Window Vista, Window XP / 98,/ 2000 |
| Optional Accessories | Tripod Stand, Hand Holder |
Packing
| Packing Size (mm) | 550 x 160 x 50 |
| Accessories Enclosed | LED Board 1 pcs USB Cable (70 cm) 1 pcs USB Adapter 1 pcs CD (program / manual) 1 pcs |
| Packing Picture | (See the picture above) |
| Gross Weight (Gram) | 962 |
Additional information
| Weight | 1.4 kg |
|---|
